ABB 1SDA071932R1 E6.2V 6300 Ekip Dip LSI 4p F HR 150kA Air Circuit Breaker

% $-20,531.02
ABB 1SDA071932R1 E6.2V 6300 Ekip Dip LSI 4P air circuit breaker - 150kA
ABB 1SDA071932R1 E6.2V 6300 Ekip Dip LSI 4P air circuit breaker - 150kA

ABB 1SDA071932R1 E6.2V 6300 Ekip Dip LSI 4p F HR 150kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071932R1
Catalog No: E6.2V 6300 Ekip Dip LSI 4p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 6300
Breaking Capacity: 150 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$20,531.02

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

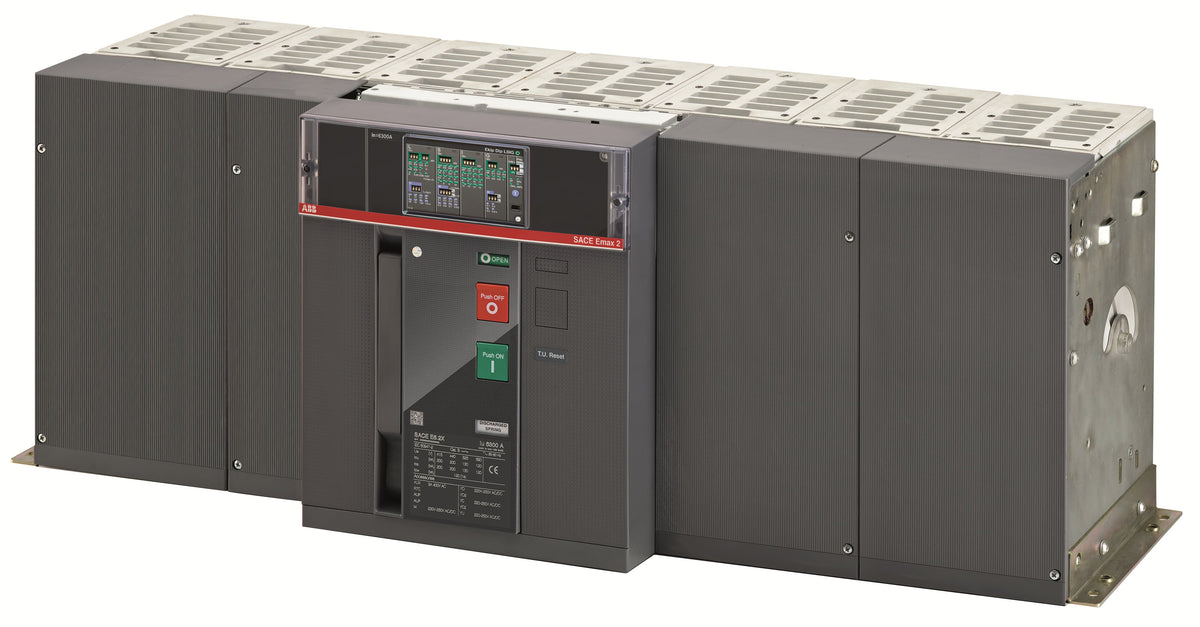

The ABB 1SDA071932R1 is a SACE Emax 2 E6.2V 6300 air circuit breaker with an Ekip Dip LSI electronic release, rated for 6300 A and built as a 4-pole fixed unit with rear horizontal terminals. It delivers an ultimate breaking capacity (Icu) of 150 kA at 400 V AC and a 1-second short-time withstand current (Icw) of 100 kA, suited to high-current main incomer applications.

Technical Specifications

SKU 1SDA071932R1
Brand ABB
Series Emax 2
Catalog Designation E6.2V 6300 Ekip Dip LSI 4p F HR
EAN 8015644757823
Rated Current (In/Iu) 6300 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Number of Poles 4P
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 150 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 150 kA (100% of Icu)
Rated Short-time Withstand Current (Icw) 100 kA / 1s, 100 kA / 3s
Release Ekip Dip LSI
Release Type Electronic (EL)
Short-Circuit Performance Level V
Terminal Connection Type Rear flat horizontal
Terminal Type Bolt, M12
Current Type AC
Power Loss 767 W
Neutral Pole Current 50% of Iu
Dimensions (W x H x D) 888 x 371 x 270 mm
Net Weight 125 kg

Selection Notes

The Ekip Dip LSI release combines long-time overload (L), short-time delay (S) and instantaneous (I) protection, making this E6.2V suited as a main breaker ahead of selectively coordinated downstream devices rather than a feeder position needing earth-fault (G) protection. The 'F HR' designation is a fixed-mounting unit with rear horizontal terminals - choose the withdrawable (W) version instead where the installation needs breaker removal for maintenance without disconnecting the busbar. At 6300 A, this is the top current rating in the E6.2 frame; lower-current variants in the same V (150 kA) performance class cover smaller incomers without oversizing cable and busbar terminations.

Technical Details

Short Description
ABB E6.2V 6300 Ekip Dip LSI 4-pole fixed air circuit breaker, 150 kA at 400 V AC, rear horizontal terminals.
Rated Current (Ampere)
6300
Breaking Capacity (kA)
150 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E6.2V 6300 Ekip Dip LSI 4p F HR
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E6.2V 6300 Ekip Dip LSI 4p F HR
Tariff Code
853620
