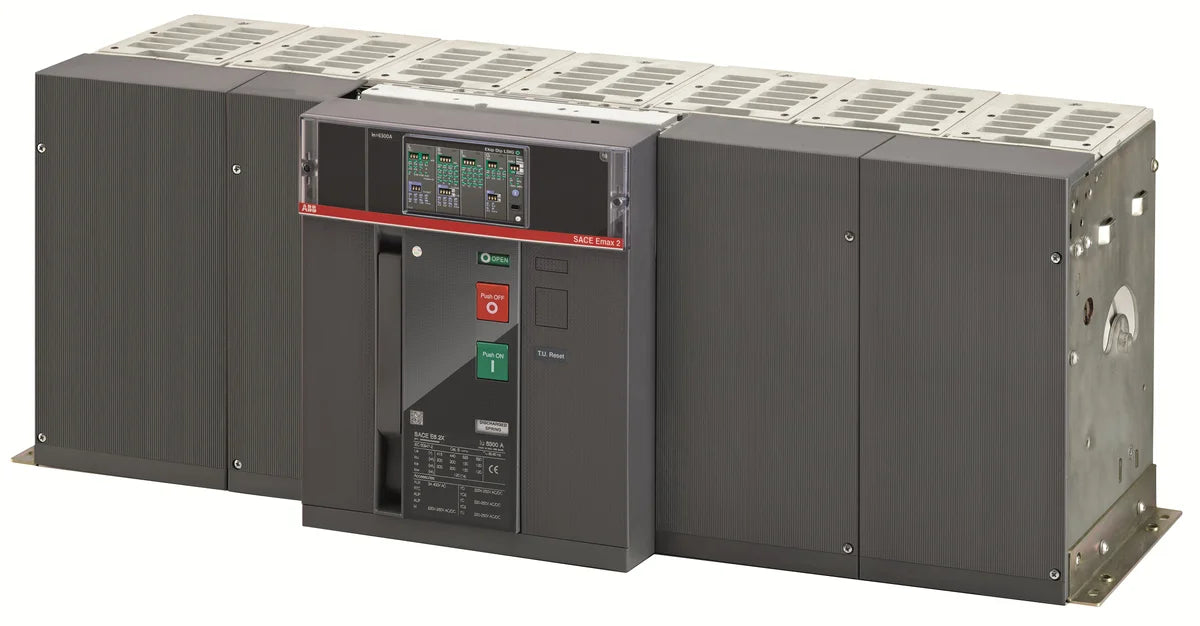

ABB 1SDA071892R1 E6.2H 5000 Ekip Dip LSI 4p F HR 5000A 4P 100kA Air Circuit Breaker

The ABB 1SDA071892R1, catalog number E6.2H 5000 Ekip Dip LSI 4p F HR, is a heavy-duty 5000A 4-pole fixed-mount air circuit breaker from the SACE Emax2 series, delivering a rated breaking capacity of 100 kA at 400V AC. Designed for demanding low-voltage power distribution and industrial switchgear applications, the E6.2H 5000 Ekip Dip LSI 4p F HR integrates the Ekip Dip LSI electronic trip unit for precision overcurrent protection with long-time (L), short-time (S), and instantaneous (I) tripping functions.

Technical Specifications

Certifications & Standards

• CE: Conforms to applicable European Union directives for the European Economic Area
• IEC: Designed and tested in accordance with IEC standards for low-voltage switchgear
• IEC 60947: Compliant with IEC 60947 — Low-voltage switchgear and controlgear
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• Amendment 2015/863: Compliant with RoHS amendment 2015/863 (EU) 2015/863 expanding restricted substance list
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006 on chemical substance safety
• WEEE: Registered under EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
• ATEX: Certified for use in potentially explosive atmospheres per ATEX directive
• UL 2799: Tested and listed to UL 2799 standard for electrical systems
• CSA: Certified by the Canadian Standards Association for North American markets
• VDE: Verified by Verband der Elektrotechnik (VDE) for German and European safety standards

Applications & Use Cases

• Main incoming protection in large-scale industrial switchboards and motor control centres (MCCs)
• Bus coupler and tie-breaker duties in medium-to-large power distribution panels
• Generator and transformer feeder protection in power plants and substations
• Data centre critical power distribution requiring high breaking capacity and precise trip coordination
• Marine and offshore installations where ATEX-rated equipment may be required
• Infrastructure projects including airports, hospitals, and large commercial facilities
