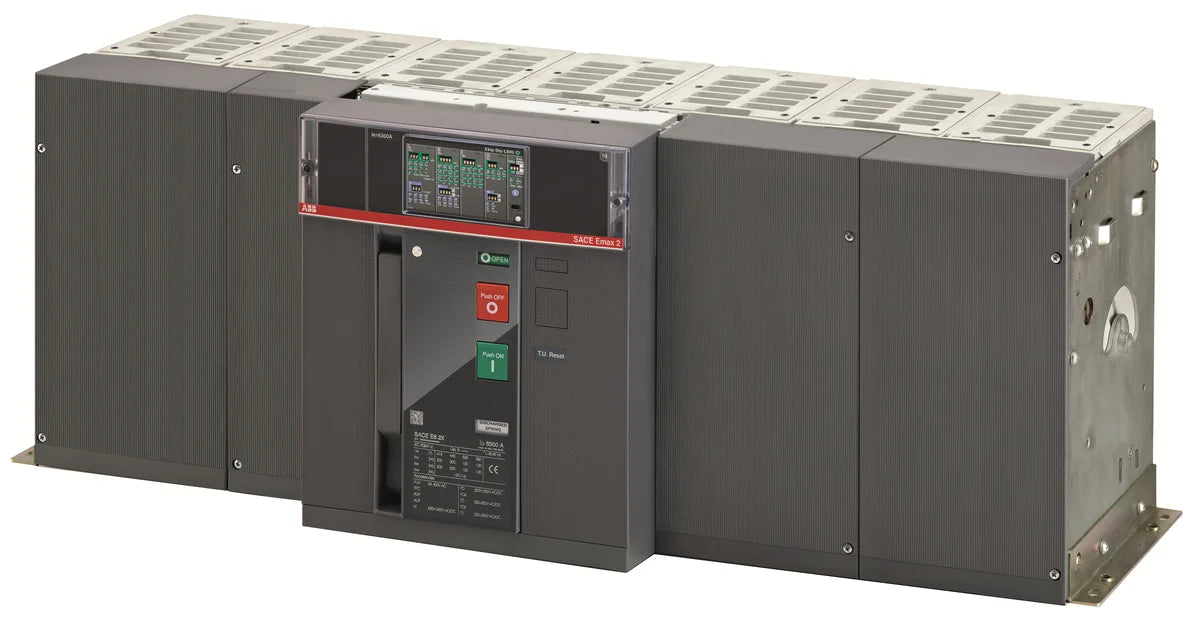

ABB 1SDA071891R1 E6.2H 5000 Ekip Dip LI 4p F HR 5000A 4P 100kA Air Circuit Breaker

The ABB 1SDA071891R1 E6.2H 5000 Ekip Dip LI 4p F HR is a heavy-duty 5000A 4-pole air circuit breaker from the SACE Emax2 series, delivering a rated breaking capacity of 100 kA at 400 V AC. The E6.2H 5000 Ekip Dip LI 4p F HR features a fixed (F) mounting configuration with a high-performance (HR) withdrawable rating, equipped with the Ekip Dip LI electronic trip unit providing overload (L) and short-circuit (I) protection in a robust open-air switchgear format.

Technical Specifications

Certifications & Standards

• CE: Compliant with European CE marking requirements for low-voltage electrical equipment
• IEC: Manufactured and tested in accordance with IEC standards
• IEC 60947: Compliant with IEC 60947 — Low-voltage switchgear and controlgear standard
• UL 2799: Certified to UL 2799 for applicable North American markets
• ATEX: Assessed for use in potentially explosive atmospheres (ATEX directive)
• CSA: Certified to CSA standards for Canadian and North American applications
• VDE: Tested and approved to VDE (Verband der Elektrotechnik) requirements
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical safety
• EU Directive 2011/65/EU: Restriction of Hazardous Substances (RoHS) directive compliance
• Amendment 2015/863: Compliant with RoHS Amendment 2015/863 expanding restricted substance list
• WEEE: Registered and compliant with the Waste Electrical and Electronic Equipment directive

Applications & Use Cases

• Main incomer protection in large industrial distribution boards and main switchboards
• Bus-section and bus-tie switching in medium to large low-voltage switchgear assemblies
• Generator protection and feeder protection in power plants and substations
• Protection of large transformer secondaries in industrial facilities
• Critical infrastructure applications requiring high breaking capacity at 400 V AC
• Marine, oil & gas, and heavy industry installations requiring ATEX-assessed switchgear
