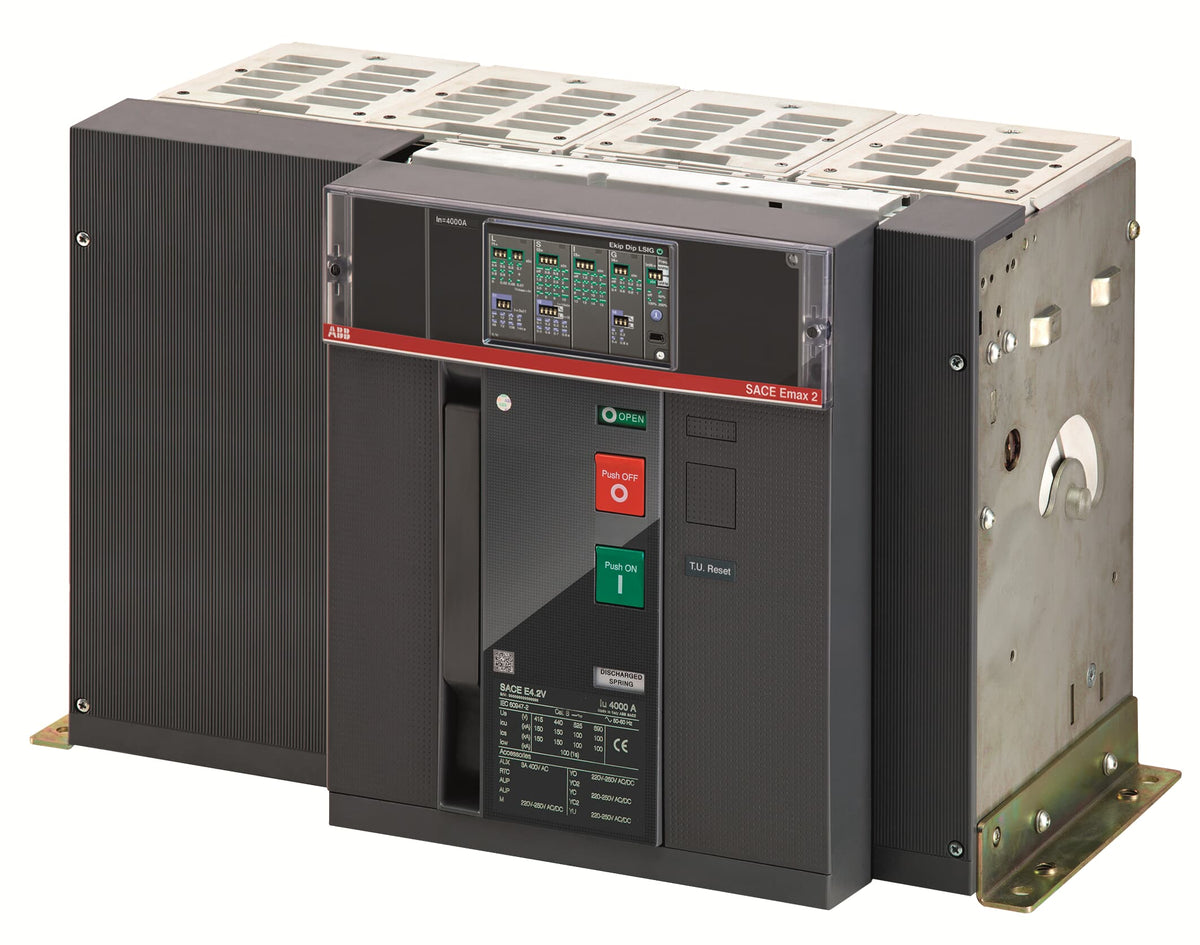

ABB 1SDA071791R1 E4.2H 3200 Ekip Dip LI 4p F HR 100kA Air Circuit Breaker

% $-7,241.48
ABB 1SDA071791R1 E4.2H 3200 Ekip Dip LI 4p F HR Air Circuit Breaker - 100kA
ABB 1SDA071791R1 E4.2H 3200 Ekip Dip LI 4p F HR Air Circuit Breaker - 100kA

ABB 1SDA071791R1 E4.2H 3200 Ekip Dip LI 4p F HR 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071791R1
Catalog No: E4.2H 3200 Ekip Dip LI 4p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 3200
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$7,241.48

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The largest Emax 2 frame appears in the ABB 1SDA071791R1, a fixed, rear-horizontal-terminal four-pole SACE Emax 2 E4.2H Ekip Dip LI air circuit breaker rated 3200 A with 100 kA ultimate breaking capacity at 400 V AC. The H performance level is the highest Icu class offered at this frame size.

Technical Specifications

SKU 1SDA071791R1
Brand ABB
Series SACE Emax 2
Catalog Designation E4.2H 3200 Ekip Dip LI 4p F HR
EAN 8015644756413
Frame E4.2
Breaking Capacity Performance Level H
Rated Current (In) 3200 A
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 100 kA
Service Breaking Capacity (Ics, 400 V AC) 100 kA (100% of Icu)
Short-Time Withstand Current (Icw) 85 kA for 1 s / 66 kA for 3 s
Release / Trip Unit Ekip Dip LI
Version Fixed, rear horizontal terminals
Terminal Connection Rear flat horizontal
Terminal Type Bolted
Connecting Capacity 3000 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 425 W
Net Weight 70 kg
Dimensions (W x H x D) 510 x 371 x 270 mm

Selection Notes

The fixed, rear-horizontal-terminal body and its 425 W power loss - well below the WMP equivalent's 743 W - suit a switchboard built for direct busbar entry rather than a withdrawable arrangement. With the LI release the breaker trips instantaneously on a short circuit, so it fits a sub-main or final position better than a main incomer that must stay closed through a downstream fault; the LSI-equipped 1SDA071792R1 in the same F HR body covers that case. At 100 kA Icu and a switched neutral, it is sized for the largest boards in the Emax 2 range.

Technical Details

Short Description
ABB 1SDA071791R1 - SACE Emax 2 E4.2H 3200 Ekip Dip LI 4p F HR, 3200 A, 100 kA Icu at 400 V AC, rear horizontal terminals.
Rated Current (Ampere)
3200
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed, Rear Horizontal Terminals
Catalog No
E4.2H 3200 Ekip Dip LI 4p F HR
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E4.2H 3200 Ekip Dip LI 4p F HR
Tariff Code
853620
