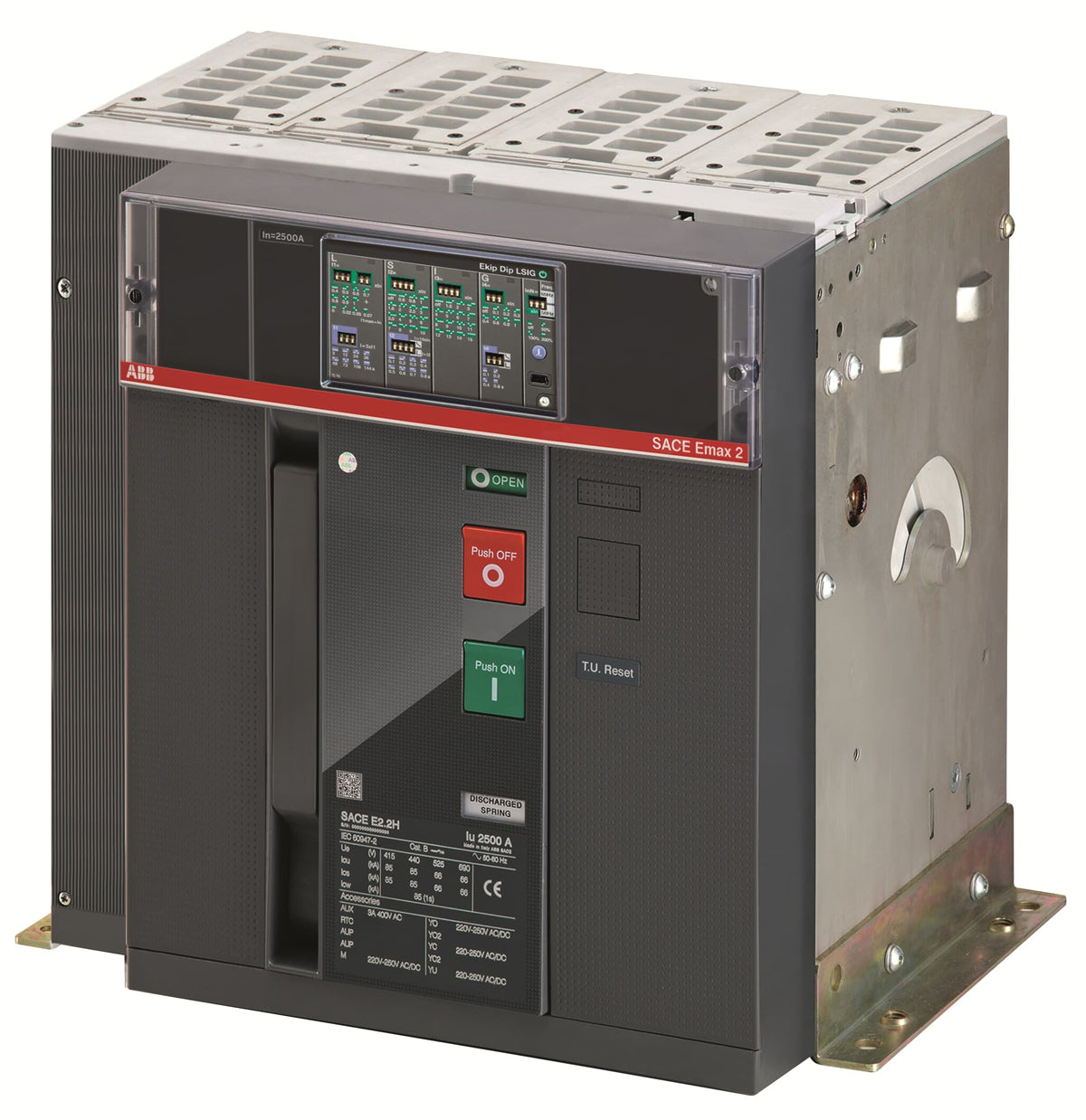

ABB 1SDA071671R1 E2.2S 2000 Ekip Dip LI 4p F HR 85kA Air Circuit Breaker

% $-4,462.12
ABB 1SDA071671R1 E2.2S 2000 Ekip Dip LI 4p F HR Air Circuit Breaker - 85kA
ABB 1SDA071671R1 E2.2S 2000 Ekip Dip LI 4p F HR Air Circuit Breaker - 85kA

ABB 1SDA071671R1 E2.2S 2000 Ekip Dip LI 4p F HR 85kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071671R1
Catalog No: E2.2S 2000 Ekip Dip LI 4p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2000
Breaking Capacity: 85 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,462.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Fixed, rear-horizontal-terminal four-pole breaker 1SDA071671R1 belongs to the SACE Emax 2 E2.2S 2000 Ekip Dip LI range: 2000 A rated current and 85 kA ultimate breaking capacity at 400 V AC. Unlike the withdrawable WMP versions, it bolts directly into the switchboard with no separate cradle.

Technical Specifications

SKU 1SDA071671R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2S 2000 Ekip Dip LI 4p F HR
EAN 8015644755218
Frame E2.2
Breaking Capacity Performance Level S
Rated Current (In) 2000 A
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 85 kA
Service Breaking Capacity (Ics, 400 V AC) 85 kA (100% of Icu)
Short-Time Withstand Current (Icw) 66 kA for 1 s / 50 kA for 3 s
Release / Trip Unit Ekip Dip LI
Version Fixed, rear horizontal terminals
Terminal Connection Rear flat horizontal
Terminal Type Bolted
Connecting Capacity 1800 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 212 W
Net Weight 53 kg
Dimensions (W x H x D) 366 x 371 x 270 mm

Selection Notes

The fixed, rear-horizontal-terminal body suits a switchboard built for direct busbar entry from behind the breaker, and its 212 W power loss is well below the equivalent WMP unit because there is no plug-in contact system to add resistance. The LI release trips instantaneously on a short circuit with no timed short-time stage, so it is suited to a final or sub-main position rather than an incomer that must stay closed through a downstream fault - the LSI-equipped sibling covers that role. At 85 kA Icu and 66 kA/1 s Icw, it sits in the same S performance class as the WMP versions of this frame.

Technical Details

Short Description
ABB 1SDA071671R1 - SACE Emax 2 E2.2S 2000 Ekip Dip LI 4p F HR, 2000 A, 85 kA Icu at 400 V AC, rear horizontal terminals.
Rated Current (Ampere)
2000
Breaking Capacity (kA)
85 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed, Rear Horizontal Terminals
Catalog No
E2.2S 2000 Ekip Dip LI 4p F HR
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2S 2000 Ekip Dip LI 4p F HR
Tariff Code
853620

Downloads

Customers say

Pairs well with

Related products
