ABB 1SDA071641R1 E2.2H 1600 Ekip Dip LI 4p F HR 100kA Air Circuit Breaker

% $-4,303.42

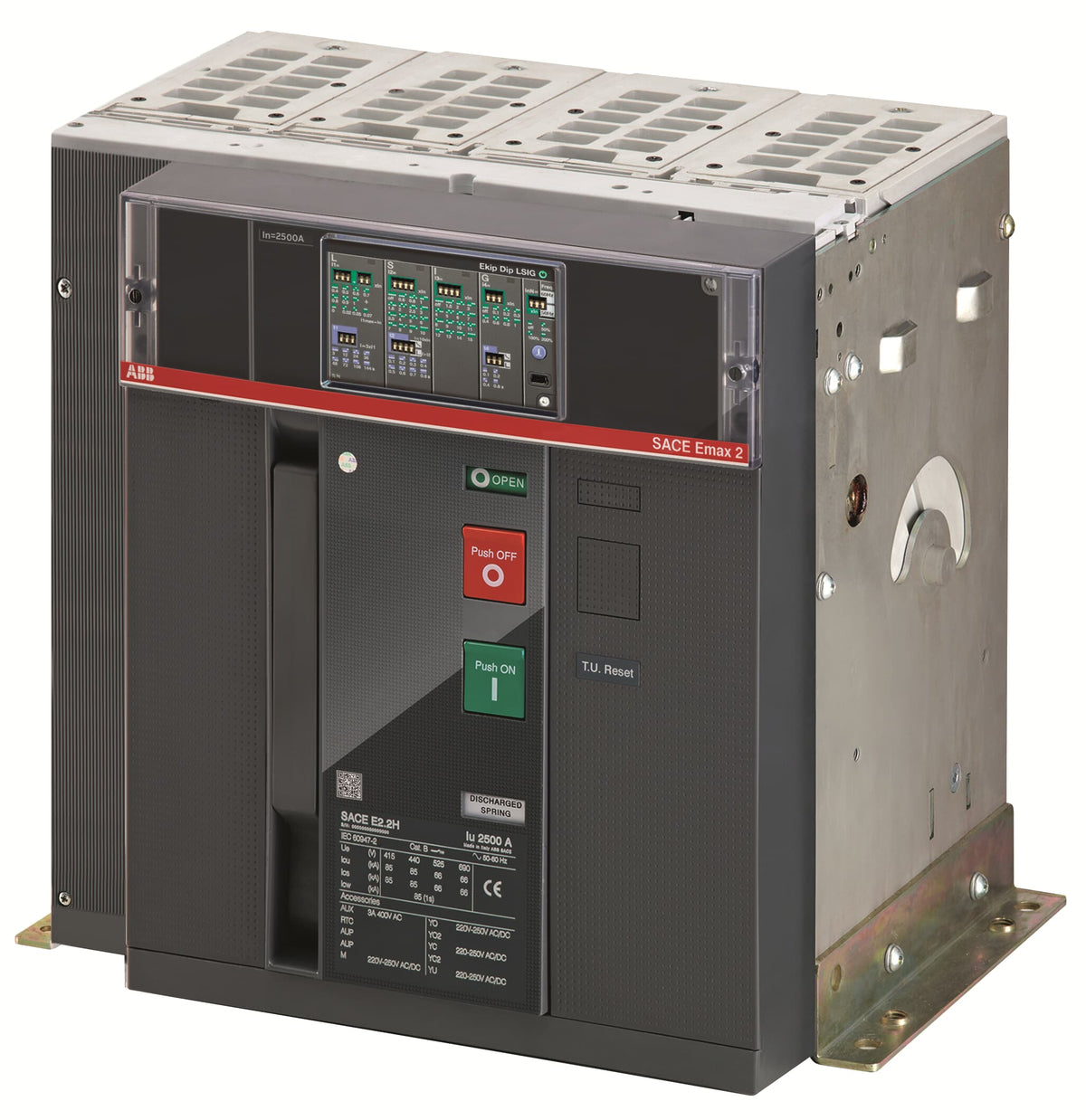

ABB 1SDA071641R1 E2.2H 1600 Ekip Dip LI 4p F HR Air Circuit Breaker - 100 kA Icu
ABB 1SDA071641R1 E2.2H 1600 Ekip Dip LI 4p F HR Air Circuit Breaker - 100 kA Icu

ABB 1SDA071641R1 E2.2H 1600 Ekip Dip LI 4p F HR 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071641R1
Catalog No: E2.2H 1600 Ekip Dip LI 4p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,303.42

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

With four poles and a 1600 A rating, the ABB 1SDA071641R1 is a SACE Emax 2 E2.2H Ekip Dip LI air circuit breaker, fixed version with rear horizontal terminals. It delivers a 100 kA breaking capacity (Icu) at 400 V AC and an 85 kA short-time withstand (Icw) for 1 s, with the fourth pole switching the neutral in four-wire 690 V AC systems.

Technical Specifications

Catalog Designation E2.2H 1600 Ekip Dip LI 4p F HR
SKU / Order Code 1SDA071641R1
Brand ABB
Series SACE Emax 2 (E2.2 frame, performance level H)
EAN 8015644754914
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Uninterrupted Current (Iu / In) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV, acc. to IEC 60947-2
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 100 kA at 400-440 V AC; 85 kA at 500-690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 100 kA at 220-440 V AC; 85 kA at 500-690 V AC (100% of Icu)
Rated Short-time Withstand Current (Icw) 85 kA for 1 s, 66 kA for 3 s
Release / Trip Unit Ekip Dip LI (electronic)
Short-Circuit Performance Level H
Version Fixed
Terminal Connection Type Rear flat, horizontal
Terminal Type Bolt
Connecting Capacity 1200 mm²
Power Loss 136 W
Net Weight 53 kg
Dimensions (W x H x D) 366 x 371 x 270 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

The fourth pole on this fixed, rear-horizontal version switches the neutral, distinguishing it from the three-pole version for four-wire 690 V AC distribution. At 1600 A, Icu reaches 100 kA with an 85 kA Icw for 1 s, the E2.2H frame's full short-circuit performance. The LI release trips instantaneously rather than holding a short-time delay stage.

Technical Details

Short Description
ABB 1SDA071641R1 - SACE Emax 2 E2.2H 1600 Ekip Dip LI 4p F HR, 1600A, 100 kA Icu at 400 V AC.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E2.2H 1600 Ekip Dip LI 4p F HR
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2H 1600 Ekip Dip LI 4p F HR
Tariff Code
853620
