ABB 1SDA071612R1 E2.2B 1600 Ekip Dip LSI 4p F HR 42kA Air Circuit Breaker

% $-3,344.34
ABB 1SDA071612R1 E2.2B 1600 Ekip Dip LSI 4p F HR Air Circuit Breaker - 42 kA Icu
ABB 1SDA071612R1 E2.2B 1600 Ekip Dip LSI 4p F HR Air Circuit Breaker - 42 kA Icu

ABB 1SDA071612R1 E2.2B 1600 Ekip Dip LSI 4p F HR 42kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071612R1
Catalog No: E2.2B 1600 Ekip Dip LSI 4p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 42 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,344.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

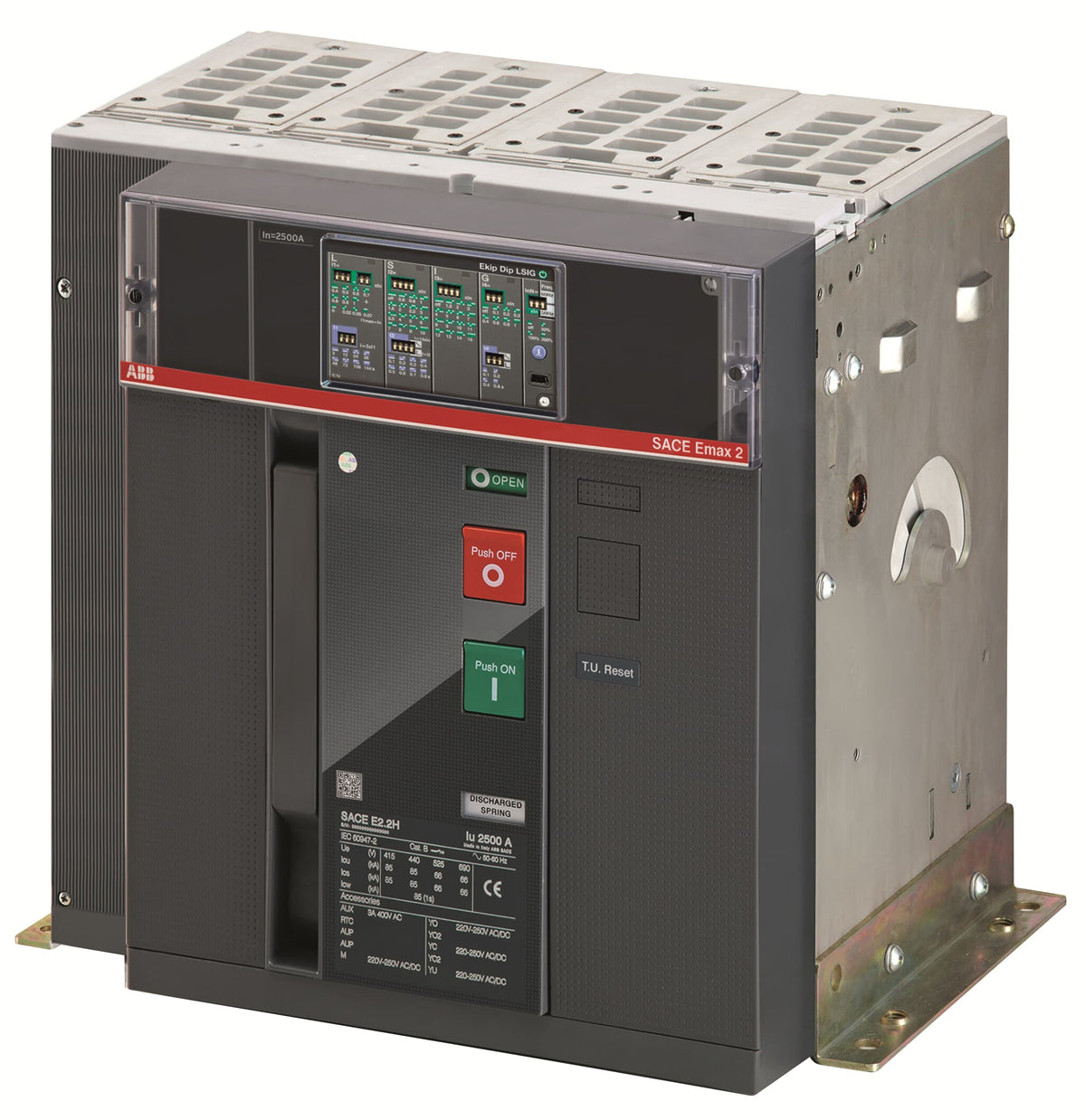

Four-pole and rated 1600 A, the ABB 1SDA071612R1 is a SACE Emax 2 E2.2B Ekip Dip LSI air circuit breaker in fixed form with rear horizontal terminals. Breaking capacity (Icu) reaches 42 kA at 400 V AC, with a matching 42 kA short-time withstand (Icw) for both 1 s and 3 s. The fourth pole switches the neutral for four-wire 690 V AC distribution.

Technical Specifications

Catalog Designation E2.2B 1600 Ekip Dip LSI 4p F HR
SKU / Order Code 1SDA071612R1
Brand ABB
Series SACE Emax 2 (E2.2 frame, performance level B)
EAN 8015644754624
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Uninterrupted Current (Iu / In) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV, acc. to IEC 60947-2
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 42 kA at 400-690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 42 kA at 220-440 V AC (100% of Icu)
Rated Short-time Withstand Current (Icw) 42 kA for 1 s and 3 s
Release / Trip Unit Ekip Dip LSI (electronic)
Short-Circuit Performance Level B
Version Fixed
Terminal Connection Type Rear flat, horizontal
Terminal Type Bolt
Connecting Capacity 1200 mm²
Power Loss 136 W
Net Weight 53 kg
Dimensions (W x H x D) 366 x 371 x 270 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

The fourth pole on this version switches the neutral conductor, making it the choice over the three-pole fixed version for four-wire 690 V AC distribution where the neutral needs isolation along with the phases. Icu holds at 42 kA with a 42 kA Icw sustained for 3 s, and the LSI release's short-time delay stage supports selective coordination with downstream devices. Fixed, rear-horizontal terminals mean no separate cradle is needed for this 1600 A unit.

Technical Details

Short Description
ABB 1SDA071612R1 - SACE Emax 2 E2.2B 1600 Ekip Dip LSI 4p F HR, 1600A, 42 kA Icu at 400 V AC.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
42 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E2.2B 1600 Ekip Dip LSI 4p F HR
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2B 1600 Ekip Dip LSI 4p F HR
Tariff Code
853620
