ABB 1SDA071301R1 E6.2V 6300 Ekip Dip LI 3p F HR 150kA Air Circuit Breaker

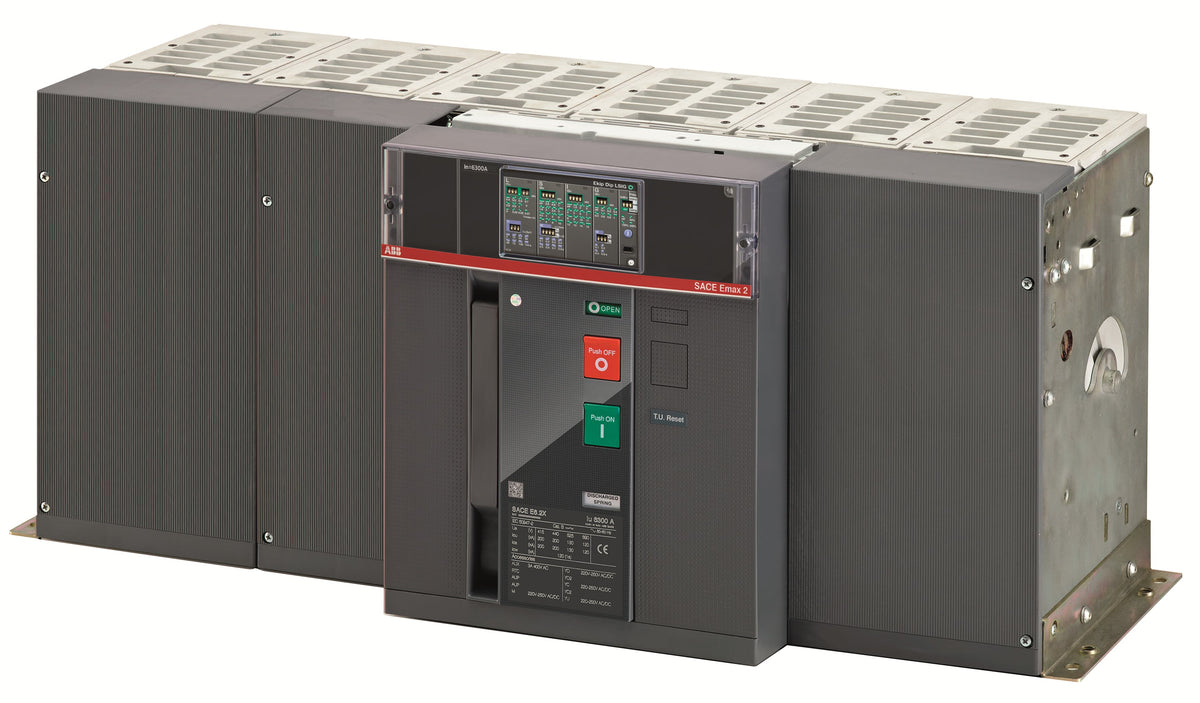

ABB order code 1SDA071301R1 covers the E6.2V 6300 Ekip Dip LI 3p F HR air circuit breaker — a non-withdrawable, 3-pole SACE Emax 2 unit rated 6300 A with a 150 kA breaking capacity at 400 V AC, fixed to the panel with rear horizontal terminals and protected by the Ekip Dip LI electronic release up to 690 V AC.

Technical Specifications

Selection Notes

This fixed E6.2V unit, rated 6300 A with 150 kA breaking capacity, bolts directly to rear horizontal busbars. Its Ekip Dip LI release covers only L (overload, long-time), I (instantaneous), with no settable short-time delay. That makes it a faster-clearing choice for outgoing feeder positions where selective coordination with a smaller breaker is not required. Where the installation needs the breaker to ride through a downstream fault for selectivity, the Ekip Dip LSI sibling at the same 6300 A rating adds that S-function delay. The V performance level pushes Icu to 150 kA at 400-440 V AC (dropping to 130 kA at 500-525 V and 100 kA at 690 V), a step above the H-class sibling's flat 100 kA across the same voltage range — worth the difference only where the prospective fault current at this busbar actually exceeds 100 kA.
