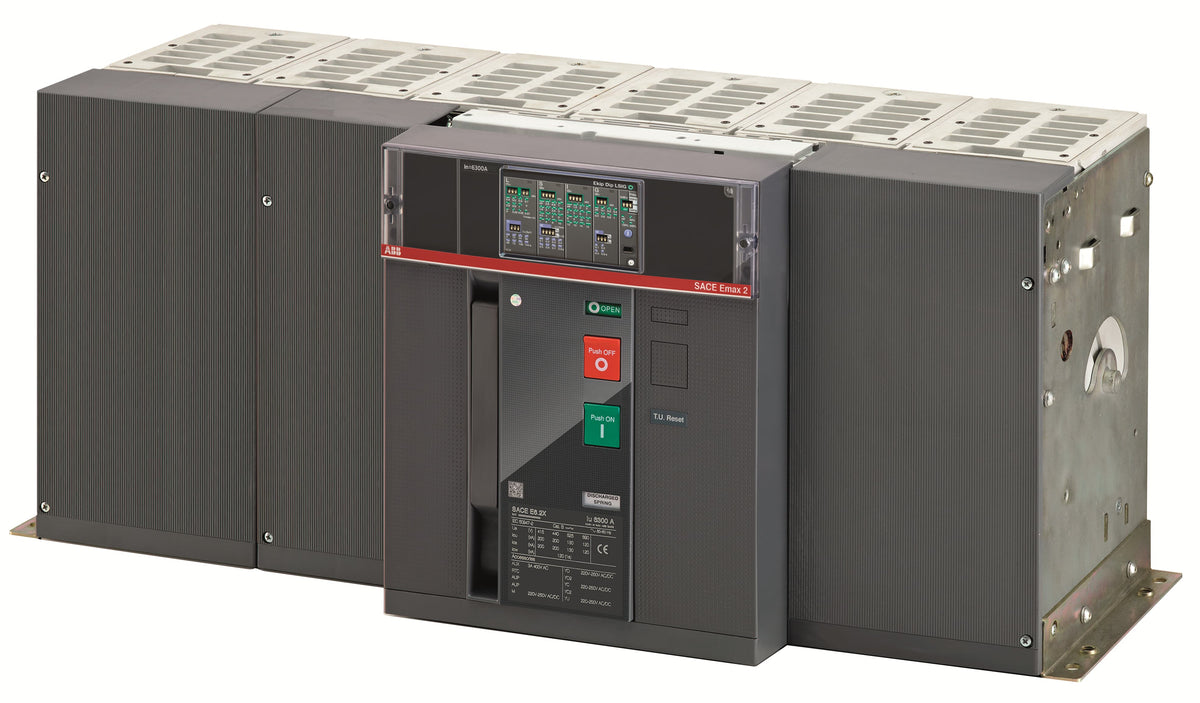

SACE Emax 2 E6.2V ACB, 5000 A, 150 kA Icu, 3-pole, Ekip Dip LSI, Fixed Rear Horizontal.
Bolted straight to the busbars through rear horizontal terminals, the ABB 1SDA071272R1 is a fixed SACE Emax 2 E6.2V air circuit breaker rated 5000 A, 3-pole, with a 150 kA breaking capacity at 400 V AC. Its Ekip Dip LSI electronic release covers the full 690 V AC operating range.
Bolted to the busbars via rear horizontal terminals, this 5000 A E6.2V breaker delivers 150 kA breaking capacity. Its Ekip Dip LSI release is the three-function version — L (overload, long-time), S (short-time delay), I (instantaneous) — so the breaker can hold a developing downstream fault open long enough for a smaller device to trip first. That selectivity makes it the right choice for an incomer or bus-tie, not a feeder end-point; where instantaneous clearing matters more than selectivity, the Ekip Dip LI sibling at the same 5000 A rating is the one to specify. Its V-class short-circuit performance level raises Icu to 150 kA between 400 and 440 V AC, tapering to 130 kA at 500-525 V and 100 kA at 690 V — specify it over the H-class sibling's flat 100 kA only when the calculated prospective fault current calls for that extra margin.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Width | 762 mm |
|---|---|
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 109 kg |
| Product Main Type | SACE Emax 2 |
|---|---|
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Part number | 1SDA071272R1 |
|---|---|
| Type designation | E6.2V |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644751227 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Connecting Capacity | 5000 mm² |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 3000 cycle, Ue = 500 ... 690 V 2000 cycle, 10 cycles per hour |
| Mechanical Durability | 12000 cycle, 60 cycles per hour |
| Number of Poles | 3P |
| Power Loss | 483 W |
| Rated Current (In) | 5000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA, (230 V AC) 150 kA, (380 V AC) 150 kA, (400 V AC) 150 kA, (415 V AC) 150 kA, (440 V AC) 150 kA, (500 V AC) 130 kA, (660 V AC) 100 kA, (690 V AC) 100 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA, for 3 s 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA, (415 V AC) 150 kA, (440 V AC) 150 kA, (500 V AC) 130 kA, (525 V AC) 130 kA, (690 V AC) 100 kA |
| Rated Uninterrupted Current (Iu) | 5000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E6.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1000 mm |
| Package Level 1 Gross Weight | 118 kg |
| Package Level 1 EAN | 8015644751227 |
| Shipping weight | 109.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 02 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of E6.2V is 5000 A.
The rated operational voltage of E6.2V is 690 V AC.
The tariff (HS) code on file for E6.2V is 853620.
The EAN (GTIN) of E6.2V is 8015644751227.
E6.2V ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
