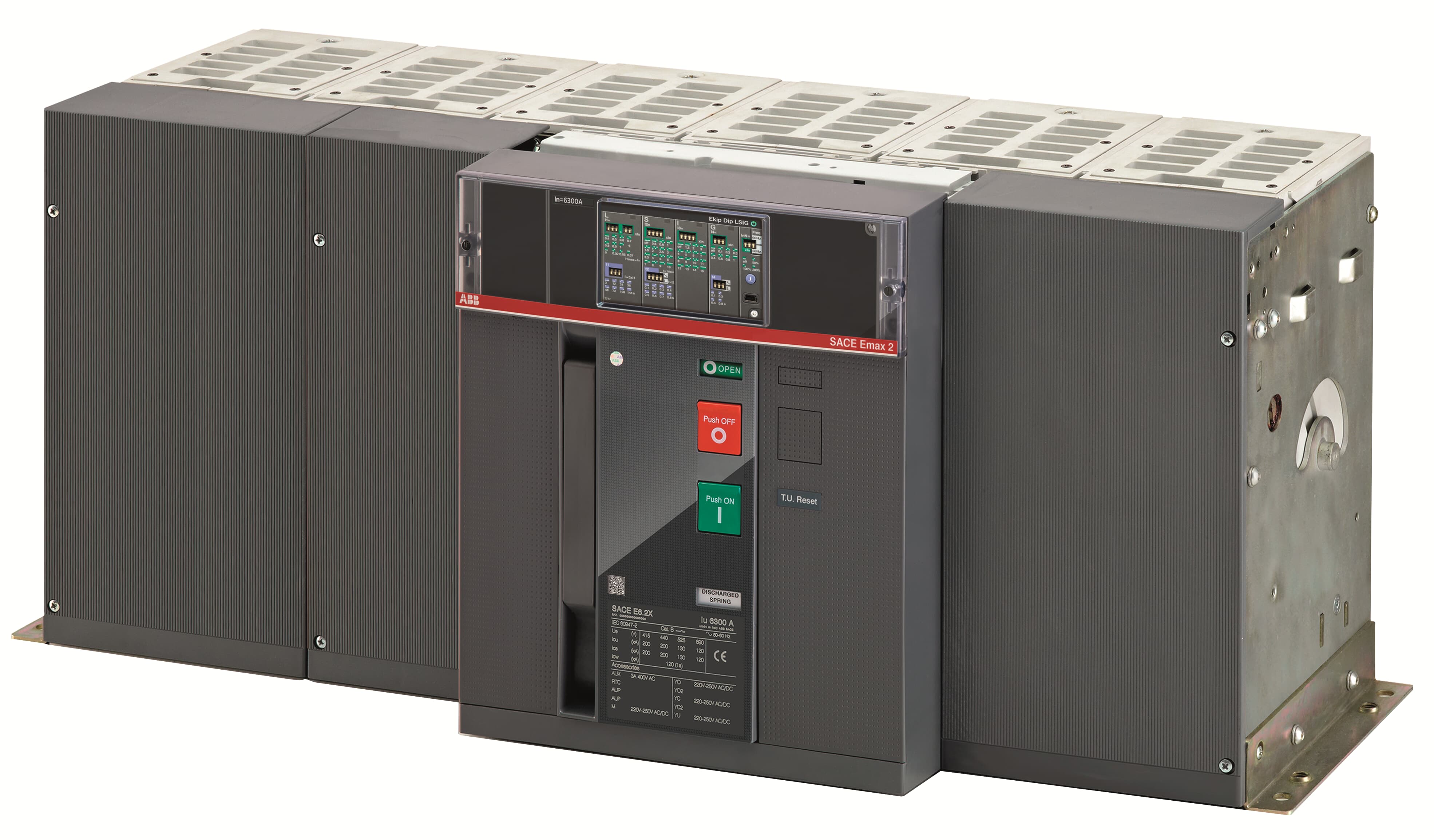

ABB 1SDA071262R1 E6.2H 5000 Ekip Dip LSI 3p F HR 5000A 3P 100kA Power Circuit Breaker

The ABB 1SDA071262R1 E6.2H 5000 Ekip Dip LSI 3p F HR is a high-performance 5000 A, 3-pole fixed-mount power circuit breaker from the SACE Emax2 series, rated for a breaking capacity of 100 kA at 400 V AC. Designed for transformer, generator, and installation protection, the E6.2H 5000 Ekip Dip LSI 3p F HR delivers advanced Ekip Dip LSI (Long-time, Short-time, Instantaneous) protection with the robustness and reliability demanded by critical power distribution applications.

Technical Specifications

Certifications & Standards

• CE: Compliant with applicable European Union directives for electrical equipment
• IEC: Designed and tested to IEC standards for low-voltage switchgear and controlgear
• UL 2799: Certified to UL 2799 standard requirements
• ATEX: Suitable for use in potentially explosive atmospheres per ATEX directive
• CSA: Certified to Canadian Standards Association requirements
• VDE: Tested and certified by VDE, the German Association for Electrical, Electronic & Information Technologies
• RoHS: Compliant with EU Directive 2011/65/EU (RoHS) on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical safety
• EU Directive 2011/65/EU & Amendment 2015/863: Meets the latest RoHS amendment requirements restricting additional hazardous substances
• WEEE: Compliant with the EU Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

• Main incoming protection for large transformers and generators in industrial power distribution systems
• Bus coupler and feeder protection in medium-to-large switchboards and distribution boards
• Critical infrastructure installations including data centres, hospitals, and industrial plants requiring high breaking capacity
• Marine and offshore power systems where ATEX and international certification is mandatory
• Heavy industries such as steel, mining, oil & gas, and chemical processing requiring 5000 A rated protection
