ABB 1SDA071222R1 E4.2V 4000 Ekip Dip LSI 3p F HR 150kA Air Circuit Breaker

% $-9,258.56
ABB 1SDA071222R1 E4.2V 4000 Ekip Dip LSI 3p F HR Air Circuit Breaker - 150 kA Icu
ABB 1SDA071222R1 E4.2V 4000 Ekip Dip LSI 3p F HR Air Circuit Breaker - 150 kA Icu

ABB 1SDA071222R1 E4.2V 4000 Ekip Dip LSI 3p F HR 150kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071222R1
Catalog No: E4.2V 4000 Ekip Dip LSI 3p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 4000
Breaking Capacity: 150 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$9,258.56

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

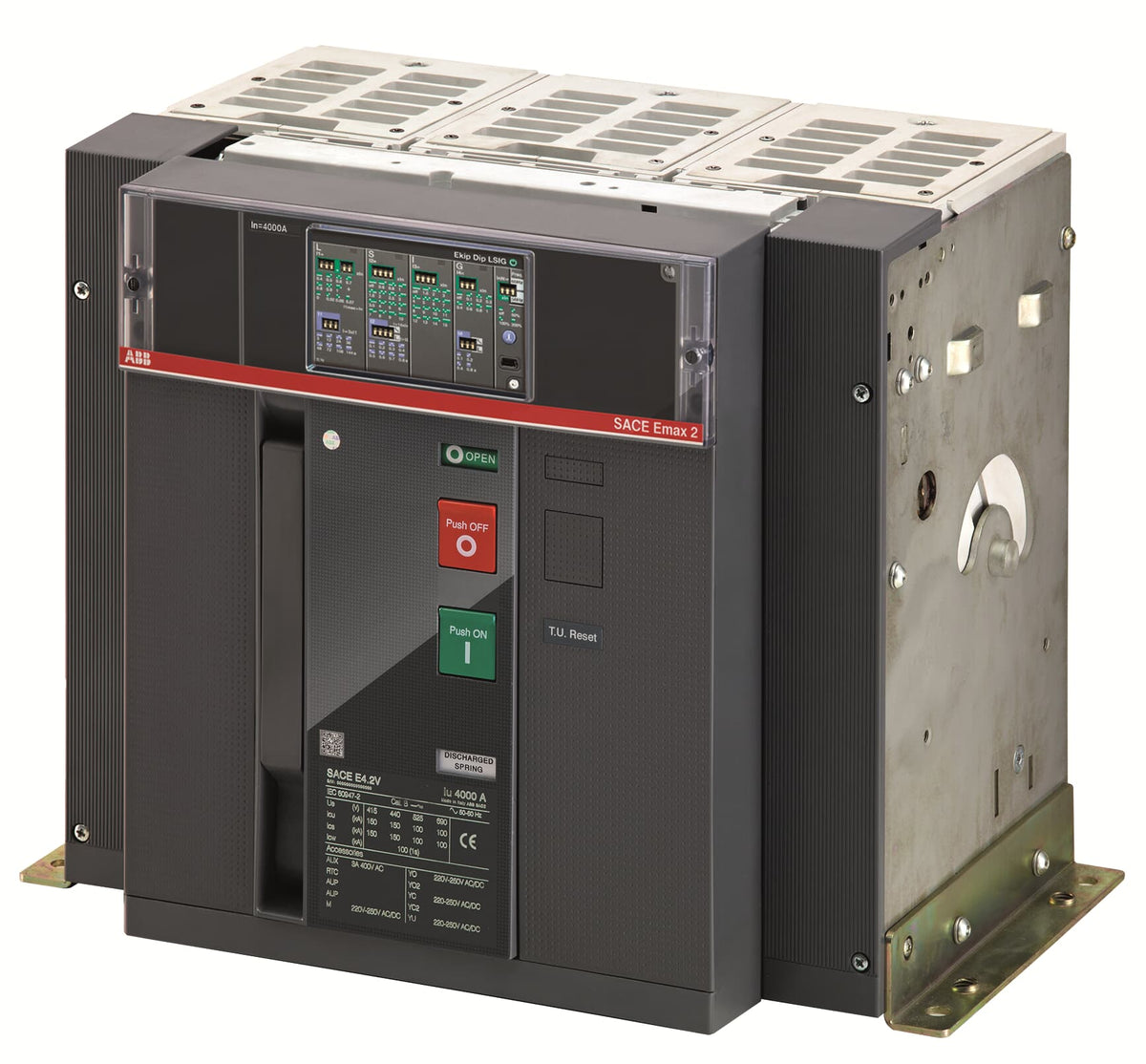

Rated at the top of the E4.2 frame, the ABB 1SDA071222R1 is a fixed, three-pole SACE Emax 2 E4.2V air circuit breaker with rear horizontal terminals. Its Ekip Dip LSI release carries a 4000 A rated current and delivers a 150 kA ultimate breaking capacity (Icu) at 400 V AC.

Technical Specifications

SKU 1SDA071222R1
Brand ABB
Series Emax 2
Catalog Designation E4.2V 4000 Ekip Dip LSI 3p F HR
EAN 8015644750725
Frame E4.2
Short-Circuit Performance Level V
Release Ekip Dip LSI
Number of Poles 3P
Rated Current (In / Iu) 4000 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu, 400 V AC) 150 kA
Rated Service Breaking Capacity (Ics, 400 V AC) 150 kA (100% of Icu)
Rated Short-time Withstand Current (Icw) 100 kA for 1 s / 75 kA for 3 s
Terminal Connection Type Rear flat Horizontal
Terminal Type Bolt
Connecting Capacity 4000 mm²
Suitable for IT Networks Yes, 690 V
Power Loss 465 W
Dimensions (W × H × D) 384 × 371 × 270 mm
Net Weight 56 kg

Selection Notes

The Ekip Dip LSI release on 1SDA071222R1 adds an adjustable short-time (S) stage to the standard long-time/instantaneous protection, so it can be set to hold off tripping and let a downstream breaker clear first, up to its 100 kA Icw rating for 1 s - a capability the LI-release variant in the same V performance class does not have. At 150 kA Icu, it is rated for the top breaking class available in the E4.2 frame. Fixed with rear horizontal (F HR) terminals, it bolts directly to busbars without needing a cradle; the WMP version is the choice where draw-out isolation is required instead.

Technical Details

Short Description
ABB 1SDA071222R1 - SACE Emax 2 E4.2V air circuit breaker, Ekip Dip LSI, 3-pole, F HR, 4000 A, 150 kA Icu at 400 V AC.
Rated Current (Ampere)
4000
Breaking Capacity (kA)
150 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E4.2V 4000 Ekip Dip LSI 3p F HR
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E4.2V 4000 Ekip Dip LSI 3p F HR
Tariff Code
853620
