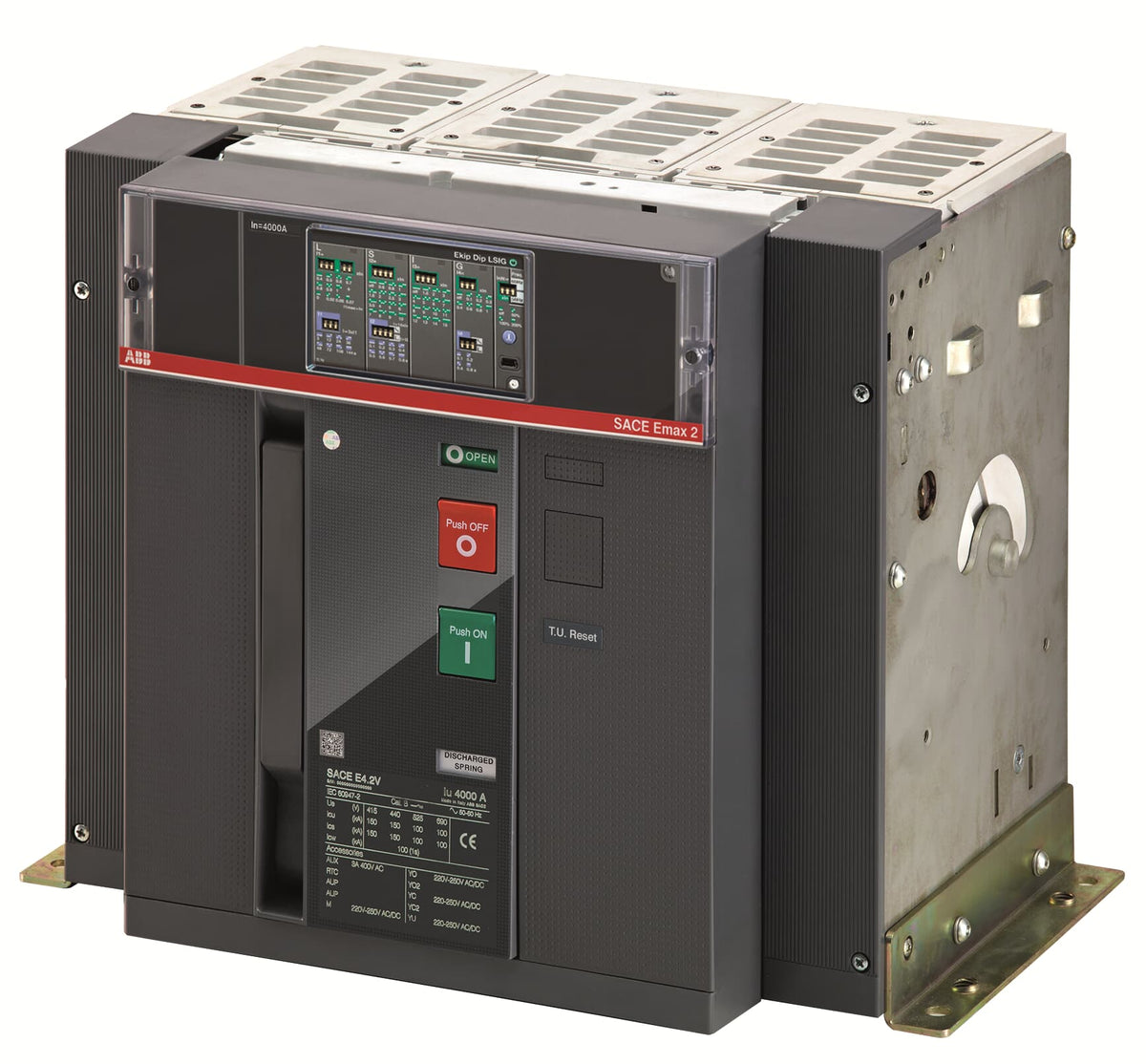

ABB 1SDA071221R1 E4.2V 4000 Ekip Dip LI 3p F HR 150kA Air Circuit Breaker

% $-9,062.30
ABB 1SDA071221R1 E4.2V 4000 Ekip Dip LI 3p F HR Air Circuit Breaker - 150 kA Icu
ABB 1SDA071221R1 E4.2V 4000 Ekip Dip LI 3p F HR Air Circuit Breaker - 150 kA Icu

ABB 1SDA071221R1 E4.2V 4000 Ekip Dip LI 3p F HR 150kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071221R1
Catalog No: E4.2V 4000 Ekip Dip LI 3p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 4000
Breaking Capacity: 150 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$9,062.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA071221R1 is a fixed, three-pole SACE Emax 2 E4.2V air circuit breaker with rear horizontal terminals, rated for the highest breaking-capacity class in the E4.2 frame. Fitted with an Ekip Dip LI release, it withstands 4000 A continuously and breaks up to 150 kA (Icu) at 400 V AC.

Technical Specifications

SKU 1SDA071221R1
Brand ABB
Series Emax 2
Catalog Designation E4.2V 4000 Ekip Dip LI 3p F HR
EAN 8015644750718
Frame E4.2
Short-Circuit Performance Level V
Release Ekip Dip LI
Number of Poles 3P
Rated Current (In / Iu) 4000 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu, 400 V AC) 150 kA
Rated Service Breaking Capacity (Ics, 400 V AC) 150 kA (100% of Icu)
Rated Short-time Withstand Current (Icw) 100 kA for 1 s / 75 kA for 3 s
Terminal Connection Type Rear flat Horizontal
Terminal Type Bolt
Connecting Capacity 4000 mm²
Suitable for IT Networks Yes, 690 V
Power Loss 465 W
Dimensions (W × H × D) 384 × 371 × 270 mm
Net Weight 56 kg

Selection Notes

1SDA071221R1 uses an Ekip Dip LI release - long-time overload (L) plus instantaneous (I) only, with no adjustable short-time delay stage - so it clears a short circuit as soon as the instantaneous threshold is crossed rather than holding off for selective coordination with a downstream device. That trade-off comes with the V performance class, the highest in the E4.2 frame at 150 kA Icu and 100 kA Icw for 1 s, which suits it to high-fault-level incomers where clearing speed matters more than staged selectivity. The fixed, rear horizontal (F HR) terminals bolt straight to busbars; choose the LSI-release variant instead when the installation needs the adjustable short-time stage for coordination.

Technical Details

Short Description
ABB 1SDA071221R1 - SACE Emax 2 E4.2V air circuit breaker, Ekip Dip LI, 3-pole, F HR, 4000 A, 150 kA Icu at 400 V AC.
Rated Current (Ampere)
4000
Breaking Capacity (kA)
150 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E4.2V 4000 Ekip Dip LI 3p F HR
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E4.2V 4000 Ekip Dip LI 3p F HR
Tariff Code
853620
