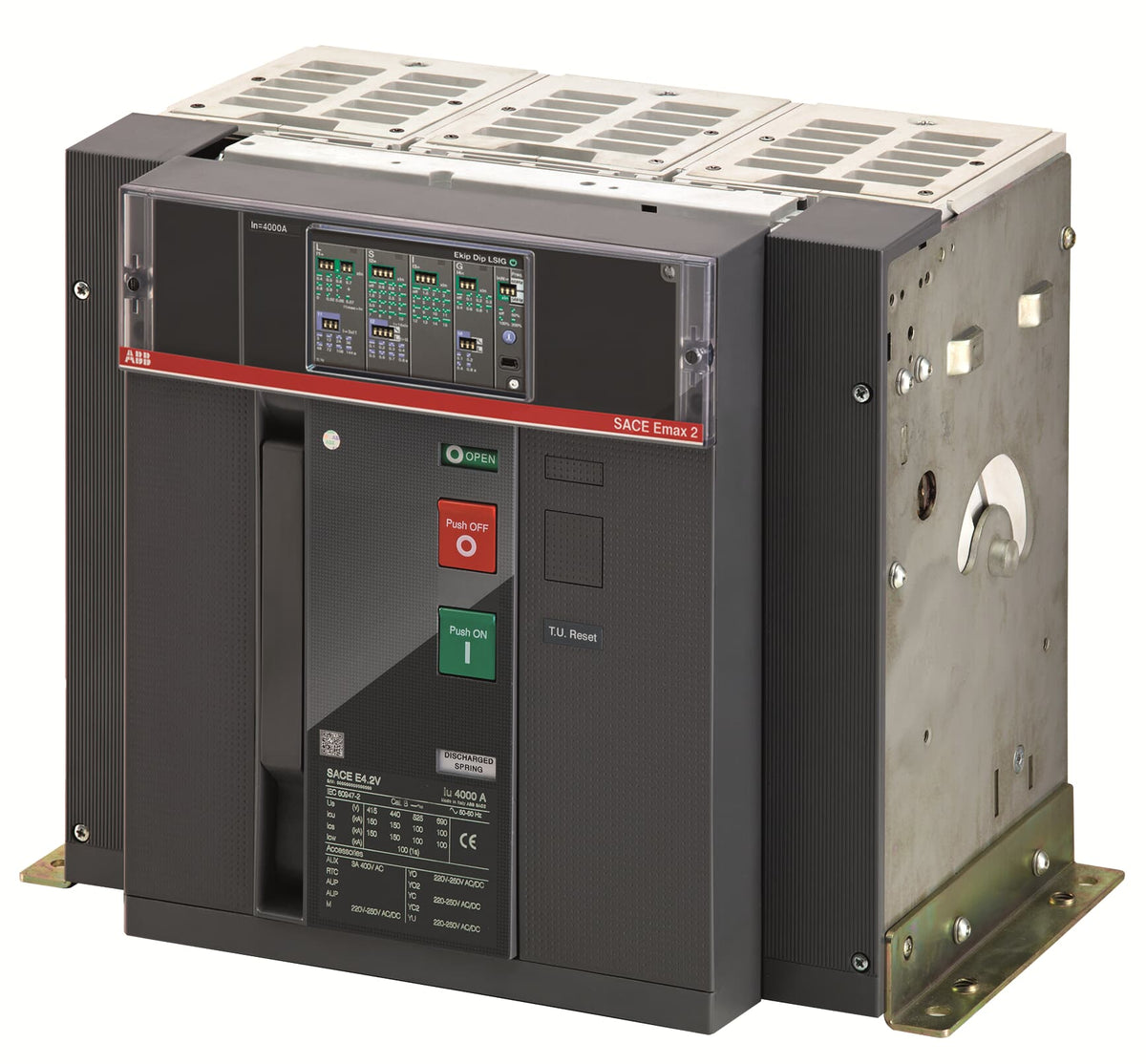

ABB 1SDA071162R1 E4.2H 3200 Ekip Dip LSI 3p F HR 100kA Air Circuit Breaker

% $-5,734.89
ABB 1SDA071162R1 E4.2H 3200 Ekip Dip LSI 3p F HR Air Circuit Breaker - 100kA
ABB 1SDA071162R1 E4.2H 3200 Ekip Dip LSI 3p F HR Air Circuit Breaker - 100kA

ABB 1SDA071162R1 E4.2H 3200 Ekip Dip LSI 3p F HR 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071162R1
Catalog No: E4.2H 3200 Ekip Dip LSI 3p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 3200
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5,734.89

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA071162R1 is a fixed, three-pole E4.2H SACE Emax 2 Ekip Dip LSI air circuit breaker with rear horizontal terminals, rated 3200 A and 100 kA ultimate breaking capacity at 400 V AC. The LSI release adds an adjustable short-time delay to the overload and instantaneous protection, built into ABB's largest Emax 2 frame.

Technical Specifications

SKU 1SDA071162R1
Brand ABB
Series SACE Emax 2
Catalog Designation E4.2H 3200 Ekip Dip LSI 3p F HR
EAN 8015644750121
Frame E4.2
Breaking Capacity Performance Level H
Rated Current (In) 3200 A
Number of Poles 3P
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 100 kA
Service Breaking Capacity (Ics, 400 V AC) 100 kA (100% of Icu)
Short-Time Withstand Current (Icw) 85 kA for 1 s / 66 kA for 3 s
Release / Trip Unit Ekip Dip LSI
Version Fixed, rear horizontal terminals
Terminal Connection Rear flat horizontal
Terminal Type Bolted
Connecting Capacity 3000 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 425 W
Net Weight 56 kg
Dimensions (W x H x D) 384 x 371 x 270 mm

Selection Notes

With the LSI short-time delay, this breaker can hold through a downstream fault on a timed setting, which supports its use as a main incomer at the top of the Emax 2 current range - the LI-only 1SDA072511R1 in the same H-level frame trips instantaneously instead and suits a sub-main position. The fixed, rear-horizontal-terminal body keeps power loss at 425 W, below the equivalent WMP unit's 743 W, and fits a board wired for direct busbar entry. Icu of 100 kA at 400 V AC and an 85 kA/1 s Icw match the H performance class across this frame.

Technical Details

Short Description
ABB 1SDA071162R1 - SACE Emax 2 E4.2H 3200 Ekip Dip LSI 3p F HR, 3200 A, 100 kA Icu at 400 V AC, rear horizontal terminals.
Rated Current (Ampere)
3200
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed, Rear Horizontal Terminals
Catalog No
E4.2H 3200 Ekip Dip LSI 3p F HR
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E4.2H 3200 Ekip Dip LSI 3p F HR
Tariff Code
853620
