ABB 1SDA071082R1 E2.2H 2500 Ekip Dip LSI 3p F HR 100kA Air Circuit Breaker

% $-4,906.48

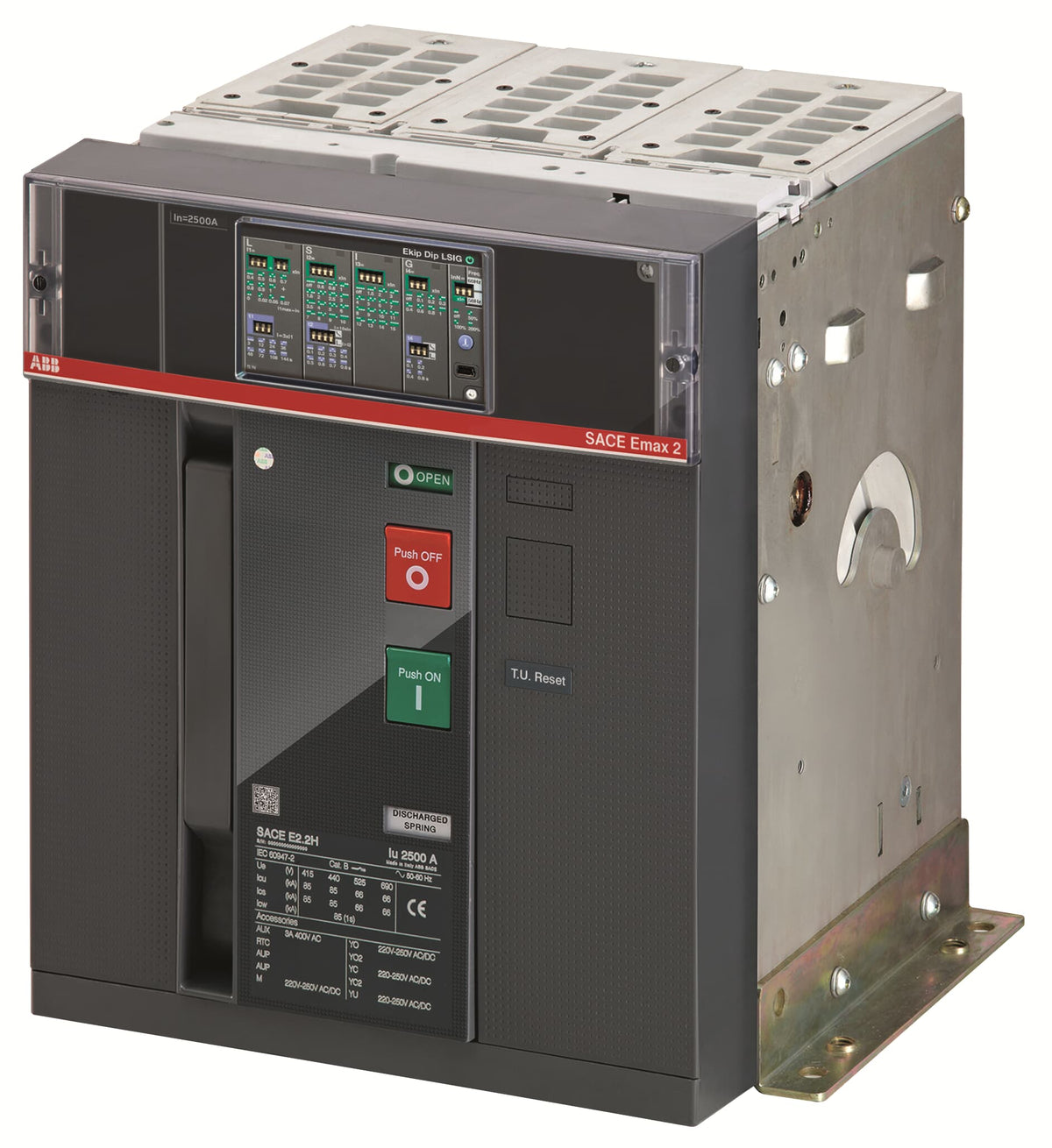

ABB 1SDA071082R1 E2.2H 2500 Ekip Dip LSI 3p F HR air circuit breaker
ABB 1SDA071082R1 E2.2H 2500 Ekip Dip LSI 3p F HR air circuit breaker

ABB 1SDA071082R1 E2.2H 2500 Ekip Dip LSI 3p F HR 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA071082R1
Catalog No: E2.2H 2500 Ekip Dip LSI 3p F HR
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2500
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,906.48

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Fixed mounting, three poles, rear horizontal terminals: that is the ABB 1SDA071082R1, a SACE Emax 2 E2.2H 2500 air circuit breaker with the Ekip Dip LSI electronic release. It is rated for 2500 A uninterrupted current and 100 kA breaking capacity at 400 V AC, and bolts onto the busbars without a cradle.

Technical Specifications

SKU 1SDA071082R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2H 2500 Ekip Dip LSI 3p F HR
EAN 8015644749323
Frame / Performance Level E2.2H (level H)
Poles 3P
Rated Current (In / Iu) 2500 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 100 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 100 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 85 kA / 1 s, 66 kA / 3 s
Release / Trip Unit Ekip Dip LSI
Terminal Connection Rear, Horizontal
Terminal Type Bolted
Connecting Capacity 1800 mm²
Power Loss (per pole) 267 W
Dimensions (W x H x D) 276 x 371 x 270 mm
Net Weight 41 kg
Suitable for IT Networks Yes, up to 690 V

Selection Notes

The S in Ekip Dip LSI gives this release a settable short-time delay on top of standard overload (L) and instantaneous (I) protection, so it can be graded to let a downstream Emax 2 or Tmax breaker clear a fault first — the reason to pick it over the plain LI release when this breaker sits upstream in a selective scheme. At 2500 A it is the highest current rating in this E2.2H F HR group, with the same 100 kA Icu as its 1600 A and 2000 A siblings on the same frame. Fixed mounting with rear horizontal terminals keeps installed depth down for busbars entering from behind the panel, at the cost of the maintenance flexibility a WMP cradle-mounted unit offers. Choose the 4-pole version if the board needs a switched neutral.

Technical Details

Short Description
ABB 1SDA071082R1 - SACE Emax 2 E2.2H 2500A 3P, fixed, rear horizontal terminals, Ekip Dip LSI release, 100 kA Icu.
Rated Current (Ampere)
2500
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed, rear horizontal terminals
Catalog No
E2.2H 2500 Ekip Dip LSI 3p F HR
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2H 2500 Ekip Dip LSI 3p F HR
Tariff Code
853620
