Part number
1SDA071072R1
Model no
E2.2S
$4,734.02 On request Dispatch — · From TürkiyeGet a Quote

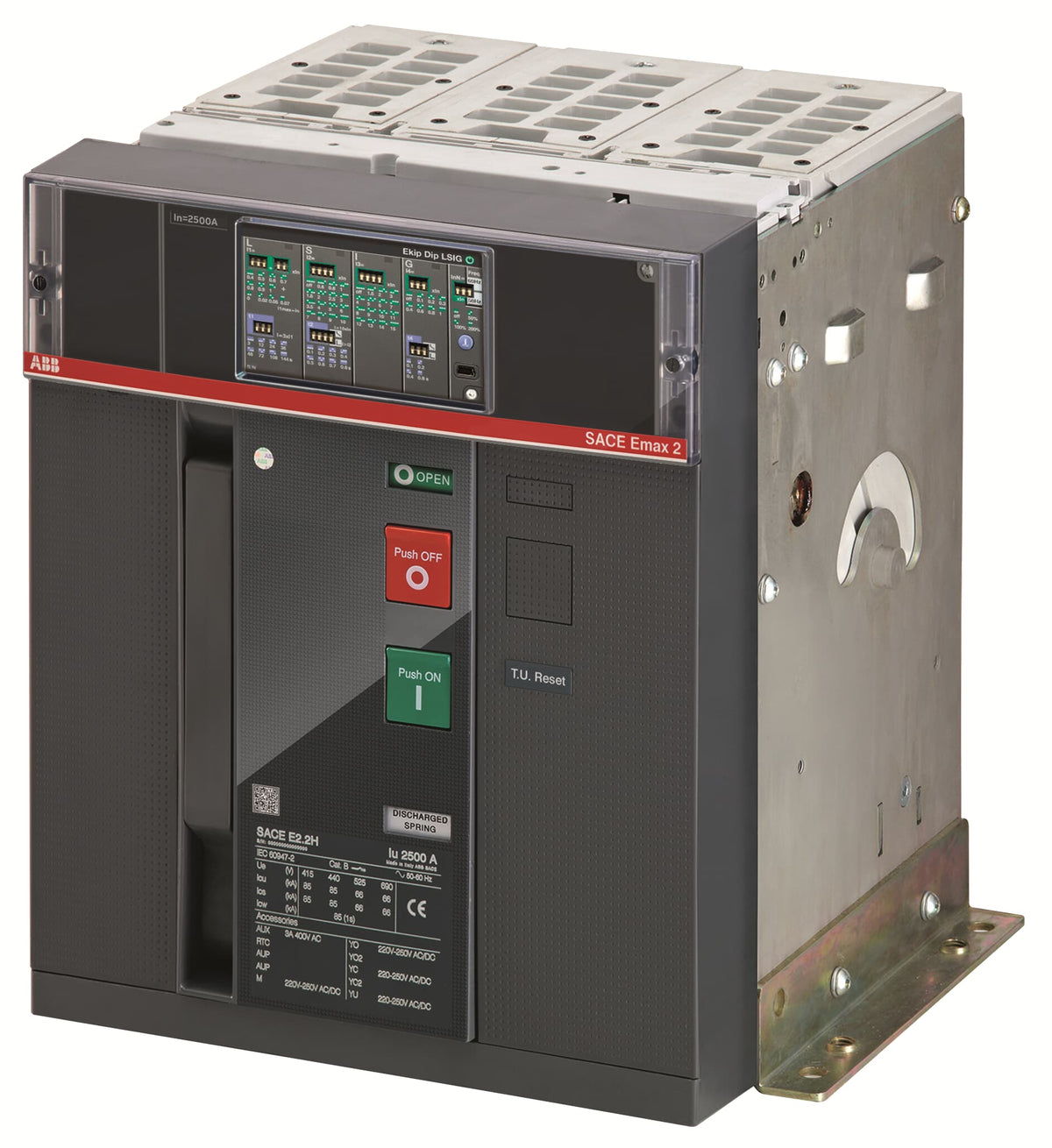

ABB 1SDA071072R1 E2.2S 2500 Ekip Dip LSI 3p F HR 85kA Air Circuit Breaker

ABB 1SDA071072R1 - SACE Emax 2 E2.2S 2500 Ekip Dip LSI 3p F HR, 2500 A, 85 kA Icu at 400 V AC, rear horizontal terminals.

Rated current
2500 A
Rated operational voltage
690 V AC
Poles
3P
Breaking capacity
85 kA
EAN
8015644749224
Description

About the E2.2S

Three-pole and fixed-mounted, the ABB 1SDA071072R1 is a SACE Emax 2 E2.2S 2500 Ekip Dip LSI air circuit breaker with rear horizontal terminals, rated 85 kA ultimate breaking capacity at 400 V AC. Its LSI release adds an adjustable short-time delay to the overload and instantaneous protection for coordinated tripping.

Selection Notes

At 2500 A in a fixed, rear-horizontal-terminal body, this unit suits a switchboard wired for direct busbar entry rather than a withdrawable truck-and-cradle arrangement, and its 267 W power loss sits below the equivalent WMP unit's 550 W because there is no plug-in contact stack. The LSI short-time delay lets it stay closed through a downstream fault long enough for a smaller breaker to clear first, which supports use as a main incomer. Against the four-pole 1SDA071702R1 in the same F HR body, pick this three-pole version where the installation does not need a switched neutral.

Specification

Full specification

60 values · Last verified 02 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 276 mm
Product Net Height 371 mm
Product Net Depth / Length 270 mm
Product Net Weight 41 kg

Additional Information 4

Product Main Type SACE Emax 2
Product Name Air Circuit Breaker
Product Type Air Circuit Breaker
Version F
Show all 60 specifications ↓ Show less ↑51 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA071072R1
Type designation E2.2S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644749224
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 26

Connecting Capacity 1800 mm²
Current Type AC
Electrical Durability Ue =< 440 V 8000 cycle, Ue = 500 ... 690 V 7000 cycle, 30 cycles per hour
Mechanical Durability 20000 cycle, 60 cycles per hour
Number of Poles 3P
Power Loss 267 W
Rated Current (In) 2500 A
Rated Impulse Withstand Voltage (Uimp) acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui) AC 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 85 kA, (400 V AC) 85 kA, (415 V AC) 85 kA, (440 V AC) 85 kA, (500 V AC) 66 kA, (660 V AC) 66 kA, (690 V AC) 66 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) 100 %
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 66 kA, for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (400 V AC) 85 kA, (415 V AC) 85 kA, (440 V AC) 85 kA, (500 V AC) 66 kA, (525 V AC) 66 kA, (690 V AC) 66 kA
Rated Uninterrupted Current (Iu) 2500 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver M12
Release Ekip Dip LSI
Release Type EL
Short-Circuit Performance Level S
Standards IEC
Sub-type E2.2
Suitable for IT Networks Yes, 690V
Terminal Connection Type Rear flat Horizontal
Terminal Type Bolt
Tightening Torque 70 N·m

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39121615
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 515 mm
Package Level 1 Height 610 mm
Package Level 1 Depth / Length 515 mm
Package Level 1 Gross Weight 46 kg
Package Level 1 EAN 8015644749224
Shipping weight 41.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026

Documents

Documents for 1SDA071072R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC
Quick answers

Questions about the E2.2S

What is the rated current of E2.2S?

The rated current of E2.2S is 2500 A.

Which supply voltage is E2.2S rated for?

The rated operational voltage of E2.2S is 690 V AC.

What is the HS code of E2.2S for customs?

The tariff (HS) code on file for E2.2S is 853620.

What is the EAN of E2.2S?

The EAN (GTIN) of E2.2S is 8015644749224.

Where does E2.2S ship from, and how fast?

E2.2S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
