ABB 1SDA070832R1 E1.2C 1250 Ekip Dip LSI 3p F F 50kA Air Circuit Breaker

% $-2,320.72
ABB 1SDA070832R1 E1.2C 1250 Ekip Dip LSI 3p F F Air Circuit Breaker – 50kA Icu
ABB 1SDA070832R1 E1.2C 1250 Ekip Dip LSI 3p F F Air Circuit Breaker – 50kA Icu

ABB 1SDA070832R1 E1.2C 1250 Ekip Dip LSI 3p F F 50kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA070832R1
Catalog No: E1.2C 1250 Ekip Dip LSI 3p F F
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1250
Breaking Capacity: 50 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,320.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

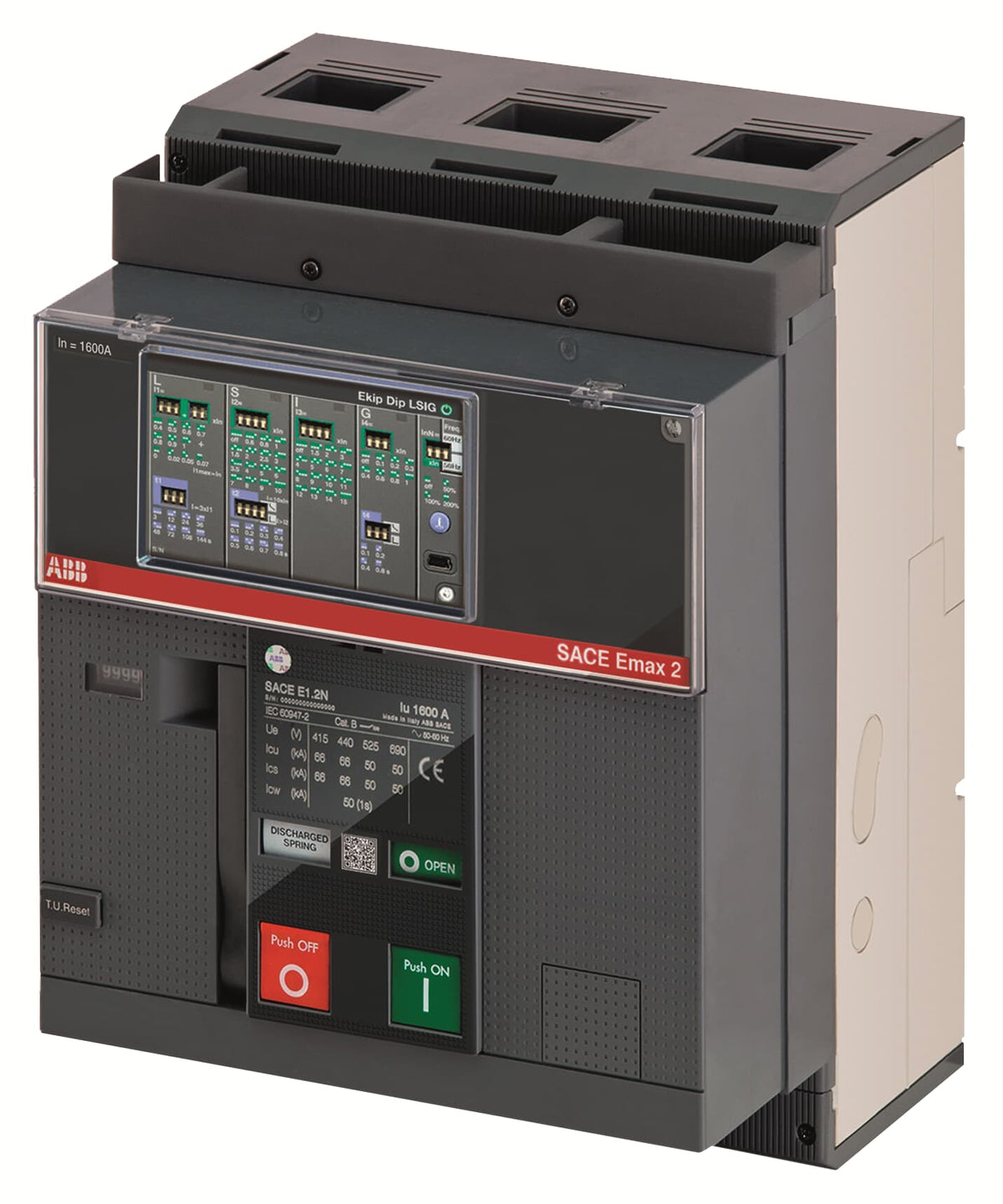

ABB's SACE Emax 2 1SDA070832R1 air circuit breaker delivers 1250 A rated current with Ekip Dip LSI electronic release, three poles, and fixed front-terminal (F F) mounting. It carries a 50 kA ultimate breaking capacity (Icu) at 400 V AC and a 1 s short-time withstand (Icw) of 42 kA, rated up to 690 V AC.

Technical Specifications

SKU 1SDA070832R1
Brand ABB
Series SACE Emax 2
Catalog Designation E1.2C 1250 Ekip Dip LSI 3p F F
EAN 8015644746827
Frame E1.2
Short-Circuit Performance Level C
Rated Current (In) 1250 A
Number of Poles 3P
Release Ekip Dip LSI
Release Type Electronic (EL)
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 50 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 50 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 42 kA / 1 s, 24 kA / 3 s
Connecting Capacity 1000 mm²
Power Loss 122 W
Terminal Connection Type Front
Terminal Type Bolt
Net Weight 14 kg
Dimensions (W × H × D) 210 × 296 × 183 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

At 1250 A with Ekip Dip LSI, this breaker's short-time delay stage lets it ride through a fault for up to 1 s at 42 kA before tripping, so a smaller downstream breaker can clear first — the basis for selective coordination in a distribution board. The F F designation means fixed mounting with front, bolted terminals, simpler to install than a withdrawable unit but without the rack-out isolation option. Three poles switch only the phases, appropriate where the neutral is not required to be broken. If isolation without a panel shutdown is a requirement, the WMP version at the same frame and current is the withdrawable alternative.

Technical Details

Short Description
ABB 1SDA070832R1 — SACE Emax 2 1250 A air circuit breaker, Ekip Dip LSI, 3P, Icu 50 kA, Fixed.
Rated Current (Ampere)
1250
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E1.2C 1250 Ekip Dip LSI 3p F F
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2C 1250 Ekip Dip LSI 3p F F
Tariff Code
853620

Downloads

Customers say

Pairs well with

Related products
