ABB 1SDA070801R1 E1.2N 1000 Ekip Dip LI 3p F F 1000A 3P 66kA Air Circuit Breaker

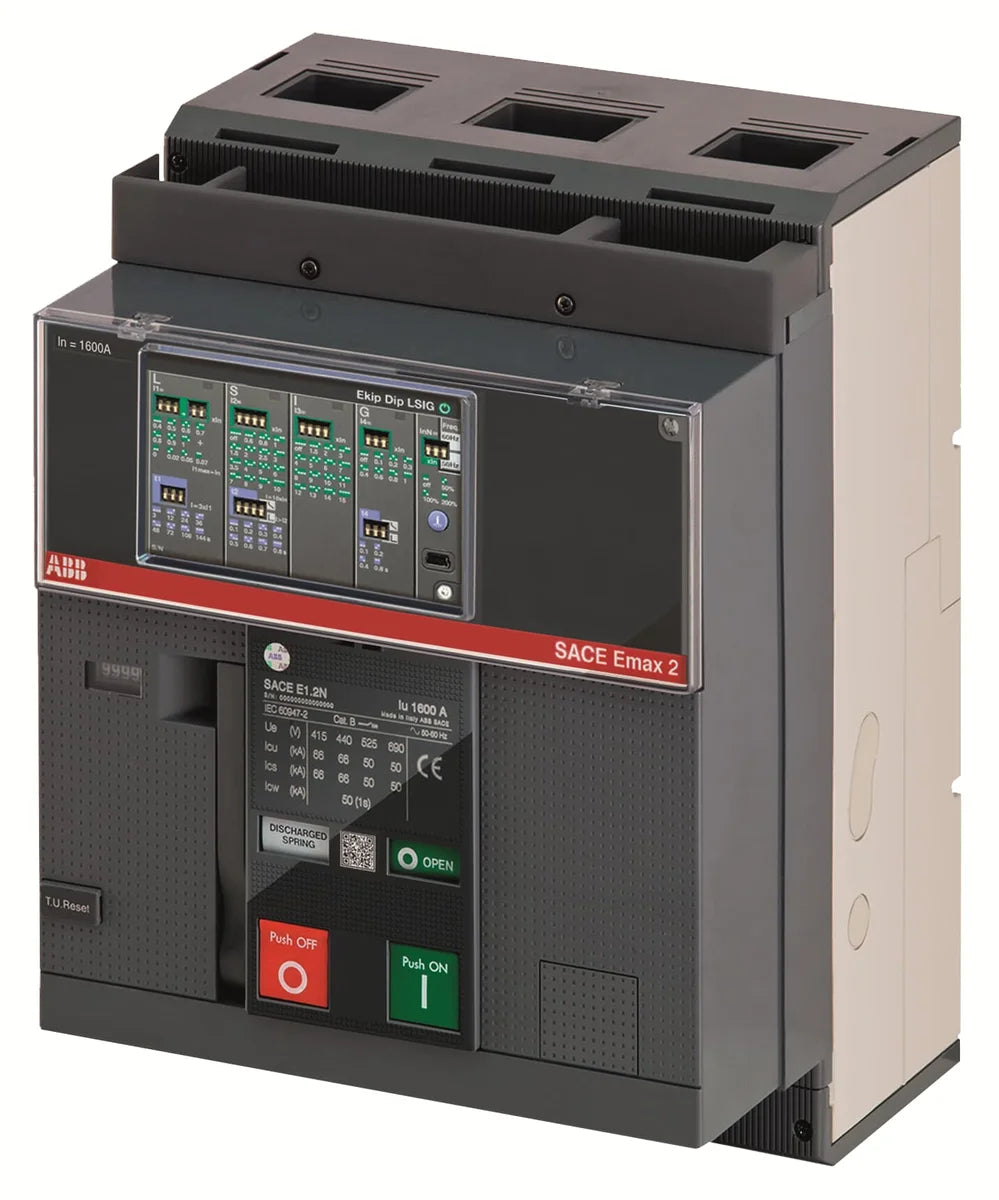

The ABB 1SDA070801R1 E1.2N 1000 Ekip Dip LI 3p F F is a 1000A 3-pole fixed-mount air circuit breaker from the SACE Emax2 E1.2 series, delivering a breaking capacity of 66 kA at 400 V AC. Featuring the Ekip Dip LI trip unit for reliable overload (L) and short-circuit (I) protection, this ACB is engineered for demanding low-voltage power distribution and switchgear applications where precise protection and high interrupting performance are essential.

Technical Specifications

Certifications & Standards

• IEC / IEC 60947: Compliant with international low-voltage switchgear and controlgear standards, ensuring verified performance in global installations.
• CE: Meets European Union conformity requirements for electrical equipment placed on the EU market.
• EU Directive 2011/65/EU (RoHS): Restriction of Hazardous Substances — restricts the use of specific dangerous materials in electrical equipment.
• RoHS: Compliant with RoHS regulations limiting hazardous substances in electronic and electrical products.
• REACH: Compliant with EU REACH regulation on the registration, evaluation, authorisation, and restriction of chemicals.
• EN 45555 / EN45555: European standard addressing end-of-life treatment and recyclability of electrical and electronic equipment.
• UL 2799: Certified to UL standard for electrical systems, supporting North American market requirements.
• ATEX: Suitable for use in environments where explosive atmospheres may be present, per ATEX directive requirements.
• CSA: Canadian Standards Association certification, confirming compliance for the Canadian and North American markets.
• VDE: Tested and certified by Germany's VDE Institute, a globally recognised electrical safety mark.
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal and recycling.

Applications & Use Cases

• Main and sub-main incomer protection in low-voltage switchboards and distribution panels
• Bus-tie and feeder circuit protection in industrial power distribution systems
• Generator set output protection requiring high breaking capacity at 400 V AC
• Motor feeder protection in heavy industrial plants, refineries, and process facilities
• Critical infrastructure power distribution including data centres, hospitals, and utilities
• Marine and offshore electrical installations requiring ATEX and IEC 60947 compliance
