ABB 1SDA070792R1 E1.2C 1000 Ekip Dip LSI 3p F F 50kA Air Circuit Breaker

% $-2,233.44
ABB 1SDA070792R1 E1.2C 1000 Ekip Dip LSI 3p F F Air Circuit Breaker - 1000A 3P 50kA
ABB 1SDA070792R1 E1.2C 1000 Ekip Dip LSI 3p F F Air Circuit Breaker - 1000A 3P 50kA

ABB 1SDA070792R1 E1.2C 1000 Ekip Dip LSI 3p F F 50kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA070792R1
Catalog No: E1.2C 1000 Ekip Dip LSI 3p F F
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1000
Breaking Capacity: 50 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,233.44

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

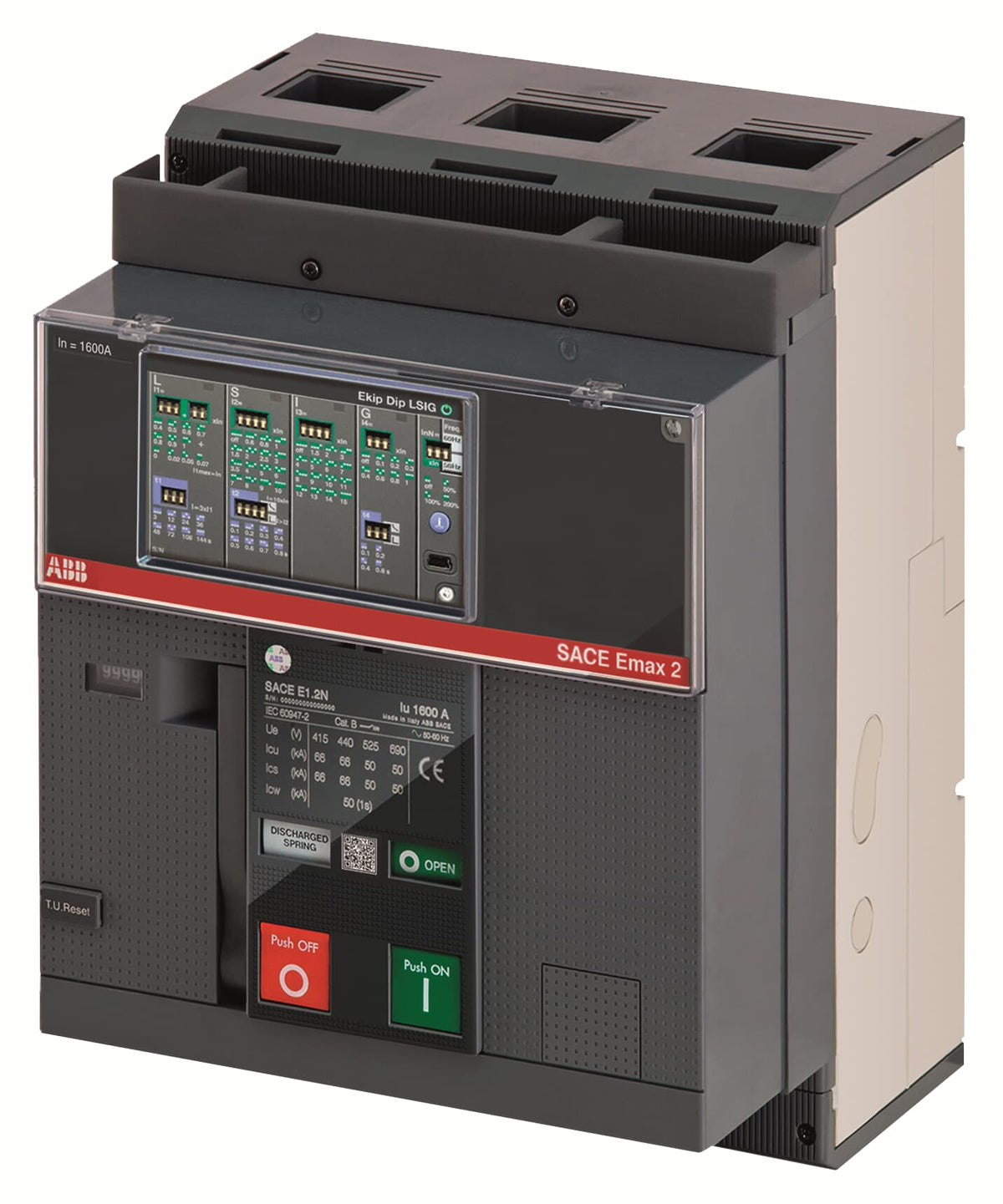

The ABB 1SDA070792R1 is a fixed-mounted E1.2C performance level C SACE Emax 2 air circuit breaker with front terminals, rated 1000 A across 3 poles with an Ekip Dip LSI electronic release. It delivers 50 kA ultimate breaking capacity (Icu) at 400 V AC and 42 kA short-time withstand (Icw) for 1 s, for use up to 690 V AC in fixed switchboard installations.

Technical Specifications

SKU 1SDA070792R1
Brand ABB
Series Emax 2
Catalog Designation E1.2C 1000 Ekip Dip LSI 3p F F
EAN 8015644746421
Frame / Sub-type E1.2
Short-Circuit Performance Level C
Number of Poles 3P
Rated Current (In) 1000 A
Rated Uninterrupted Current (Iu) 1000 A
Rated Operational Voltage (Ue) 690 V AC
Rated Voltage (Ur) 690 V
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 50 kA at 400-440 V AC, 42 kA at 500-690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 50 kA at 220-440 V AC, 42 kA at 500-690 V AC (100% of Icu)
Rated Short-time Withstand Current (Icw) 42 kA for 1 s / 24 kA for 3 s
Release / Trip Unit Ekip Dip LSI
Connecting Capacity 1000 mm²
Power Loss 78 W
Suitable for IT Networks Yes, up to 690 V
Terminal Connection Type Front
Terminal Type Bolt
Net Dimensions (W x H x D) 210 x 296 x 183 mm
Net Weight 14 kg

Selection Notes

The E1.2C performance level lifts this 1000 A, 3-pole breaker's breaking capacity to 50 kA at 400-440 V AC (42 kA from 500 V AC upward), a step above the 42 kA E1.2B breakers in this range, for installations with a higher prospective fault current. Its Ekip Dip LSI release still provides overload, short-time delay and instantaneous protection, with the 1 s short-time withstand held at 42 kA regardless of performance level. As a fixed, front-terminal breaker it mounts directly without a withdrawable cradle; the WMP moving part at the same C-level rating is the alternative for drawout panels.

Technical Details

Short Description
ABB 1SDA070792R1 - SACE Emax 2 E1.2C fixed air circuit breaker, front terminals, 1000 A, 3-pole, Ekip Dip LSI, 50 kA Icu at 400 V AC.
Rated Current (Ampere)
1000
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E1.2C 1000 Ekip Dip LSI 3p F F
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2C 1000 Ekip Dip LSI 3p F F
Tariff Code
853620
