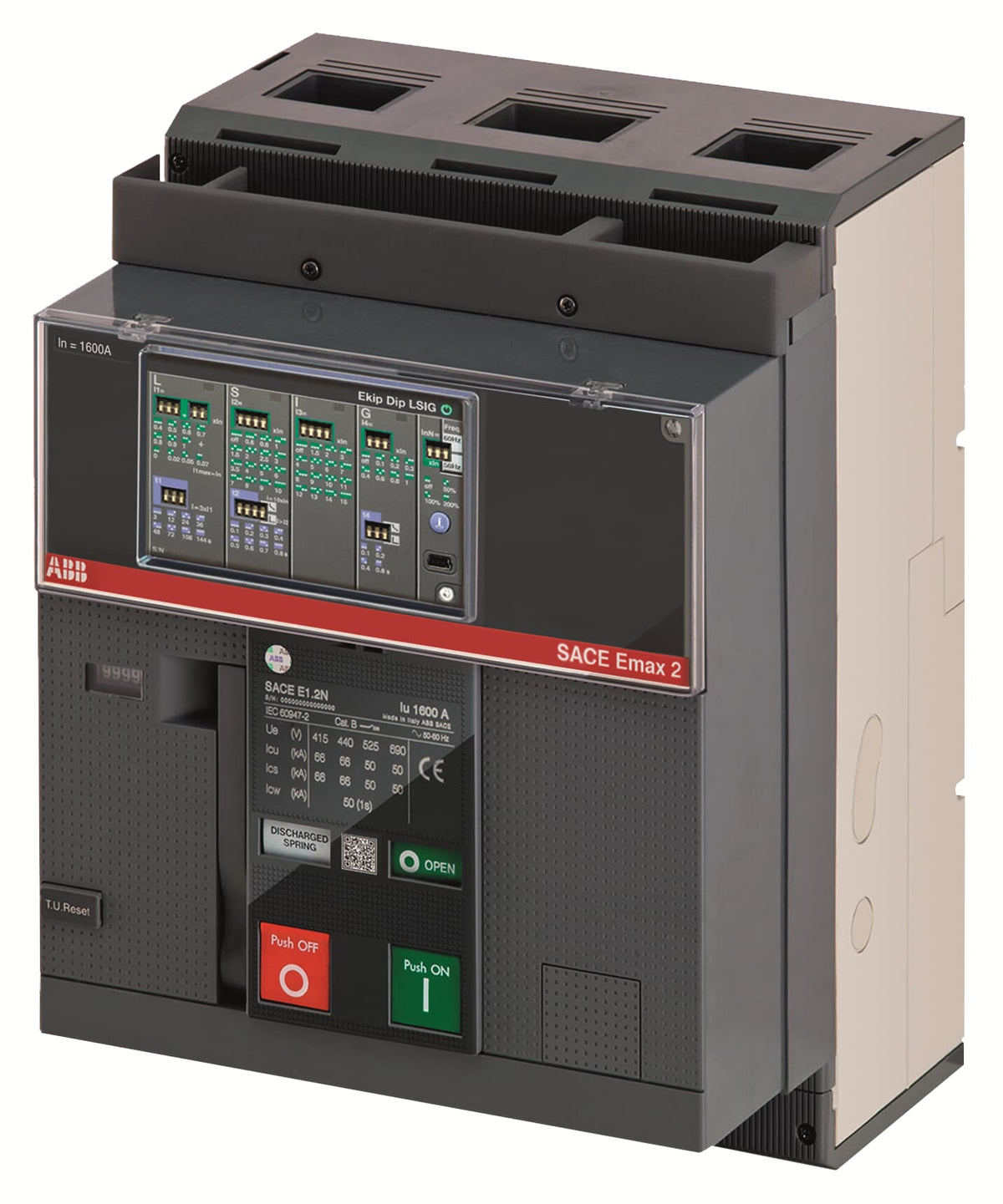

ABB 1SDA070752R1 E1.2C 800 Ekip Dip LSI 3p F F 50kA Air Circuit Breaker

% $-2,148.80
ABB 1SDA070752R1 E1.2C 800 Ekip Dip LSI 3p F F Air Circuit Breaker - 50 kA
ABB 1SDA070752R1 E1.2C 800 Ekip Dip LSI 3p F F Air Circuit Breaker - 50 kA

ABB 1SDA070752R1 E1.2C 800 Ekip Dip LSI 3p F F 50kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA070752R1
Catalog No: E1.2C 800 Ekip Dip LSI 3p F F
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 800
Breaking Capacity: 50 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,148.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA070752R1 is a SACE Emax 2 E1.2C 800 Ekip Dip LSI 3p F F air circuit breaker rated for 800 A uninterrupted current (Iu) with a 50 kA ultimate breaking capacity (Icu) at 400 V AC. It is a fixed, three-pole unit with front terminals and an Ekip Dip LSI electronic trip unit.

Technical Specifications

SKU 1SDA070752R1
Brand ABB
Series SACE Emax 2
Catalog Designation E1.2C 800 Ekip Dip LSI 3p F F
EAN 8015644746025
Number of Poles 3P
Rated Current (In / Iu) 800 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 50 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 50 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 42 kA / 1 s, 24 kA / 3 s
Release / Trip Unit Ekip Dip LSI
Short-Circuit Performance Level C
Terminal Connection Front, bolt-type
Connecting Capacity 500 mm²
Mounting Fixed
Current Type AC
Suitable for IT Networks Yes, up to 690 V
Power Loss 50 W
Net Dimensions (W x H x D) 210 x 296 x 183 mm
Net Weight 14 kg

Selection Notes

Ekip Dip LSI pairs overload (L), short-time delay (S) and instantaneous (I) protection, and the 42 kA/1 s short-time withstand (Icw) lets this breaker hold a downstream fault long enough for a smaller breaker to clear first, instead of tripping instantaneously — useful ahead of selectively coordinated sub-distribution. Pick this three-pole, fixed F F version over the four-pole or withdrawable (WMP) variants of the same E1.2C 800 frame when the installation is a three-wire system with a permanent mounting position and no drawout isolation requirement.

Technical Details

Short Description
ABB SACE Emax 2 E1.2C 800 Ekip Dip LSI 3p F F air circuit breaker, 800 A, 50 kA Icu at 400 V AC, fixed front terminals.
Rated Current (Ampere)
800
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
E1.2C 800 Ekip Dip LSI 3p F F
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2C 800 Ekip Dip LSI 3p F F
Tariff Code
853620
