Part number
1SDA068515R1
Model no
XT4H
$380.21 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

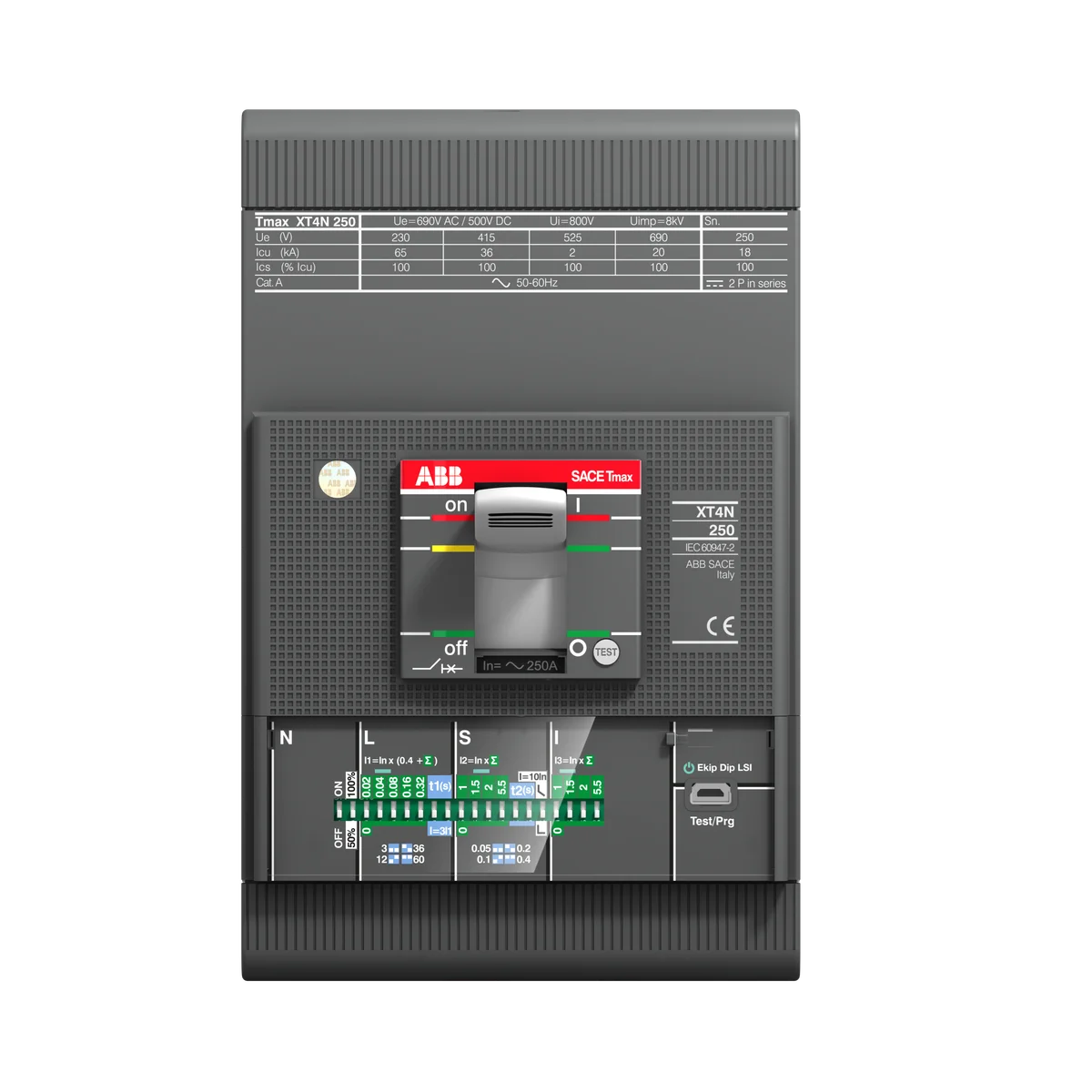

ABB 1SDA068515R1 XT4H 250 Ekip Dip LS/I In=250A 3p F F 250A 3-Pole 70kA Fixed Moulded Case Circuit Breaker

Rated current
250 A
Poles
3P
Breaking capacity
(400) 70 kA
EAN
8015644024215
Description

About the XT4H

The ABB 1SDA068515R1 XT4H 250 Ekip Dip LS/I In=250A 3p F F is a 250A, 3-pole moulded case circuit breaker from the Tmax XT4 series, engineered for trafo, generator, and installation protection in demanding industrial environments. With a breaking capacity of 70 kA at 400 V AC and a fixed mounting configuration, this power circuit-breaker delivers reliable overcurrent and short-circuit protection in compact panel designs measuring just 105 mm × 160 mm × 82.5 mm.

Certifications & Standards

  • RoHS: Compliant with Restriction of Hazardous Substances Directive
  • REACH: Compliant with EU REACH regulation on chemical substances
  • EU Directive 2011/65/EU: European RoHS Directive compliance confirmed
  • Amendment 2015/863: Updated substance restriction list compliance
  • IEC60947-2: Meets international standard for low-voltage circuit-breakers
  • ATEX: Certified for use in explosive atmospheres
  • CE: Carries CE marking for European market conformity
  • VDE: Verified to VDE German electrical engineering standards
  • WEEE: Registered under Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

The XT4H 250 Ekip Dip LS/I In=250A 3p F F is ideally suited for protecting transformers, generators, and main distribution boards in industrial facilities, commercial buildings, and infrastructure projects. The Ekip Dip LS/I electronic trip unit provides long-time and instantaneous protection curves, giving engineers precise coordination with upstream and downstream devices. Its fixed frame and compact footprint make the ABB 1SDA068515R1 a practical choice for new installations and panel upgrades where board space is at a premium. The 70 kA breaking capacity at 400 V AC ensures robust fault clearance even on high-energy bus systems, while ATEX certification extends its suitability to hazardous-area installations.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 105 mm
Product Net Height 160 mm
Product Net Depth / Length 82.5 mm
Product Net Weight 2.321 kg

Additional Information 5

Circuit Breaker Type to be Associated Power Distribution
Product Main Type SACE Tmax XT
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Version F
Show all 61 specifications ↓ Show less ↑51 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA068515R1
Type designation XT4H
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644024215
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 26

Connecting Capacity Main Circuit Busbar 85..200 mm²
Current Type AC
Electrical Durability 120 cycles per hour, 8000 cycle
Mechanical Durability 240 cycles per hour, 25000 cycle
Number of Poles 3P
Opening Time CB with SOR 30 ms, CB with UVR 30 ms
Order Multiple 1 piece
Power Loss at Rated Operating Conditions per Pole 16.4 W
Rated Current (In) 250 A
Rated Frequency (f) 50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 45 kA, (690 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 45 kA, (690 V AC) 15 kA
Rated Uninterrupted Current (Iu) 250 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver Main Circuit M8
Release Ekip Dip LS/I
Release Type EL
Short-Circuit Performance Level H
Standards IEC60947-2
Sub-type XT4
Terminal Connection Type Front
Terminal Type Bolt
Tightening Torque 8 N·m

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 151 mm
Package Level 1 Height 214 mm
Package Level 1 Depth / Length 171 mm
Package Level 1 Gross Weight 2.443 kg
Package Level 1 EAN 8015644024215
Shipping weight 2.443 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA068515R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • ATEX
  • IEC60947-2
Quick answers

Questions about the XT4H

What is the rated current of XT4H?

The rated current of XT4H is 250 A.

What is the HS code of XT4H for customs?

The tariff (HS) code on file for XT4H is 85362090.

What is the EAN of XT4H?

The EAN (GTIN) of XT4H is 8015644024215.

Where does XT4H ship from, and how fast?

XT4H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
