Part number
1SDA068331R1
Model no
XT4S
$358.78 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

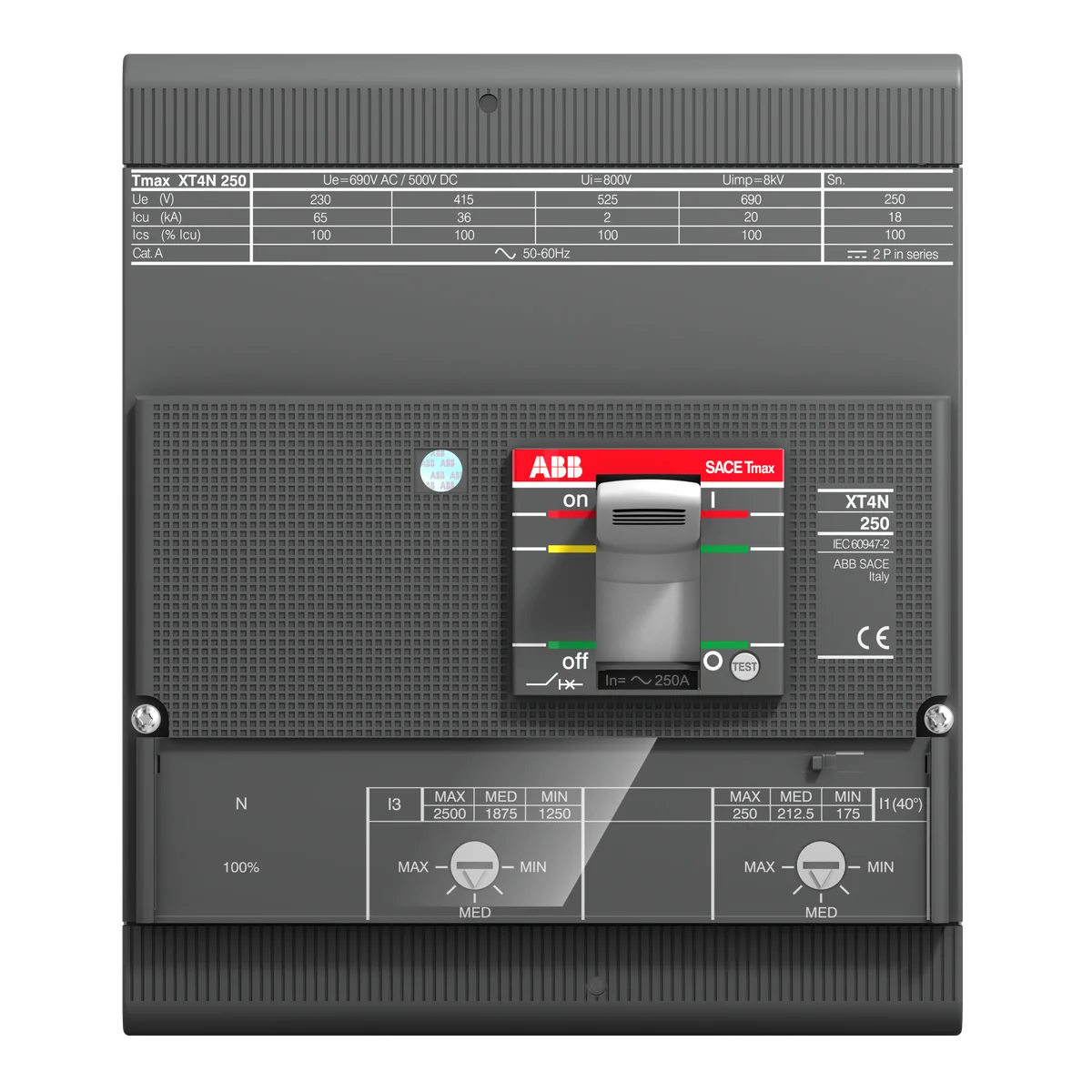

ABB 1SDA068331R1 XT4S 250 TMA 250-2500 4p F F InN=100% 250A 4-Pole Fixed Power Circuit Breaker

Rated current
250 A
Poles
4P
Breaking capacity
(400) 50 kA
EAN
8015644696382
Description

About the XT4S

The ABB 1SDA068331R1 XT4S 250 TMA 250-2500 4p F F InN=100% is a 250 A, 4-pole fixed-mount moulded case power circuit breaker from the Tmax XT4S series, engineered for transformer, generator, and installation protection in demanding industrial environments. Featuring a TMA thermomagnetic trip unit with an adjustable range of 250–2500 A and a neutral conductor set at 100% of rated current, this breaker delivers precise overload and short-circuit protection. Its compact footprint (140 mm × 160 mm × 82.5 mm) and robust 3.5 kg construction make it ideal for space-constrained distribution boards and motor control centres.

Certifications & Standards

  • IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers; primary standard governing design and performance
  • CE: Confirms compliance with applicable European Union directives for market placement in the EEA
  • VDE: German electrotechnical certification verifying compliance with VDE / DIN standards
  • ATEX: Certified for use in potentially explosive atmospheres per EU Directive 2014/34/EU
  • RoHS: Restriction of Hazardous Substances — confirms restricted substances are within permitted limits
  • REACH: Compliance with EU REACH regulation on chemical substances in electrical equipment
  • EN 45555: General methods for the assessment of the lifetime of energy-related products; supports eco-design requirements
  • UL 2799: Zero-waste certification standard; supports sustainability reporting
  • WEEE: Waste Electrical and Electronic Equipment directive compliance; product is registered for proper end-of-life recycling

Applications & Use Cases

  • Transformer secondary protection in industrial power distribution panels
  • Generator output protection and short-circuit coordination
  • Main and sub-distribution installation protection in commercial and industrial facilities
  • Motor control centres and switchboards requiring compact 4-pole fixed breakers
  • Hazardous area installations where ATEX-rated equipment is mandated
Specification

Full specification

63 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 140 mm
Product Net Height 160 mm
Product Net Depth / Length 82.5 mm
Product Net Weight 3.5 kg

Additional Information 5

Circuit Breaker Type to be Associated Power Distribution
Product Main Type SACE Tmax XT
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Version F
Show all 63 specifications ↓ Show less ↑53 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA068331R1
Type designation XT4S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644696382
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 28

Connecting Capacity Main Circuit Busbar 85..200 mm²
Current Type AC/DC
Electrical Durability 120 cycles per hour, 8000 cycle
Mechanical Durability 240 cycles per hour, 25000 cycle
Number of Poles 4P
Opening Time CB with SOR 30 ms, CB with UVR 30 ms
Order Multiple 1 piece
Power Loss at Rated Operating Conditions per Pole 16.44 W
Rated Current (In) 250 A
Rated Frequency (f) 50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii) 1250…2500 A
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC, 750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu) 250 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver Main Circuit M8
Release TMA
Release Type TM
Setting Range 175...250 A
Short-Circuit Performance Level S
Standards IEC60947-2
Sub-type XT4
Terminal Connection Type Front
Terminal Type Bolt
Tightening Torque 8 N·m

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 145 mm
Package Level 1 Height 210 mm
Package Level 1 Depth / Length 168 mm
Package Level 1 Gross Weight 3.5 kg
Package Level 1 EAN 8015644696382
Shipping weight 3.5 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026
