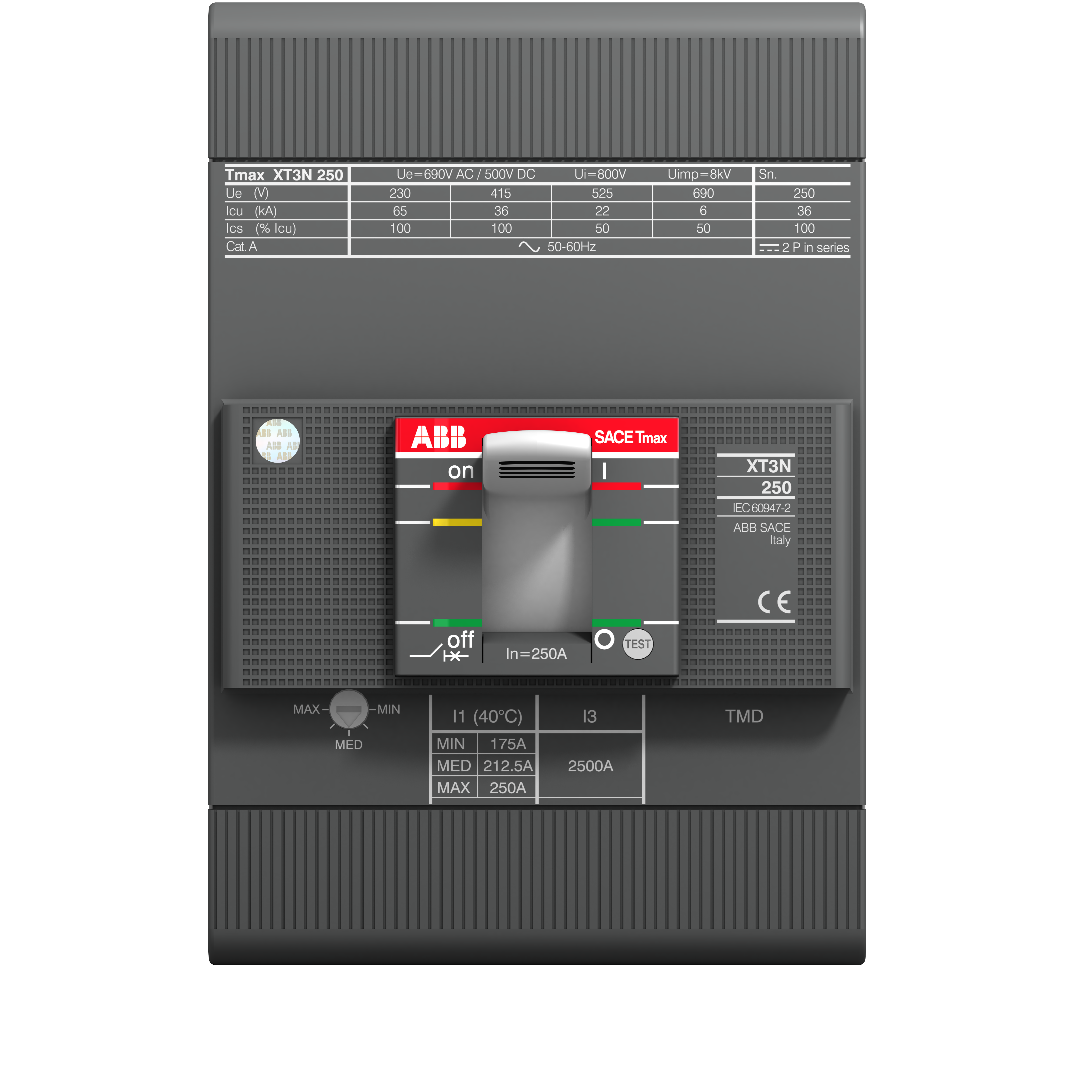

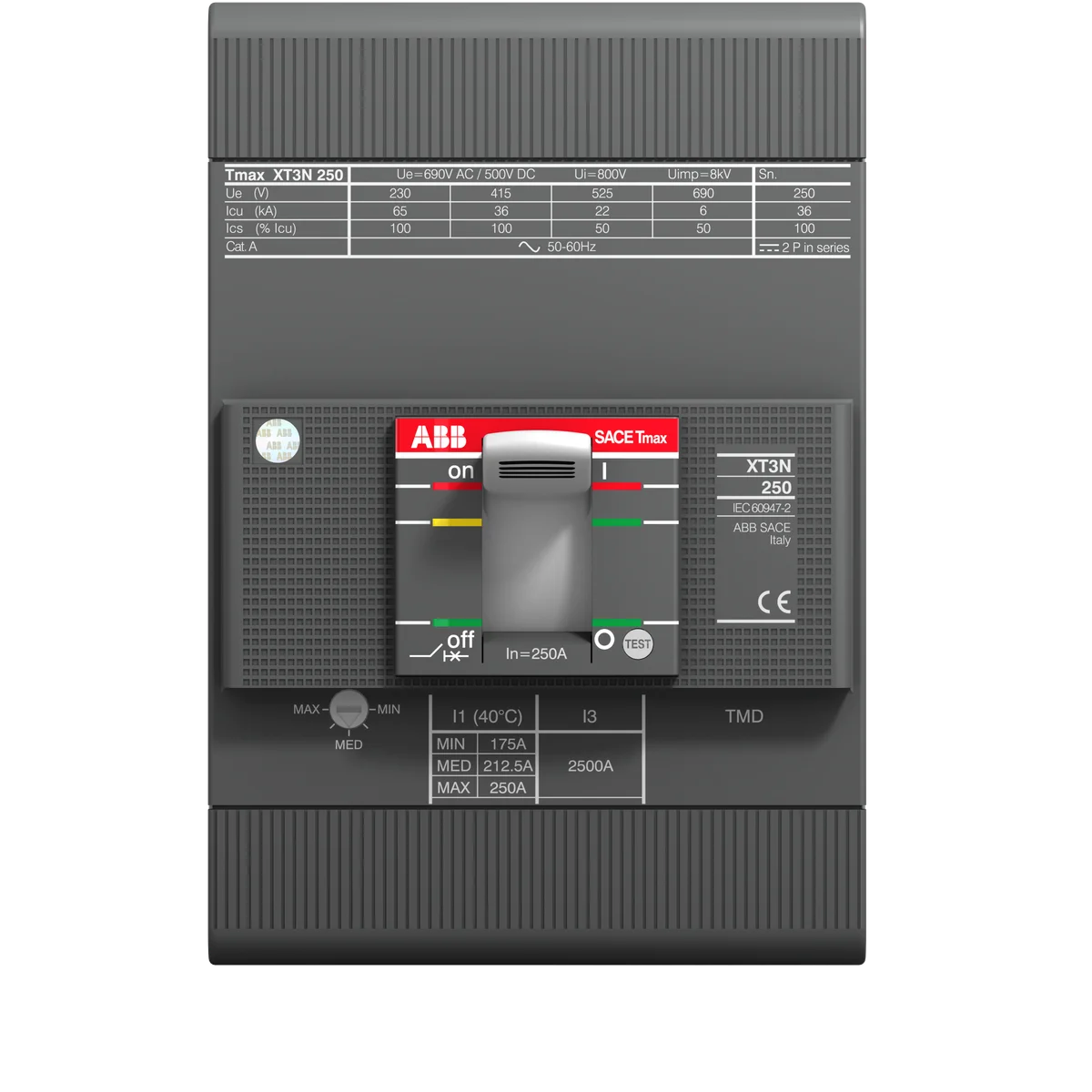

The ABB 1SDA068220R1 XT3S 250 TMD 200-2000 3p F F is a 3-pole fixed-mount power circuit-breaker from the Tmax XT3S series, engineered for transformer, generator, and installation protection with a rated current range of 200 A and a breaking capacity of 50 kA at 400 V AC. Designed to meet the demands of industrial power distribution panels, this moulded case circuit-breaker delivers reliable overcurrent and short-circuit protection in a compact 105 mm × 150 mm × 70 mm footprint weighing just 1.7 kg.
The XT3S 250 TMD 200-2000 3p F F is widely specified in industrial power distribution systems, motor control centres, switchboards, and panel boards where robust protection of transformers, generators, and feeder installations is essential. Its high breaking capacity of 50 kA makes it suitable for main incomer positions in factories, data centres, commercial buildings, and utilities. The fixed (F F) mounting configuration simplifies integration into standard enclosures, while the TMD (Thermal-Magnetic Device) trip unit provides dependable overload and short-circuit protection across the full 200 A current setting range.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Width | 105 mm |
|---|---|
| Product Net Height | 150 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.7 kg |
| Circuit Breaker Type to be Associated | Power Distribution |
|---|---|
| Product Main Type | SACE Tmax XT |
| Product Name | Leistungsschalter |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| Part number | 1SDA068220R1 |
|---|---|
| Type designation | XT3S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644021269 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Connecting Capacity Main Circuit | Busbar 85..192 mm² |
|---|---|
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 13.2 W |
| Rated Current (In) | 200 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2000 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC, 500 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA, (230 V AC) 50 kA, (240 V AC) 50 kA, (380 V AC) 27 kA, (415 V AC) 36 kA, (440 V AC) 20 kA, (500 V AC) 15 kA, (525 V AC) 10 kA, (690 V AC) 3 kA, (250 V DC) 2 Poles in Series 27 kA, (500 V DC) 3 Poles in Series 37.5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 40 kA, (500 V AC) 30 kA, (525 V AC) 20 kA, (690 V AC) 6 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 3 Poles in Series 50 kA |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M8 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 140...200 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT3 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 155 mm |
| Package Level 1 Height | 190 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Gross Weight | 1.724 kg |
| Package Level 1 EAN | 8015644021269 |
| Shipping weight | 1.724 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of XT3S is 200 A.
The tariff (HS) code on file for XT3S is 85362090.
The EAN (GTIN) of XT3S is 8015644021269.
XT3S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
