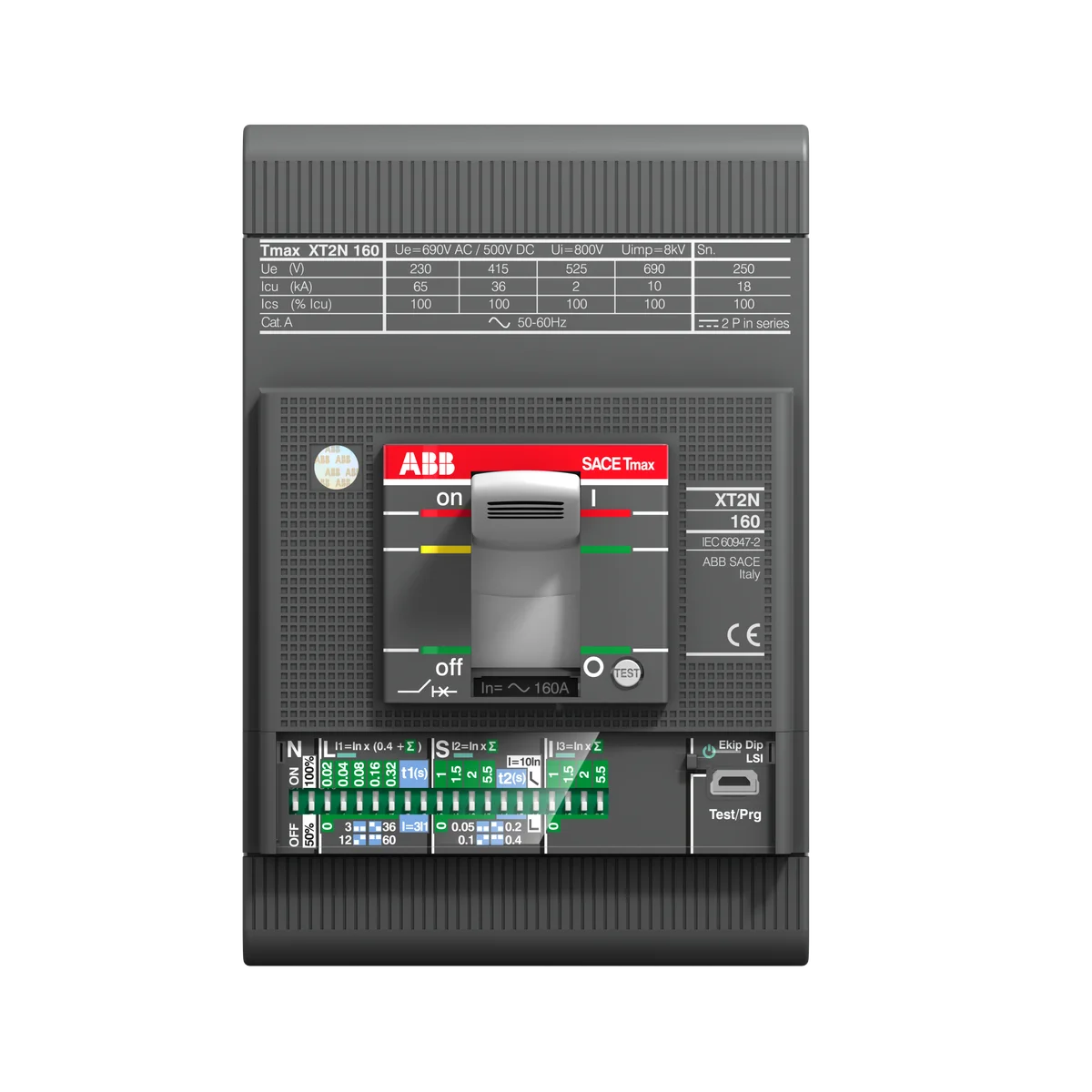

ABB 1SDA067804R1 XT2S 160 Ekip Dip LS/I In=160A 3p F F 160A 3-Pole Fixed Moulded Case Circuit Breaker

Rated current
160 A
Poles
3P
Breaking capacity
(400) 50 kA
EAN
8015644017002
Description

About the XT2S

The ABB 1SDA067804R1 XT2S 160 Ekip Dip LS/I In=160A 3p F F is a 160A, 3-pole, fixed-mounted moulded case power circuit-breaker engineered for transformer, generator, and installation protection. Part of the ABB Tmax XT2 series, the XT2S 160 Ekip Dip LS/I In=160A 3p F F delivers a breaking capacity of 50 kA at 400 V AC, making it a robust choice for demanding industrial power distribution applications.

Certifications & Standards

  • RoHS: Compliant with the Restriction of Hazardous Substances directive
  • REACH: Compliant with REACH chemical safety regulation
  • EU Directive 2011/65/EU & Amendment 2015/863: Compliant with the updated RoHS EU directive and its amendment
  • IEC 60947-2: Meets the international standard for low-voltage switchgear and controlgear — circuit-breakers
  • IEC60947-2: Verified compliance with IEC60947-2 circuit-breaker performance standard
  • UL 2799: Listed under UL 2799 standard
  • ATEX: Approved for use in potentially explosive atmospheres
  • CE: Carries CE marking, confirming conformity with applicable EU directives
  • VDE: Certified by VDE, the German Association for Electrical, Electronic & Information Technologies
  • WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life recycling

Applications & Use Cases

  • Transformer and generator protection in industrial power distribution panels
  • Installation protection in commercial and heavy industrial facilities
  • Control panel integration requiring compact, high-breaking-capacity circuit protection
  • Applications in potentially explosive atmospheres (ATEX-rated environments)
  • Industrial automation systems requiring reliable overcurrent and short-circuit protection
Specification

Full specification

62 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 90 mm
Product Net Height 130 mm
Product Net Depth / Length 82.5 mm
Product Net Weight 1.4 kg

Additional Information 5

Circuit Breaker Type to be Associated Power Distribution
Product Main Type SACE Tmax XT
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Version F
Show all 62 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SDA067804R1
Type designation XT2S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644017002
ETIM class EC000228
eCl@ss 27370409
E-Number (Sweden) 3182030
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 26

Connecting Capacity Main Circuit Busbar 32.5..100 mm²
Current Type AC
Electrical Durability 120 cycles per hour, 8000 cycle
Mechanical Durability 240 cycles per hour, 25000 cycle
Number of Poles 3P
Opening Time CB with SOR 30 ms, CB with UVR 30 ms
Order Multiple 1 piece
Power Loss at Rated Operating Conditions per Pole 10.8 W
Rated Current (In) 160 A
Rated Frequency (f) 50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA
Rated Uninterrupted Current (Iu) 160 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver Main Circuit M6
Release Ekip Dip LS/I
Release Type EL
Short-Circuit Performance Level S
Standards IEC60947-2
Sub-type XT2
Terminal Connection Type Front
Terminal Type Bolt
Tightening Torque 6 N·m

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 130 mm
Package Level 1 Height 208 mm
Package Level 1 Depth / Length 145 mm
Package Level 1 Gross Weight 1.71 kg
Package Level 1 EAN 8015644017002
Shipping weight 1.71 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock
