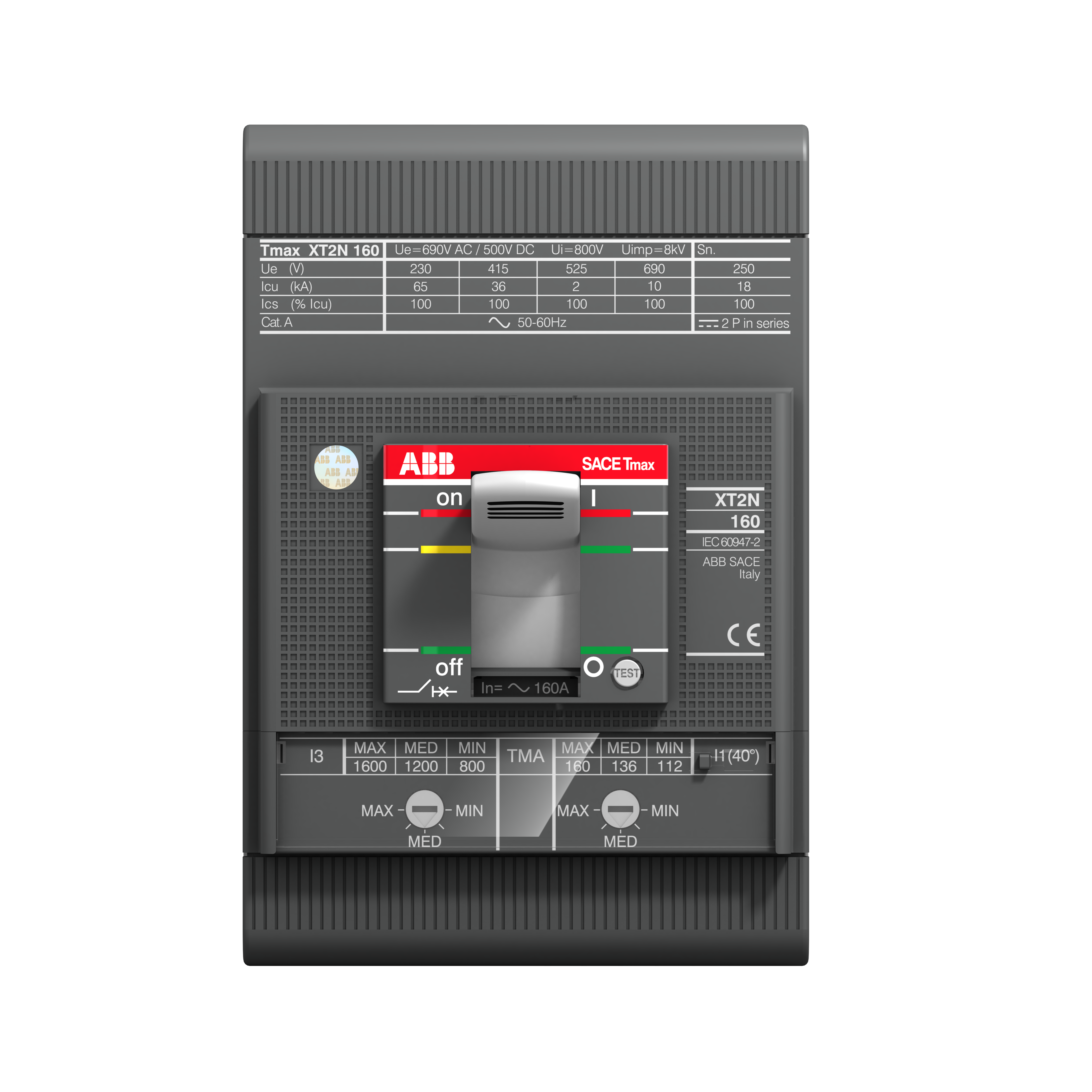

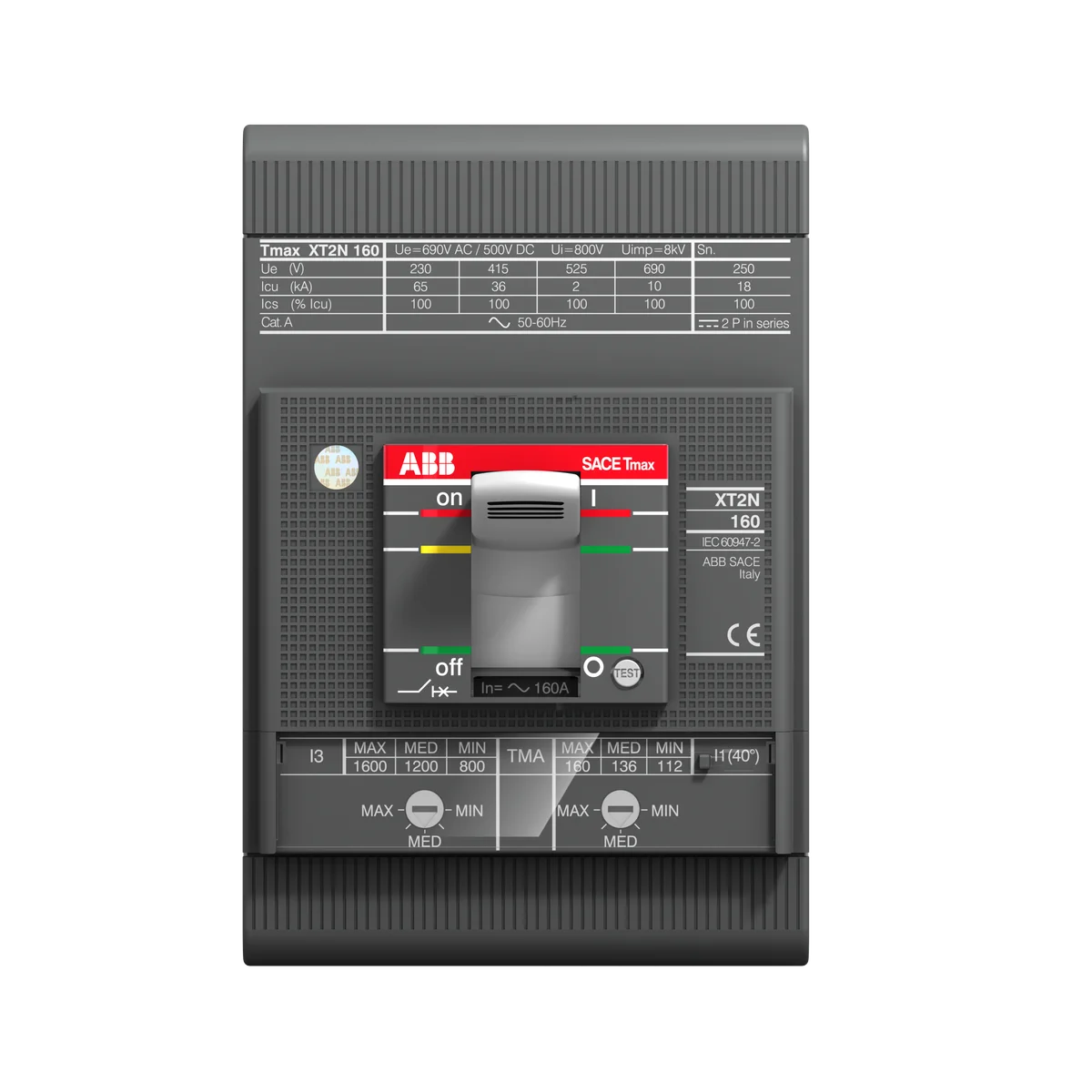

ABB 1SDA067767R1 XT2S 160 MA 52 Im=314...728 3p F F 52A 3-Pole Fixed Moulded Case Circuit Breaker

Rated current
52 A
Poles
3P
Breaking capacity
(400) 50 kA
EAN
8015644016630
Description

About the XT2S

The ABB 1SDA067767R1 — catalog number XT2S 160 MA 52 Im=314...728 3p F F — is a 52A, 3-pole fixed-mounted power circuit-breaker from the Tmax XT2 series, engineered for trafo, generator, and installation protection with a breaking capacity of 50 kA at 400 V AC. Designed for demanding industrial environments, this compact breaker delivers reliable short-circuit and overload protection in control panels and power distribution assemblies. Its magnetic-only (MA) release with adjustable instantaneous trip range Im=314...728 A makes it the ideal solution for transformer and generator feeder applications.

Certifications & Standards

  • CE: Conforms to applicable European Union safety, health, and environmental requirements
  • IEC 60947-2: Complies with the international standard for low-voltage circuit-breakers
  • VDE: Certified by the Association for Electrical, Electronic & Information Technologies (Germany)
  • ATEX: Suitable for use in potentially explosive atmospheres per ATEX directive
  • RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
  • Amendment 2015/863: Compliant with the RoHS 3 amendment expanding restricted substance list
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life recycling

Applications & Use Cases

  • Transformer feeder and generator protection in industrial power distribution
  • Short-circuit protection for installation panels and motor control centres
  • Fixed-mounted applications in low-voltage switchgear assemblies
  • Control panel integration requiring compact 3-pole magnetic-only circuit protection
  • Industrial automation and process control systems requiring IEC 60947-2 compliant breakers
Specification

Full specification

62 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 90 mm
Product Net Height 130 mm
Product Net Depth / Length 82.5 mm
Product Net Weight 1.4 kg

Additional Information 5

Circuit Breaker Type to be Associated Motor Protection
Product Main Type SACE Tmax XT
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Version F
Show all 62 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA067767R1
Type designation XT2S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644016630
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 27

Connecting Capacity Main Circuit Busbar 32.5..100 mm²
Current Type AC/DC
Electrical Durability 120 cycles per hour, 8000 cycle
Mechanical Durability 240 cycles per hour, 25000 cycle
Number of Poles 3P
Opening Time CB with SOR 30 ms, CB with UVR 30 ms
Order Multiple 1 piece
Power Loss at Rated Operating Conditions per Pole 4.8 W
Rated Current (In) 52 A
Rated Frequency (f) 50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii) 312…728 A
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC, 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu) 160 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver Main Circuit M6
Release MA
Release Type M
Short-Circuit Performance Level S
Standards IEC60947-2
Sub-type XT2
Terminal Connection Type Front
Terminal Type Bolt
Tightening Torque 6 N·m

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 130 mm
Package Level 1 Height 208 mm
Package Level 1 Depth / Length 145 mm
Package Level 1 Gross Weight 1.678 kg
Package Level 1 EAN 8015644016630
Shipping weight 1.678 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026
