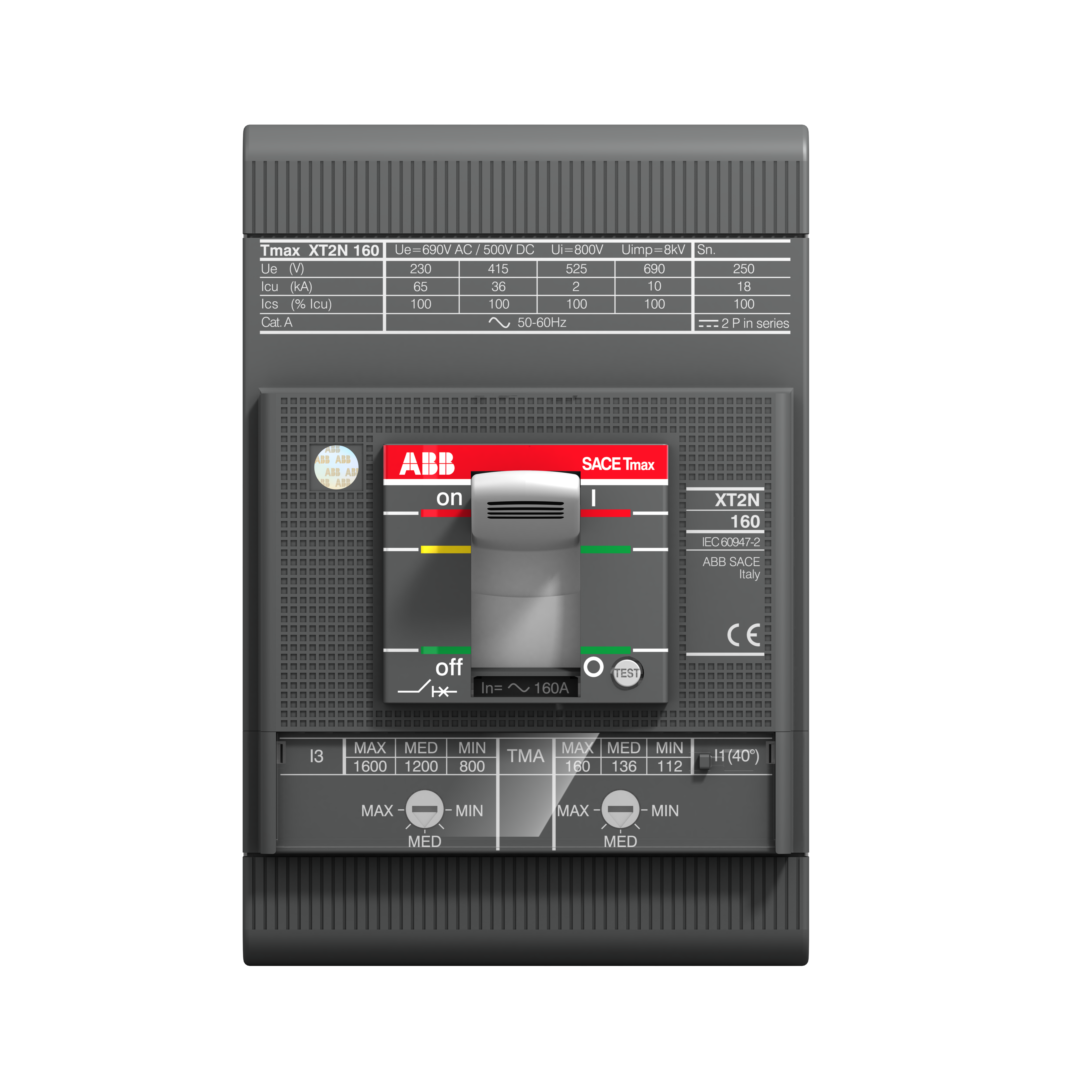

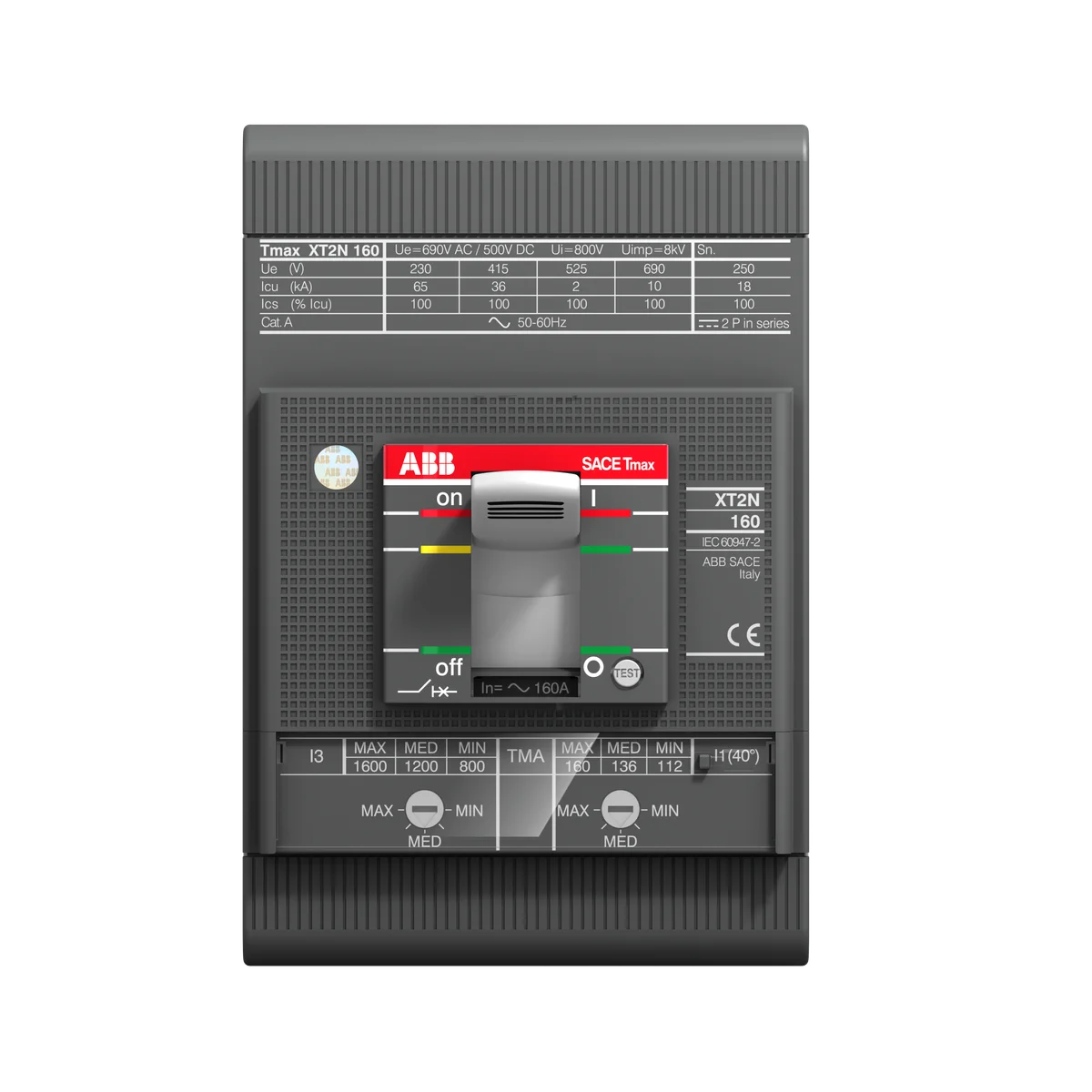

ABB 1SDA067560R1 XT2S 160 TMA 160-1600 3p F F 160A 690V AC 85kA Moulded Case Circuit Breaker

The ABB 1SDA067560R1 XT2S 160 TMA 160-1600 3p F F is a 3-pole, 160A fixed-mount power circuit-breaker engineered for transformer, generator, and installation protection in demanding industrial environments. Part of the ABB SACE Tmax XT series, this moulded case circuit-breaker delivers an ultimate breaking capacity (Icu) of 85kA at 220–240V AC and 50kA at 380–440V AC, with rated voltage coverage up to 690V AC and 500V DC, ensuring reliable short-circuit and overload protection across a wide range of power distribution applications.

Technical Specifications

Certifications & Standards

• IEC: Manufactured and tested in accordance with IEC international electrotechnical standards
• IEC 60947-2 / IEC60947-2: Compliant with the international standard for low-voltage switchgear and controlgear — circuit-breakers
• CE: Conformité Européenne marking confirming compliance with EU safety, health, and environmental requirements
• RoHS: Restriction of Hazardous Substances directive compliant — free from restricted hazardous materials
• GL: Germanischer Lloyd type approval for marine and offshore applications
• LR: Lloyd's Register certified for use in marine and energy sector installations
• REACH: Compliant with EU REACH regulation on chemical substances
• ATEX: Suitable for use in potentially explosive atmospheres per ATEX directive
• VDE: Verified and approved by VDE (Verband der Elektrotechnik) German electrotechnical testing institute
• WEEE: Compliant with Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

• Transformer and generator protection in industrial power distribution panels
• Installation protection for outgoing feeders in commercial and industrial facilities
• Motor feeder protection where high breaking capacity is required
• Marine and offshore electrical systems (GL, LR certified)
• Hazardous area installations requiring ATEX-rated components
• Control panel integration requiring compact fixed-mount 3-pole MCCBs
