ABB 1SDA067436R1 XT1S 160 TMD 160-1600 3p F F 160A 3-Pole Fixed Moulded Case Circuit Breaker

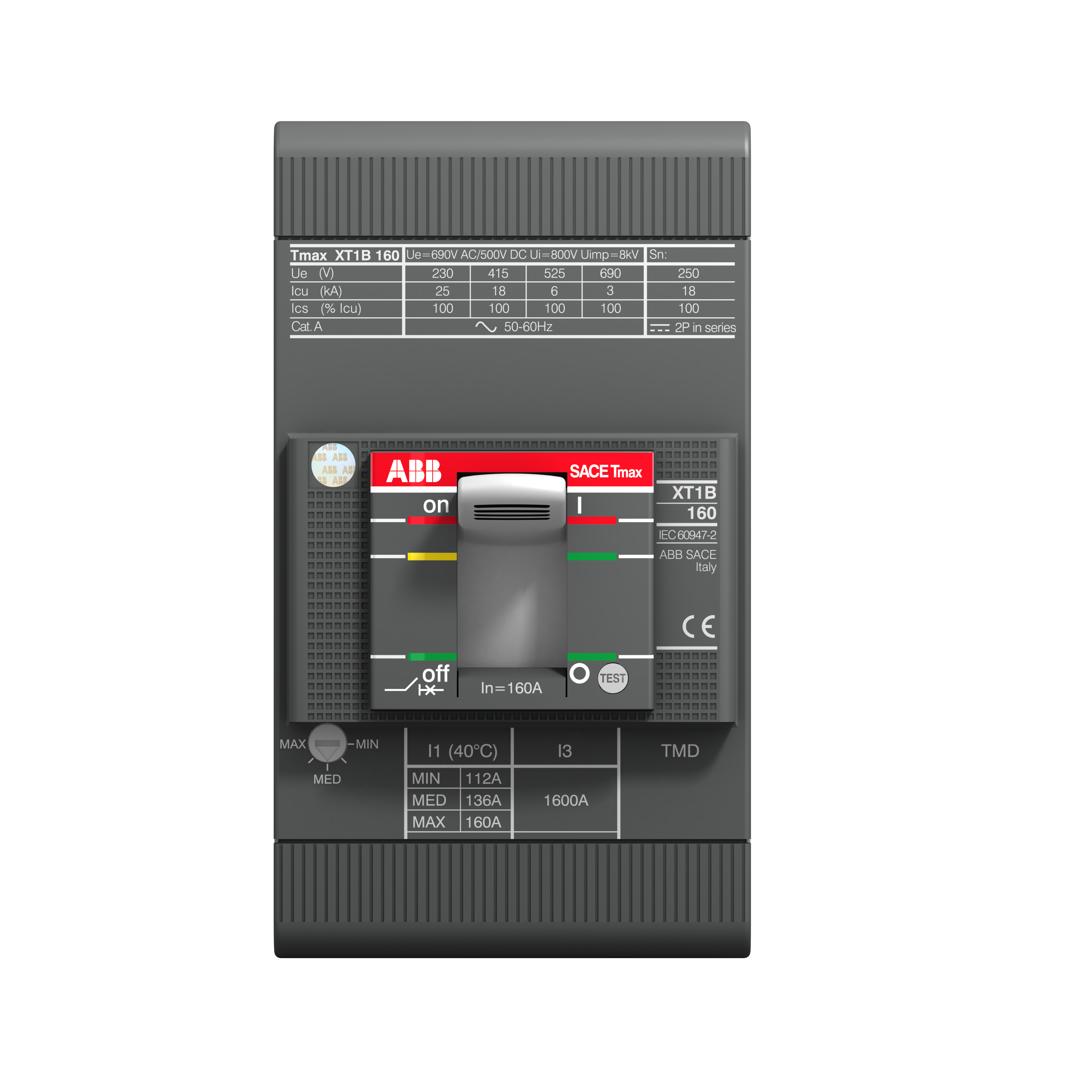

The ABB XT1S 160 TMD 160-1600 3p F F (SKU: 1SDA067436R1) is a 160 A, 3-pole fixed-mounted moulded case circuit breaker from the Tmax XT1 series, engineered for reliable protection of transformers, generators, and general electrical installations. Featuring a thermal-magnetic TMD trip unit with an adjustable overload range of 160–1600, this compact breaker delivers robust short-circuit and overload protection in demanding industrial environments. Its fixed (F F) configuration ensures straightforward panel integration, while its compact 76.2 × 130 × 70 mm footprint saves valuable cabinet space.

Technical Specifications

Certifications & Standards

• IEC 60947-2: International standard for low-voltage switchgear and controlgear — circuit breakers
• CE: Conformité Européenne — meets EU safety, health, and environmental protection requirements
• VDE: Verband der Elektrotechnik — German electrotechnical certification for safety and performance
• ATEX: Certified for use in potentially explosive atmospheres (EU Directive 2014/34/EU)
• UL 2799: UL standard for electrical systems for electric drive vehicles / relevant industrial electrical use
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU compliance
• EN 45555: General methods for the assessment of the ability to recover materials from electrical and electronic equipment
• WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU recycling and disposal regulations

Applications & Use Cases

• Transformer Protection: Provides reliable upstream protection for distribution and power transformers in industrial facilities.
• Generator Protection: Guards generating sets and standby power systems against overload and short-circuit faults.
• Installation Protection: Suitable for feeder and outgoing circuit protection in MCC panels, switchboards, and distribution boards.
• Hazardous Areas: ATEX certification enables deployment in zones with explosive atmosphere risk.
• Industrial Automation: Integrates into control panels for manufacturing, process, and infrastructure applications.

Frequently Asked Questions

Q: What does the TMD trip unit mean on the XT1S 160 TMD 160-1600 3p F F?
A: TMD stands for Thermal-Magnetic with adjustable overload (Ir) and fixed short-circuit (Im) settings. The range 160–1600 denotes the adjustable overload current setting band.

Q: What is the mounting style of this breaker?
A: The designation "F F" indicates fixed mounting — both the breaker itself and its connection terminals are fixed, meaning it is bolted directly into the switchboard or panel.

Q: Is the ABB 1SDA067436R1 suitable for use in explosive atmospheres?
A: Yes, the XT1S 160 TMD 160-1600 3p F F carries ATEX certification, making it suitable for installation in potentially explosive environments in accordance with EU Directive 2014/34/EU.
