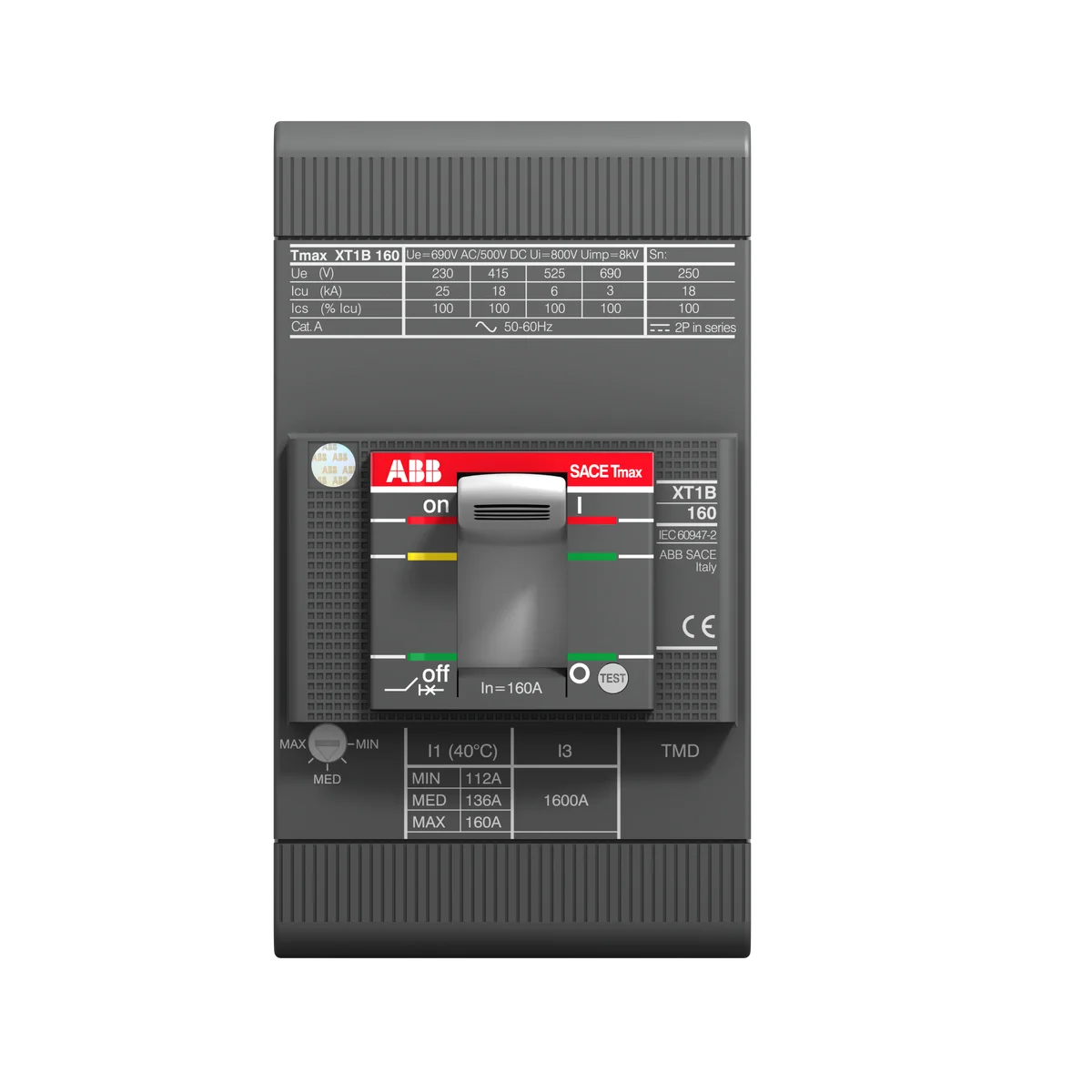

ABB 1SDA067434R1 XT1S 160 TMD 100-1000 3p F F 3-Pole 100A Fixed Moulded Case Circuit Breaker
Other ratings in ABB Tmax XT
All 6 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 63 | 1SDA067432R1 | Low stock | $131.49 | |
| 80 | 1SDA067433R1 | In stock | $131.49 | |
| 100 | 1SDA067434R1This part | In stock | $131.49 | |
| 125 | 1SDA067435R1 | In stock | $161.51 | |
| 160 | 1SDA067436R1 | In stock | $167.67 |
Description
About the XT1S
About the XT1S
The ABB XT1S 160 TMD 100-1000 3p F F (SKU: 1SDA067434R1) is a 3-pole fixed-mount power circuit breaker from the Tmax XT1 series, designed for transformer, generator, and installation protection in industrial control panels. Rated for 100 A with a compact fixed footprint of 76.2 mm × 130 mm × 70 mm, this breaker delivers reliable overcurrent and short-circuit protection in demanding power distribution applications.
Certifications & Standards
- IEC 60947-2: International standard for low-voltage switchgear and controlgear — circuit breakers
- CE: European conformity marking for health, safety, and environmental protection
- VDE: German Association for Electrical, Electronic & Information Technologies certification
- ATEX: European directive compliance for equipment used in explosive atmospheres
- UL 2799: Underwriters Laboratories standard for electrical systems
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
- WEEE: Waste Electrical and Electronic Equipment Directive compliance for responsible disposal
Applications & Use Cases
- Transformer feeder and secondary protection in LV distribution boards
- Generator output protection and load-side switching
- Industrial installation protection in motor control centres (MCCs)
- Commercial and industrial control panel main or branch circuit protection
- Applications requiring ATEX-rated circuit protection in potentially explosive environments
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 76.2 mm |
|---|---|
| Product Net Height | 130 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.1 kg |
Additional Information 5
| Circuit Breaker Type to be Associated | Power Distribution |
|---|---|
| Product Main Type | SACE Tmax XT |
| Product Name | Leistungsschalter |
| Product Type | Automatic Circuit Breaker |
| Version | F |
Show all 63 specifications ↓ Show less ↑53 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SDA067434R1 |
|---|---|
| Type designation | XT1S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644013288 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Technical 28
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
|---|---|
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 7 W |
| Rated Current (In) | 100 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1000 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC, 500 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 80 kA, (230 V AC) 80 kA, (240 V AC) 80 kA, (380 V AC) 50 kA, (415 V AC) 37.5 kA, (440 V AC) 25 kA, (500 V AC) 18 kA, (525 V AC) 17.5 kA, (690 V AC) 5 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 35 kA, (690 V AC) 8 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 70...100 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
External Classifications and Standards 4
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 128 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 143 mm |
| Package Level 1 Gross Weight | 1.17 kg |
| Package Level 1 EAN | 8015644013288 |
| Shipping weight | 1.17 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SDA067434R1
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 6 ratings in ABB Tmax XT
ABB ABB Tmax XT series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 50 A | 1SDA067431R1 | XT1S | In stock | $131.49 | |||
| 63 A | 1SDA067432R1 | XT1S | Low stock | $131.49 | |||
| 80 A | 1SDA067433R1 | XT1S | In stock | $131.49 | |||
| 100 A | 1SDA067434R1 This part | XT1S | In stock | $131.49 | |||
| 125 A | 1SDA067435R1 | XT1S | In stock | $161.51 | |||
| 160 A | 1SDA067436R1 | XT1S | In stock | $167.67 |
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC60947-2
Quick answers
Questions about the XT1S
What is the rated current of XT1S?
The rated current of XT1S is 100 A.
What is the HS code of XT1S for customs?
The tariff (HS) code on file for XT1S is 85362090.
What is the EAN of XT1S?
The EAN (GTIN) of XT1S is 8015644013288.
Where does XT1S ship from, and how fast?
XT1S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
