Part number
1SDA067428R1
Model no
XT1N
$260.13 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

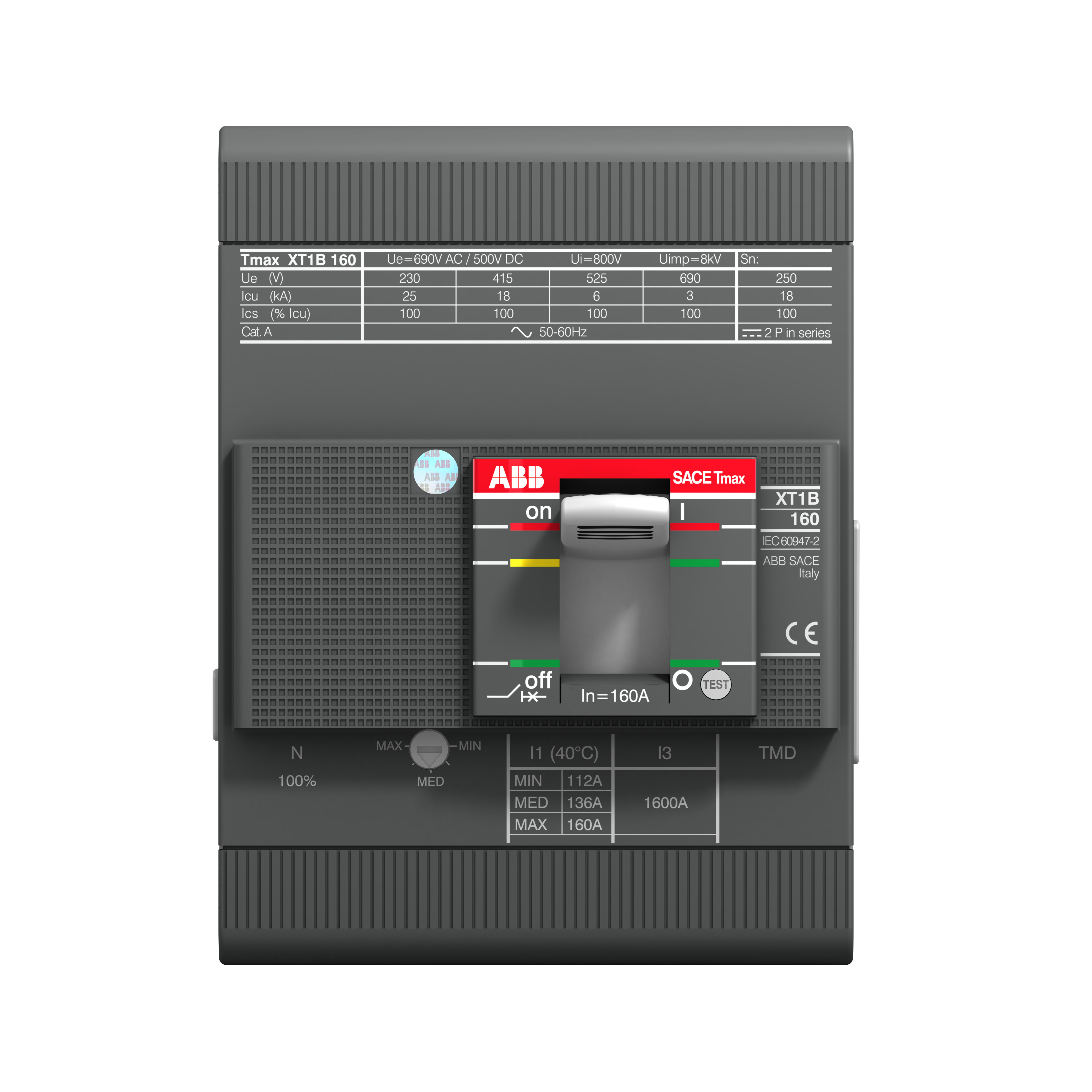

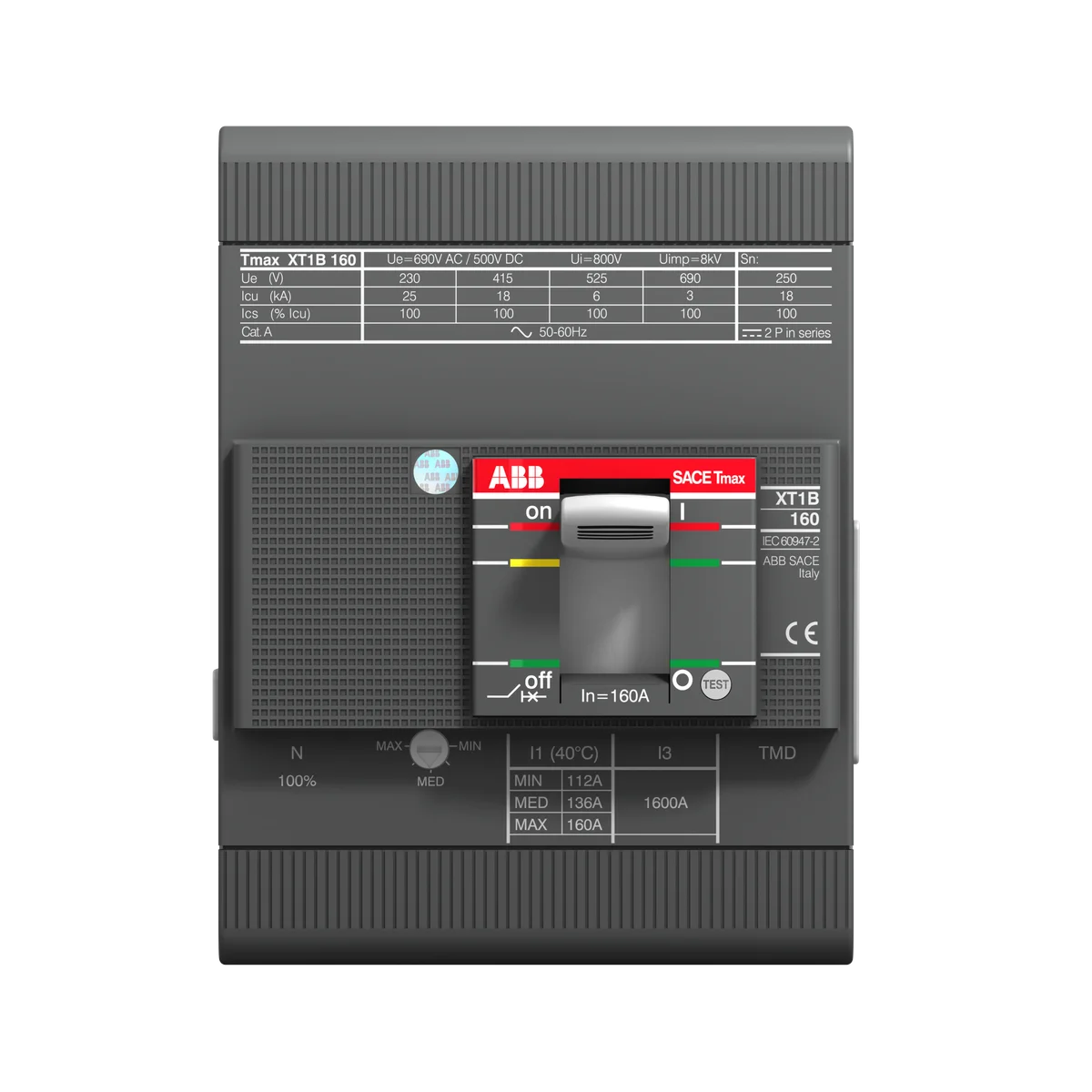

ABB 1SDA067428R1 XT1N 160 TMD 160-1600 4p F F InN=100% 4-Pole 160A Fixed Moulded Case Circuit Breaker

Rated current
160 A
Poles
4P
Breaking capacity
(400) 36 kA
EAN
8015644013226
Description

About the XT1N

The ABB 1SDA067428R1 XT1N 160 TMD 160-1600 4p F F InN=100% is a 4-pole, 160 A fixed-mount moulded case circuit-breaker from the Tmax XT1 series, engineered for transformer, generator, and installation protection in industrial distribution systems. Featuring a thermal-magnetic TMD trip unit with full 100% neutral pole protection (InN=100%), this breaker delivers dependable overload and short-circuit interruption in a compact 101.6 × 130 × 70 mm footprint. Certified to IEC 60947-2, CE, ATEX, and multiple additional standards, the XT1N 160 TMD 160-1600 4p F F InN=100% is the specification-ready choice for panel builders and procurement engineers worldwide.

Certifications & Standards

  • IEC 60947-2: International standard for low-voltage switchgear — circuit-breakers
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • VDE: German Association for Electrical, Electronic & Information Technologies certification
  • ATEX: Certified for use in potentially explosive atmospheres (EU Directive 2014/34/EU)
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
  • EU Directive 2011/65/EU: RoHS recast directive compliance
  • Amendment 2015/863: RoHS Annex II amendment — restricted substances compliance
  • EN 45555: General methods for assessing the energy efficiency of networked standby products
  • UL 2799: Standard for Electrical Systems for Stationary Fuel Cell Power Systems
  • WEEE: Waste Electrical and Electronic Equipment Directive — responsible end-of-life disposal

Applications & Use Cases

  • Transformer secondary-side protection in industrial and commercial power distribution panels
  • Generator output protection for standby and prime-power applications
  • Feeder and installation protection in LV switchboards up to 160 A
  • 4-wire systems requiring full 100% neutral pole protection (InN=100%)
  • Control panels in manufacturing, utilities, oil & gas, and building services
  • ATEX-rated installations in hazardous area electrical systems
Specification

Full specification

64 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 101.6 mm
Product Net Height 130 mm
Product Net Depth / Length 70 mm
Product Net Weight 1.4 kg

Additional Information 5

Circuit Breaker Type to be Associated Power Distribution
Product Main Type SACE Tmax XT
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Version F
Show all 64 specifications ↓ Show less ↑54 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SDA067428R1
Type designation XT1N
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644013226
ETIM class EC000228
eCl@ss 27370409
E-Number (Sweden) 3182447
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 28

Connecting Capacity Main Circuit Busbar 45.5 ... 80 mm²
Current Type AC/DC
Electrical Durability 120 cycles per hour, 8000 cycle
Mechanical Durability 240 cycles per hour, 25000 cycle
Number of Poles 4P
Opening Time CB with SOR 30 ms, CB with UVR 30 ms
Order Multiple 1 piece
Power Loss at Rated Operating Conditions per Pole 15 W
Rated Current (In) 160 A
Rated Frequency (f) 50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii) 1600 A
Rated Insulation Voltage (Ui) 800 V
Rated Operational Voltage 690 V AC, 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 50 kA, (230 V AC) 50 kA, (240 V AC) 50 kA, (380 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 18 kA, (500 V AC) 15 kA, (525 V AC) 11 kA, (690 V AC) 5 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 3 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 65 kA, (230 V AC) 65 kA, (240 V AC) 65 kA, (380 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 36 kA, (500 V AC) 30 kA, (525 V AC) 22 kA, (690 V AC) 6 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu) 160 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver Main Circuit M6
Release TMD
Release Type TM
Setting Range 112...160 A
Short-Circuit Performance Level N
Standards IEC60947-2
Sub-type XT1
Terminal Connection Type Front
Terminal Type Bolt
Tightening Torque 6 N·m

External Classifications and Standards 4

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 128 mm
Package Level 1 Height 135 mm
Package Level 1 Depth / Length 143 mm
Package Level 1 Gross Weight 1.47 kg
Package Level 1 EAN 8015644013226
Shipping weight 1.47 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA067428R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • ATEX
  • IEC60947-2
Quick answers

Questions about the XT1N

What is the rated current of XT1N?

The rated current of XT1N is 160 A.

What is the HS code of XT1N for customs?

The tariff (HS) code on file for XT1N is 85362090.

What is the EAN of XT1N?

The EAN (GTIN) of XT1N is 8015644013226.

Where does XT1N ship from, and how fast?

XT1N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
