ABB 1SDA067124R1 RC Inst HV 85...690Vac XT1 4p F Circuit Breaker Accessory

% $-436.79

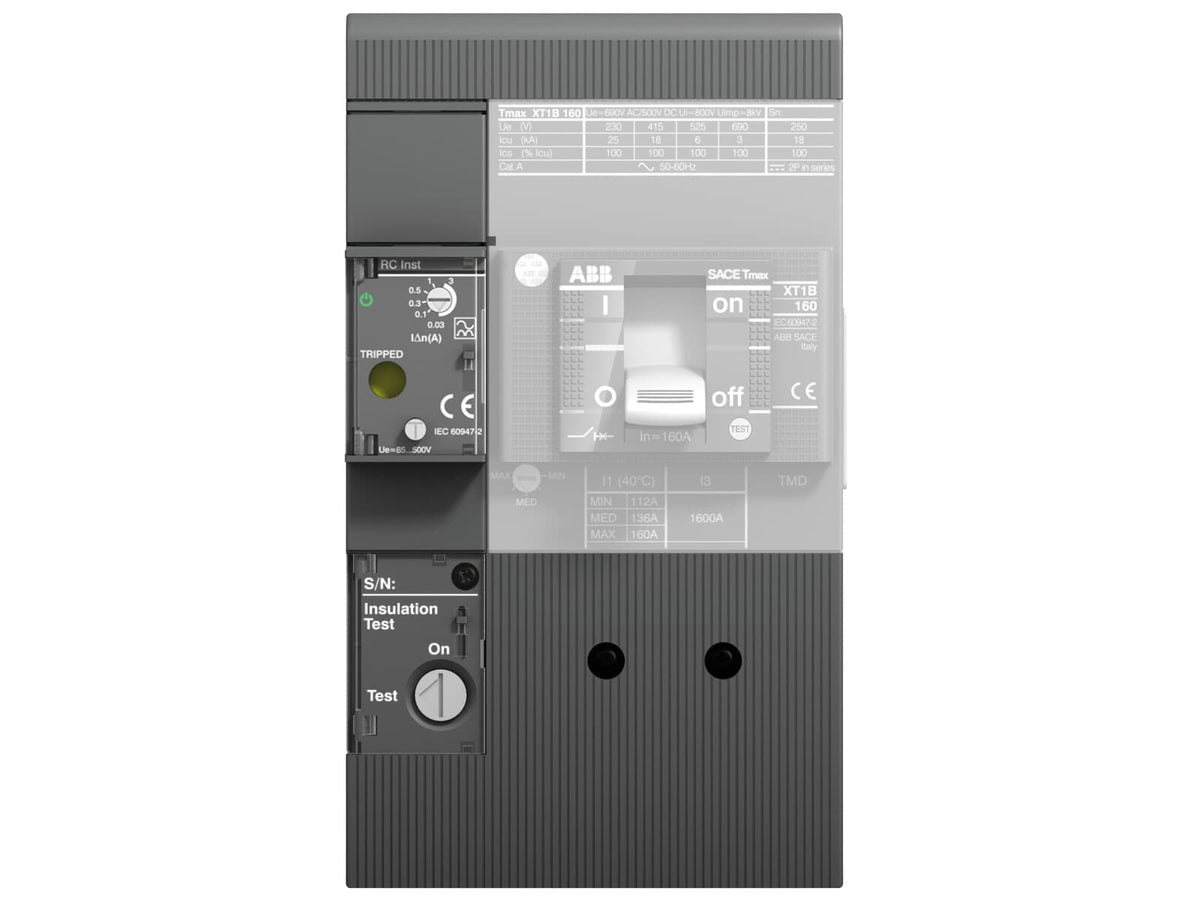

ABB 1SDA067124R1 RC Inst residual current release – Tmax XT1 4P fixed
ABB 1SDA067124R1 RC Inst residual current release – Tmax XT1 4P fixed

ABB 1SDA067124R1 RC Inst HV 85...690Vac XT1 4p F Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA067124R1
Catalog No: RC Inst HV 85...690Vac XT1 4p F
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Breaking Type: RC Inst (instantaneous residual current release)
Rated Voltage: 85/690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$436.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA067124R1 is the RC Inst HV 85...690Vac XT1 4p F residual current release, an instantaneous earth-fault trip add-on for fixed four-pole Tmax XT1 moulded case circuit breakers across the 85-690 V AC supply range. It mounts on the breaker body and trips on uncompensated residual current without adjustable delay. EAN 8015644010317.

Technical Specifications

SKU 1SDA067124R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation RC Inst HV 85...690Vac XT1 4p F
EAN 8015644010317
Compatible Frame Tmax XT1, Fixed version
Number of Poles 4P
Operating Voltage Range 85...690 V AC
Release Type RC Inst (instantaneous residual current)
Configuration Type Loose or configurable
Net Weight 1.236 kg

Certifications & Standards

  • IEC 60947-2

Selection Notes

Choose the Inst (instantaneous) version over a selective release when the circuit has no downstream residual current devices to coordinate with and the priority is the fastest possible earth-fault trip. The 85-690 V AC operating range covers both 400 V and 690 V distribution without needing a separate release for each voltage class.

Technical Details

Short Description
Instantaneous residual current release, 85-690 V AC, for fixed four-pole ABB Tmax XT1 circuit breakers.
Rated Voltage (VAC)
85/690 V AC
Mounting Type
Fixed
Catalog No
RC Inst HV 85...690Vac XT1 4p F
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
RC Inst HV 85...690Vac XT1 4p F
Tariff Code
853890
