ABB 1SDA067123R1 RC Sel HV 85...690Vac XT1 3p F Circuit Breaker Accessory

% $-419.29

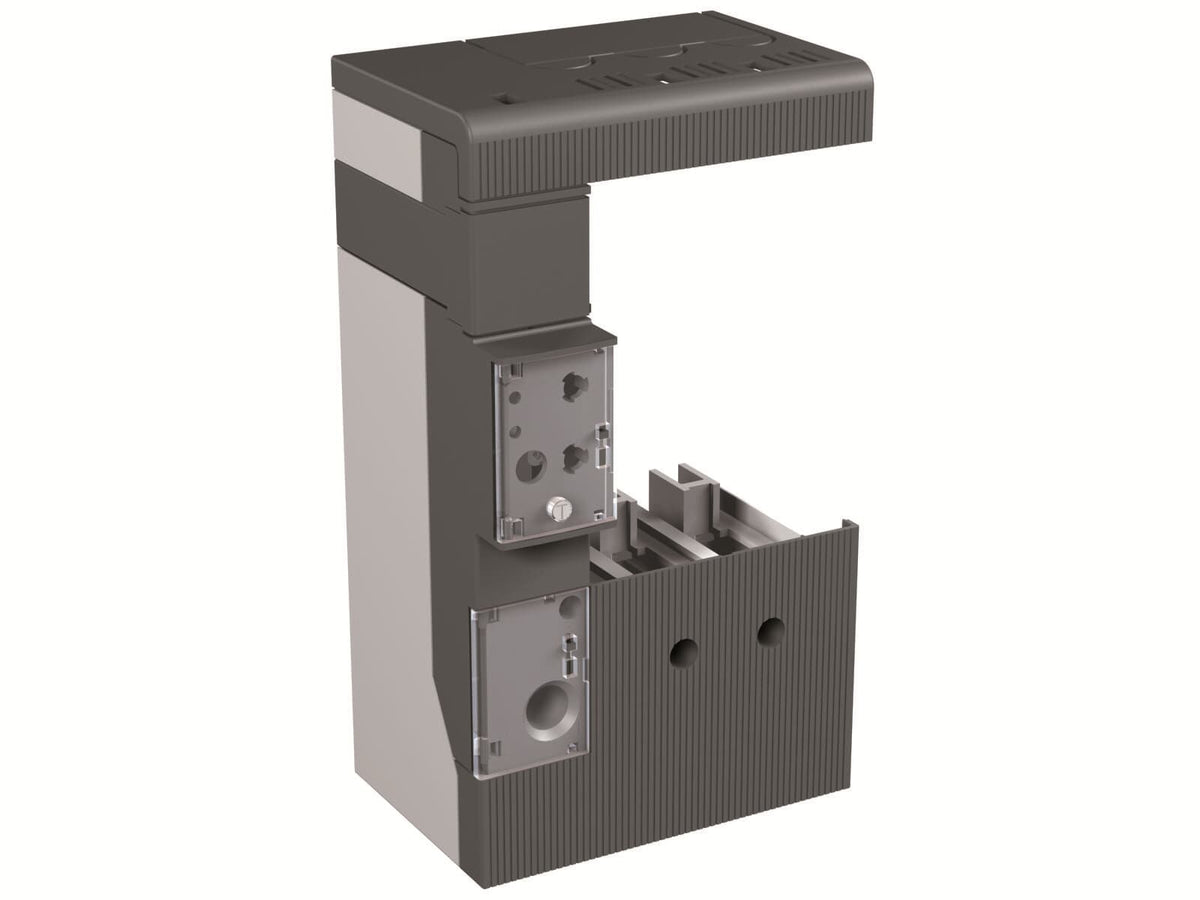

ABB 1SDA067123R1 RC Sel residual current release – Tmax XT1 3P fixed
ABB 1SDA067123R1 RC Sel residual current release – Tmax XT1 3P fixed

ABB 1SDA067123R1 RC Sel HV 85...690Vac XT1 3p F Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA067123R1
Catalog No: RC Sel HV 85...690Vac XT1 3p F
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Breaking Type: RC Sel (selective residual current release)
Rated Voltage: 85/690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$419.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Catalog designation RC Sel HV 85...690Vac XT1 3p F identifies ABB 1SDA067123R1 as a selective residual current release for fixed three-pole Tmax XT1 circuit breakers, rated 85-690 V AC. Its selective tripping delay lets it sit upstream of faster residual current devices without nuisance tripping on a brief downstream fault. EAN 8015644010201.

Technical Specifications

SKU 1SDA067123R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation RC Sel HV 85...690Vac XT1 3p F
EAN 8015644010201
Compatible Frame Tmax XT1, Fixed version
Number of Poles 3P
Operating Voltage Range 85...690 V AC
Release Type RC Sel (selective residual current)
Configuration Type Loose or configurable
Net Weight 1.097 kg

Certifications & Standards

  • IEC 60947-2

Selection Notes

Select this three-pole version for three-wire Tmax XT1 circuits that still need selective residual current protection; the 1.097 kg weight and 3P rating distinguish it from the four-pole Sel releases in the same HV 85-690 V AC range. The built-in delay is what sets the Sel type apart from an instantaneous release.

Technical Details

Short Description
Selective residual current release, 85-690 V AC, for fixed three-pole ABB Tmax XT1 circuit breakers.
Rated Voltage (VAC)
85/690 V AC
Mounting Type
Fixed
Catalog No
RC Sel HV 85...690Vac XT1 3p F
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
RC Sel HV 85...690Vac XT1 3p F
Tariff Code
853890
