ABB 1SDA066675R1 PB 100mm 4pcs XT2-XT4 3p KIT PA.DI.PH.LO Accessory Kit (Phase Divider Partitions)

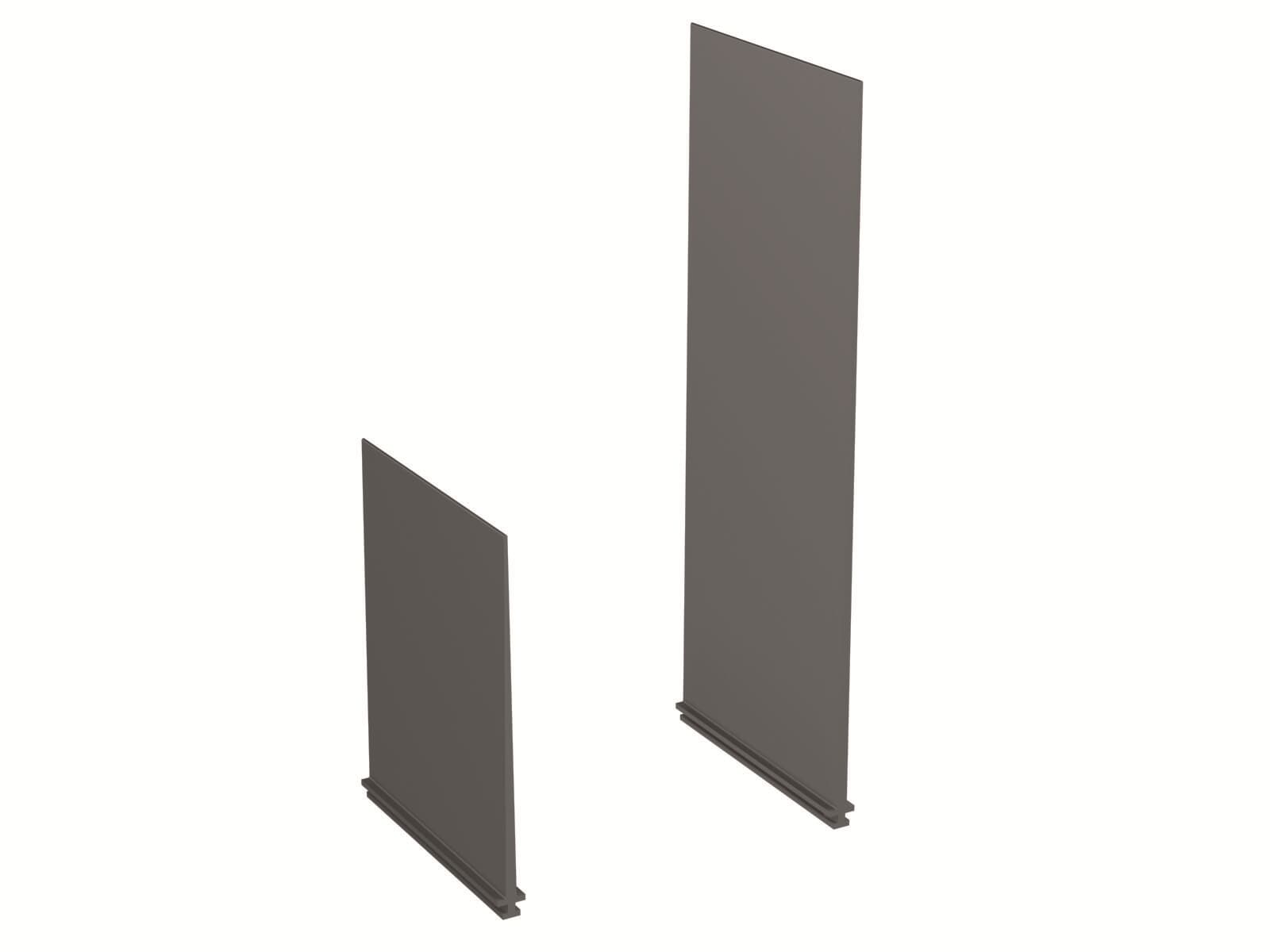

The ABB 1SDA066675R1 — catalog number PB 100mm 4pcs XT2-XT4 3p KIT PA.DI.PH.LO — is a genuine ABB accessory kit supplying phase divider partitions for Tmax XT2 and XT4 3-pole moulded case circuit breakers. This kit provides four 100 mm phase divider insulating partitions that ensure safe phase segregation inside the breaker assembly, reducing the risk of inter-phase flashover and supporting compliant installation in industrial control panels and distribution boards.

Technical Specifications

Certifications & Standards

• CE: Conforms to applicable European Union directives for electrical equipment placed on the EU market.
• RoHS: Compliant with EU Directive 2011/65/EU restricting hazardous substances in electrical and electronic equipment.
• REACH: Meets EU REACH Regulation (EC) No 1907/2006 requirements for chemical substance safety.
• WEEE: Registered under EU Directive 2012/19/EU for waste electrical and electronic equipment take-back and recycling obligations.
• IEC 60947-2: Designed and tested in accordance with IEC 60947-2, the international standard for low-voltage circuit breakers and associated accessories.

Applications & Use Cases

• Phase segregation inside ABB Tmax XT2 and XT4 3-pole moulded case circuit breakers
• Industrial control panels and motor control centres (MCC) requiring enhanced inter-phase isolation
• Distribution boards in manufacturing plants, utilities, and infrastructure projects
• Upgrade or replacement of worn phase divider partitions during scheduled maintenance
• New installation projects specifying 100 mm partition depth for XT2/XT4 3P breakers
