ABB 1SDA066472R1 MOE-E XT2-XT4 220..250V ac/dc X REM.CONT Circuit Breaker Accessory

% $-697.75

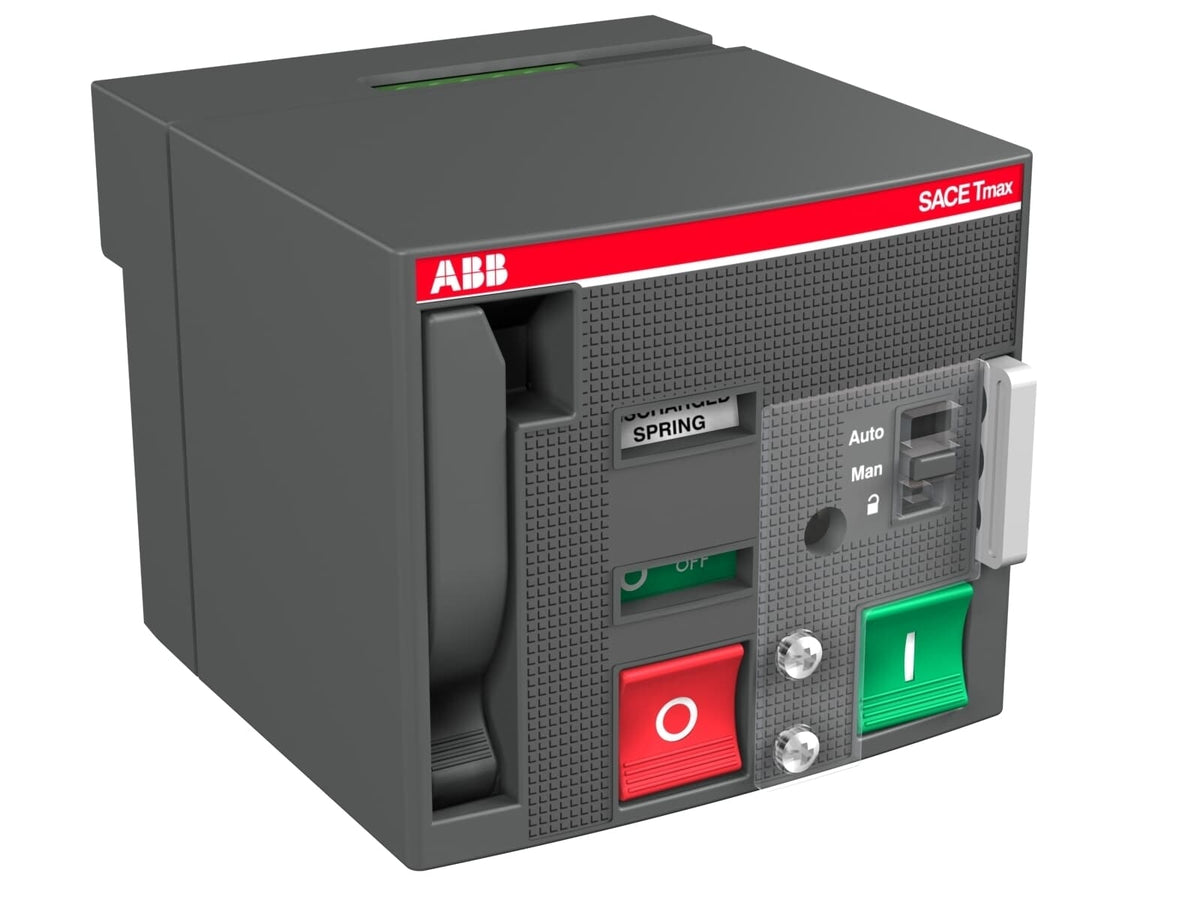

ABB 1SDA066472R1 MOE-E motor operator for Tmax XT2-XT4 breaker remote control
ABB 1SDA066472R1 MOE-E motor operator for Tmax XT2-XT4 breaker remote control

ABB 1SDA066472R1 MOE-E XT2-XT4 220..250V ac/dc X REM.CONT Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA066472R1
Catalog No: MOE-E XT2-XT4 220..250V ac/dc X REM.CONT
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Rated Voltage: 220/250 V AC/DC
Communication: Modbus (via Ekip Com)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$697.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA066472R1 is a MOE-E motor operator for remote control of Tmax XT2 to XT4 circuit breakers fitted with Ekip LSI, LSIG, M or LRIU trip units and an Ekip Com communication module. It operates on 220-250 V AC or DC and enables Modbus-based remote open/close control. The unit is supplied loose or configurable, one piece per order.

Technical Specifications

SKU 1SDA066472R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation MOE-E XT2-XT4 220..250V ac/dc X REM.CONT
Compatible Breakers Tmax XT2-XT4 with Ekip LSI, LSIG, M or LRIU and Ekip Com
Rated Voltage (Ur) 220...250 V AC / 220...250 V DC
Current Type AC/DC
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 1.372 kg
EAN 8015644003784

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

The MOE-E pairs only with XT2-XT4 breakers running Ekip LSI, LSIG, M or LRIU electronic trip units through an Ekip Com module, since the remote control signal routes through that communication interface. Its 220-250 V AC/DC input matches standard control-circuit supplies, avoiding a separate control transformer. Select a manually operated breaker instead when remote Modbus open/close control is not required.

Technical Details

Short Description
ABB MOE-E motor operator for remote Modbus control of Tmax XT2-XT4 breakers, 220-250 V AC/DC.
Rated Voltage (VAC)
220/250 V AC/DC
Catalog No
MOE-E XT2-XT4 220..250V ac/dc X REM.CONT
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
MOE-E XT2-XT4 220..250V ac/dc X REM.CONT
Tariff Code
853890
