ABB 1SDA066333R1 SOR-C XT2-XT4 W 380-440 Vac Circuit Breaker Accessory

% $-52.61

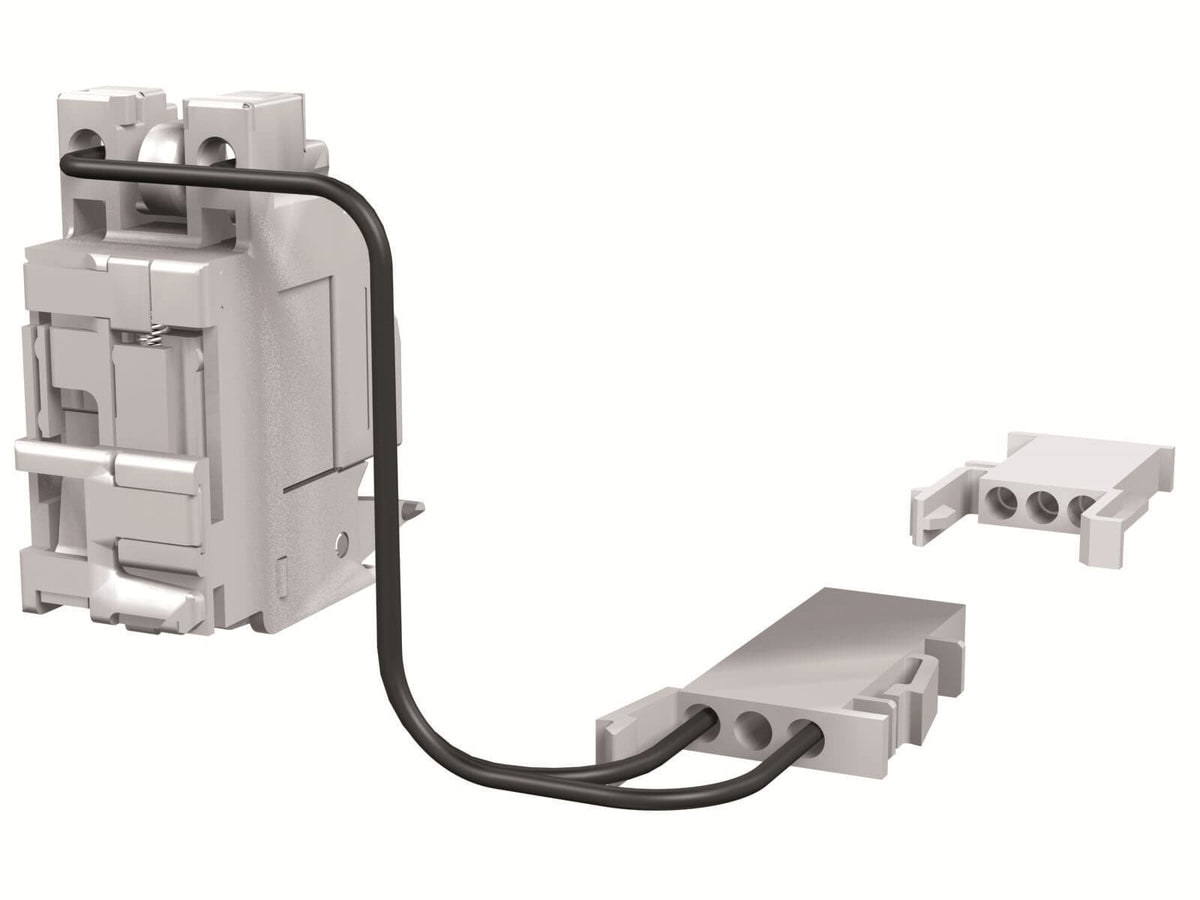

ABB 1SDA066333R1 SOR-C shunt opening release – Tmax XT2-XT4 withdrawable 380-440V AC
ABB 1SDA066333R1 SOR-C shunt opening release – Tmax XT2-XT4 withdrawable 380-440V AC

ABB 1SDA066333R1 SOR-C XT2-XT4 W 380-440 Vac Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA066333R1
Catalog No: SOR-C XT2-XT4 W 380-440 Vac
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Breaking Type: Shunt Opening Release (SOR)
Rated Voltage: 380/440 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$52.61

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA066333R1, the SOR-C XT2-XT4 W 380-440 Vac shunt opening release, remotely trips withdrawable Tmax XT2 and XT4 circuit breakers when its coil is energized at 380-440 V AC. It is factory-wired rather than supplied with loose leads, for direct connection to a remote trip circuit controlled from outside the panel. EAN 8015644002404.

Technical Specifications

SKU 1SDA066333R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation SOR-C XT2-XT4 W 380-440 Vac
EAN 8015644002404
Compatible Frame Tmax XT2, XT4, Withdrawable version
Release Type Shunt Opening Release (SOR), factory-wired
Coil Voltage 380...440 V AC
Current Type AC
Configuration Type Loose or configurable
Net Weight 0.12 kg

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

Specify this shunt release where a remote protection relay or emergency stop circuit must open a withdrawable XT2 or XT4 breaker on command; the factory-wired '-C' version connects directly rather than requiring field wiring of loose leads. Confirm the control source matches 380-440 V AC before specifying.

Technical Details

Short Description
Wired shunt opening release, 380-440 V AC, for withdrawable ABB Tmax XT2/XT4 circuit breakers.
Rated Voltage (VAC)
380/440 V AC
Mounting Type
Withdrawable
Catalog No
SOR-C XT2-XT4 W 380-440 Vac
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
SOR-C XT2-XT4 W 380-440 Vac
Tariff Code
853890
