ABB 1SDA063042R1 T7H 1600 PR231/P LS/I In=1600A 3p F F M 1600A 3-Pole Fixed Molded Case Circuit Breaker

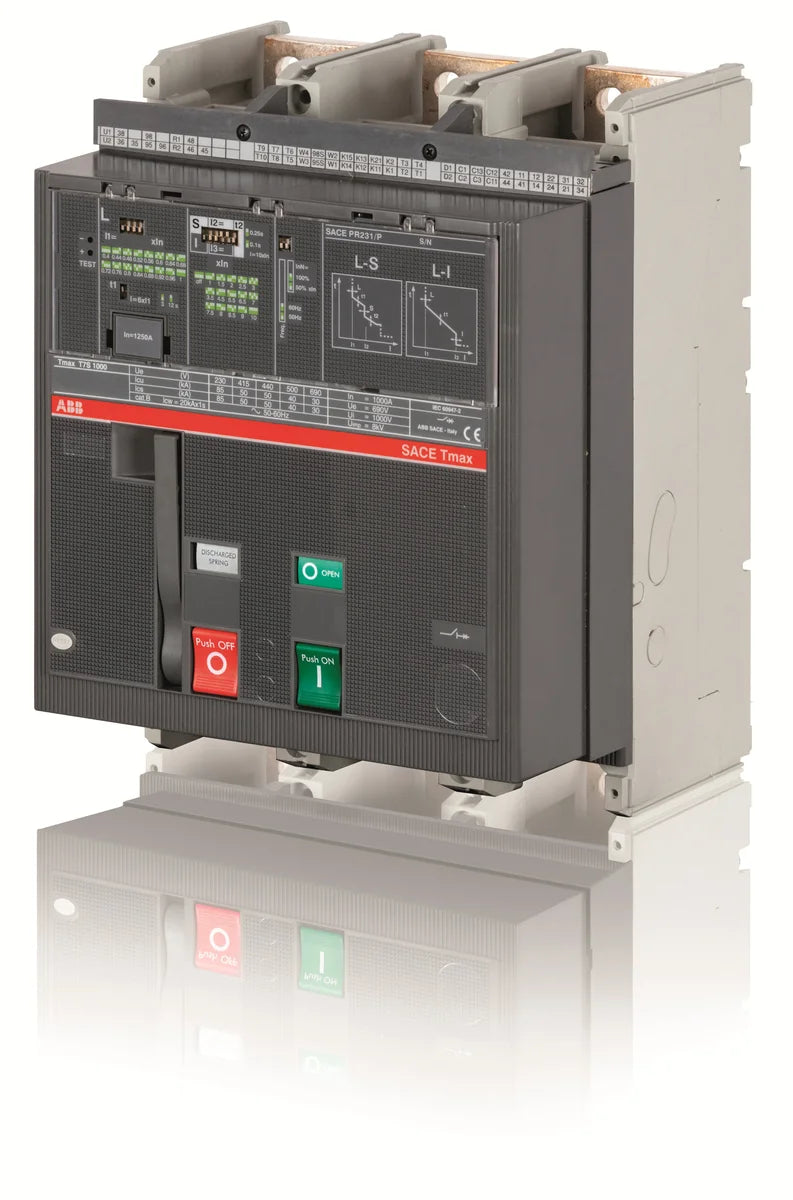

The ABB 1SDA063042R1 (T7H 1600 PR231/P LS/I In=1600A 3p F F M) is a 1600 A, 3-pole, fixed-mounted molded case circuit breaker (MCCB) from the Tmax T7 range of ABB molded case circuit breaker frames. It is fitted with a PR231/P LS/I electronic trip unit and is rated 70 kA Icu at 400 V AC. Weight is 11 kg.

Certifications & Standards

• CE: Compliant with European CE marking requirements for low-voltage electrical equipment
• IEC: Designed and tested in accordance with applicable IEC standards for circuit breakers
• RoHS: Compliant with the Restriction of Hazardous Substances Directive (EU 2011/65/EU and Amendment 2015/863)
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) for chemical substances
• EU Directive 2011/65/EU & Amendment 2015/863: Confirmed compliance under the updated RoHS framework restricting hazardous materials in electrical and electronic equipment
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Selection Notes

• Rated current is 1600 A; check it against the continuous load current of the circuit being protected.
• Icu is 70 kA at 400 V AC; confirm it is equal to or higher than the prospective fault current at the installation point.
• This is a 3-pole version for three-phase circuits; select a 4-pole variant if the neutral must be switched. Mounting is fixed (not plug-in or withdrawable).
• The PR231/P LS/I is an electronic trip unit with long-time (L), short-time (S) and instantaneous (I) protection, so thresholds can be coordinated with upstream and downstream devices.
