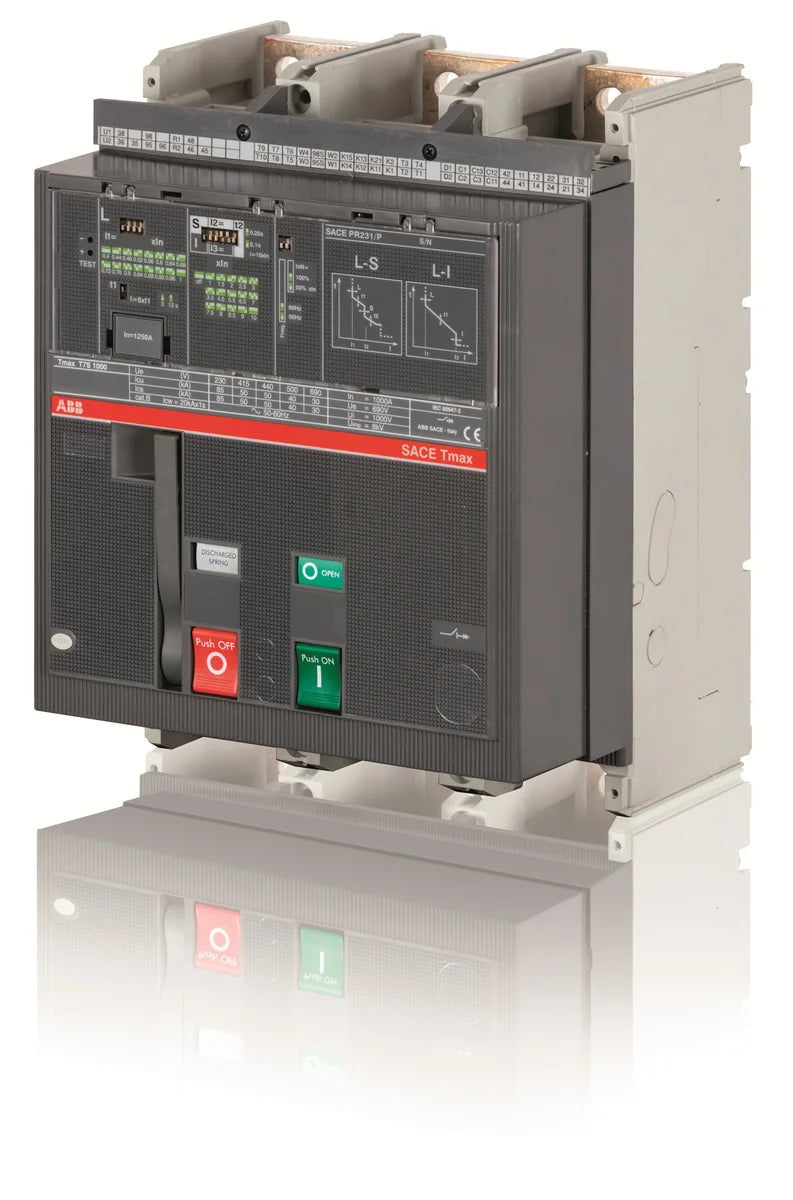

ABB 1SDA062658R1 T7H 800 PR231/P LS/I In=800A 3p F F M 800A 3-Pole Fixed Air Circuit Breaker

The ABB 1SDA062658R1 T7H 800 PR231/P LS/I In=800A 3p F F M is a 800A 3-pole fixed-mount air circuit breaker from ABB's Tmax T7 series, equipped with the PR231/P LS/I electronic trip unit for precise long-time and instantaneous protection. Designed for demanding low-voltage power distribution and motor protection applications, this ACB delivers robust overcurrent and short-circuit protection in a compact, fixed configuration with dimensions of 210 × 268 × 178 mm.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union safety, health, and environmental protection requirements
• IEC: Designed and tested in accordance with IEC low-voltage switchgear and controlgear standards
• RoHS: Compliant with the Restriction of Hazardous Substances Directive, limiting use of restricted materials
• REACH: Meets EU REACH regulation requirements for chemical substance safety
• WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

• Main and sub-main distribution switchboards in commercial and industrial facilities
• Motor feeder and bus-coupler protection in low-voltage switchgear panels
• Generator and transformer outgoing circuit protection
• Industrial process plant power distribution requiring selective coordination
• Data centres and critical infrastructure power distribution boards
