ABB 1SDA062116R1 GEAR.MOTOR DEVICE T7M-X1 220...250Vac/dc Accessory for Circuit Breaker (Geared Motor Device)

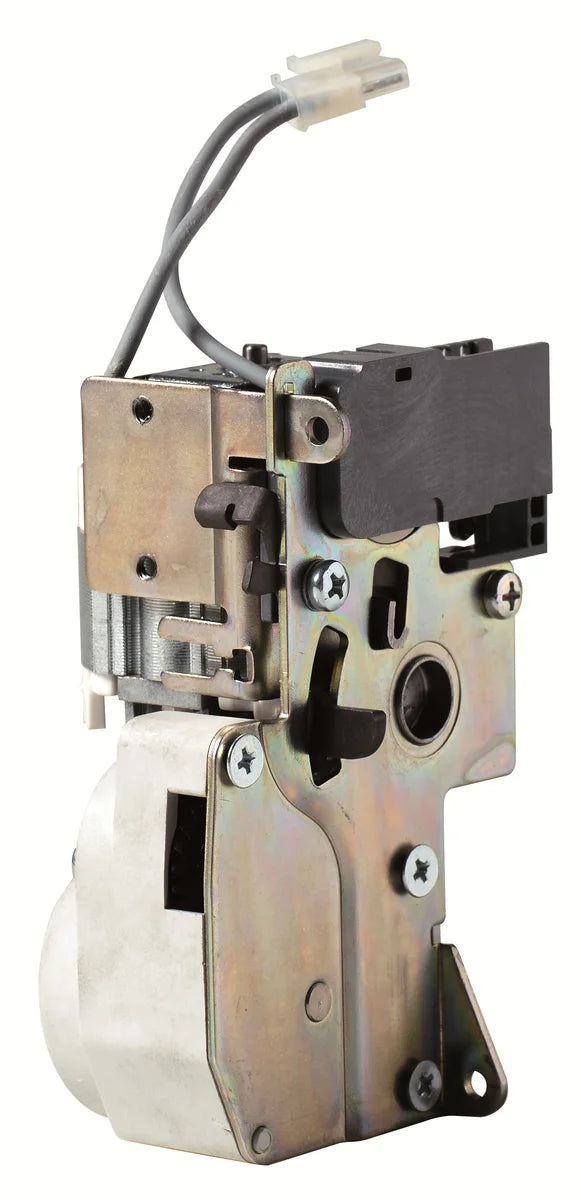

The ABB 1SDA062116R1 GEAR.MOTOR DEVICE T7M-X1 220...250Vac/dc is a factory-engineered geared motor device accessory designed for ABB Tmax T7 series moulded case circuit breakers, enabling remote motorised opening and closing operations at a supply voltage of 220–250 V AC/DC. This accessory integrates directly into the T7M-X1 breaker mechanism, providing reliable automated switching control for industrial distribution and motor protection applications.

Technical Specifications

Certifications & Standards

• CE: Compliant with applicable European Union directives for electrical equipment
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances, including Amendment 2015/863
• REACH: Compliant with EU REACH regulation on chemical safety (SVHC declaration)
• EU Directive 2011/65/EU and Amendment 2015/863: Fully verified compliance with the revised RoHS directive requirements
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

The GEAR.MOTOR DEVICE T7M-X1 220...250Vac/dc is ideal for applications requiring remote or automated control of Tmax T7 MCCB switching operations. Typical use cases include industrial power distribution panels, motor control centres (MCCs), building automation systems, and process control installations where manual breaker operation is impractical or unsafe. The motorised mechanism allows integration with SCADA systems, PLCs, and building management systems for centralised energy management.

Frequently Asked Questions

• What breaker is this geared motor device compatible with? The 1SDA062116R1 GEAR.MOTOR DEVICE T7M-X1 220...250Vac/dc is specifically designed for ABB Tmax T7 series circuit breakers in the T7M-X1 configuration.
• What is the supply voltage for this motor device? The device operates at 220 to 250 V AC/DC supply voltage.
• Is this product RoHS compliant? Yes, it is fully compliant with RoHS Directive 2011/65/EU and Amendment 2015/863, as well as REACH and CE requirements.
• Can this accessory be used for remote switching automation? Yes, the geared motor device enables motorised open/close operations, making it suitable for PLC-controlled or SCADA-integrated switchgear panels.
