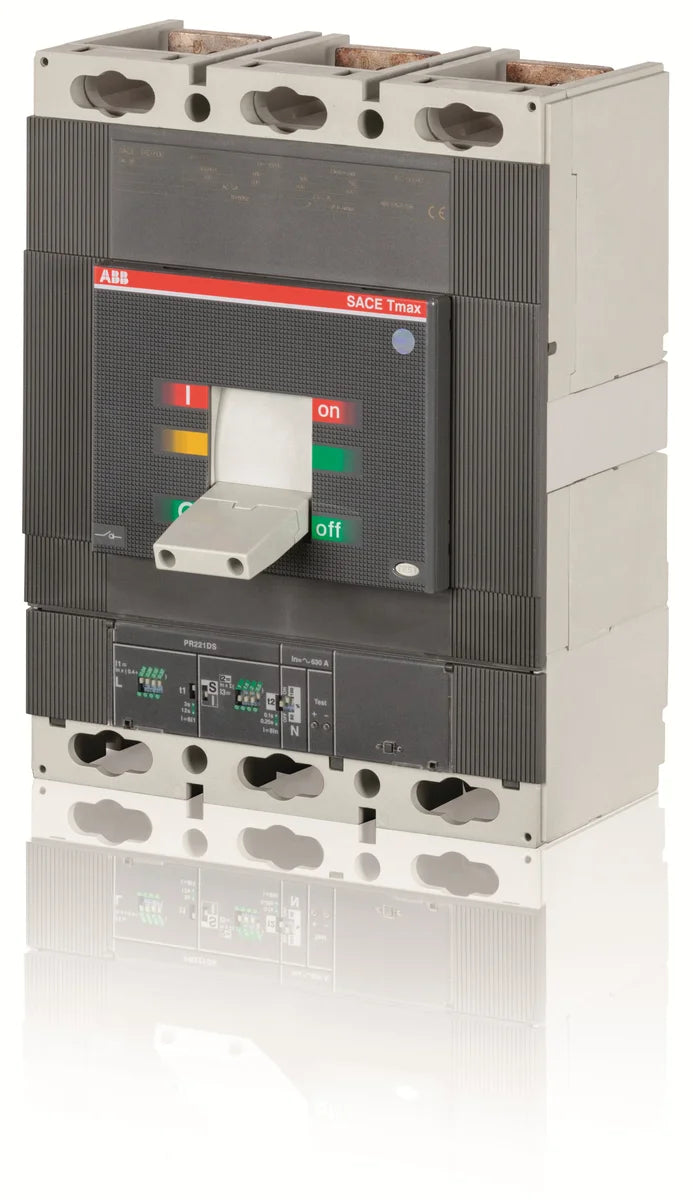

Tmax T6ABB 1SDA060246R1 T6H 630 PR221DS-LS/I In=630 3p F F 630A 3-Pole Fixed Molded Case Circuit Breaker
Other ratings in Tmax T6
All 2 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 630 | 1SDA060246R1This part | On request | $1,974.27 | |
| 800 | 1SDA060289R1 | On request | $2,492.28 |
Description
About the T6H
About the T6H
The ABB 1SDA060246R1 (T6H 630 PR221DS-LS/I In=630 3p F F) is a 630 A, 3-pole, fixed-mounted molded case circuit breaker (MCCB) from the Tmax T6 range of ABB molded case circuit breaker frames. It is fitted with a PR221DS-LS/I electronic trip unit and is rated 70 kA Icu at 400 V AC. Dimensions (W × H × D) are 210 mm × 268 mm × 103.5 mm and weight is 9.5 kg.
Certifications & Standards
- CE: Compliant with European Union CE marking requirements for low-voltage electrical equipment
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances in electrical and electronic equipment
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substance safety
- EU Directive 2011/65/EU: Restriction of Hazardous Substances (RoHS) Directive compliance
- Amendment 2015/863: Compliant with the updated RoHS annex introducing four additional restricted phthalate substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for proper end-of-life recycling and disposal
Selection Notes
- Rated current is 630 A; check it against the continuous load current of the circuit being protected.
- Icu is 70 kA at 400 V AC; confirm it is equal to or higher than the prospective fault current at the installation point.
- This is a 3-pole version for three-phase circuits; select a 4-pole variant if the neutral must be switched. Mounting is fixed (not plug-in or withdrawable).
- The PR221DS-LS/I is an electronic trip unit with long-time (L), short-time (S) and instantaneous (I) functions.
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 210 mm |
|---|---|
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
Additional Information 6
| Product Main Type | SACE Tmax T |
|---|---|
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
Show all 55 specifications ↓ Show less ↑44 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SDA060246R1 |
|---|---|
| Type designation | T6H |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644627089 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Technical 19
| Electrical Durability | 7000 cycle, 60 cycles per hour |
|---|---|
| Mechanical Durability | 20000 cycle, 120 cycles per hour |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 20 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA, (230 V AC) 100 kA, (380 V AC) 70 kA, (400 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 50 kA, (500 V AC) 50 kA, (690 V AC) 19 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 7.6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA, (230 V AC) 100 kA, (380 V AC) 70 kA, (400 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 50 kA, (500 V AC) 50 kA, (690 V AC) 25 kA |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers, Front |
| Test Voltage Max (Utest) | 3500 V |
External Classifications and Standards 4
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Logistics 10
| Package Level 1 Units | 1 piece |
|---|---|
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644627089 |
| Shipping weight | 9.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
