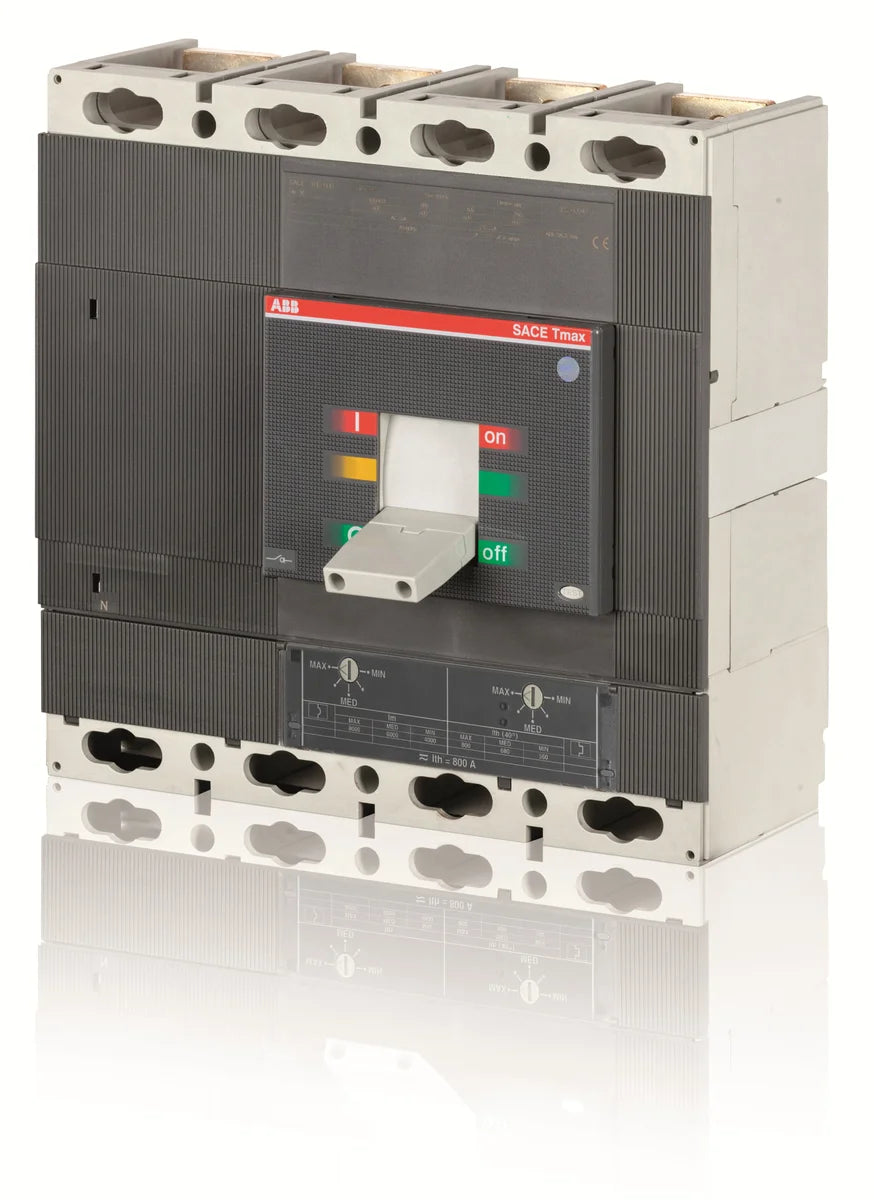

Tmax T6ABB 1SDA060222R1 T6N 800 TMA 800-8000 4p F F InN=100%In 800A 4P Fixed Molded Case Circuit Breaker
Other ratings in Tmax T6
All 2 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 630 | 1SDA060210R1 | On request | $1,776.45 | |
| 800 | 1SDA060222R1This part | On request | $2,810.12 |
Description
About the T6N
About the T6N
The ABB 1SDA060222R1 (T6N 800 TMA 800-8000 4p F F InN=100%In) is a 800 A, 4-pole, fixed-mounted molded case circuit breaker (MCCB) from the Tmax T6 range of ABB molded case circuit breaker frames. It is fitted with an adjustable thermal-magnetic (TMA) trip unit and is rated 36 kA Icu at 400 V AC. Dimensions (W × H × D) are 280 × 268 × 103.5 mm and weight is 12 kg.
Certifications & Standards
- CE: Compliant with applicable European Union directives for electrical equipment
- IEC: Designed and tested in accordance with relevant IEC standards for low-voltage switchgear
- RoHS: Compliant with EU Directive 2011/65/EU (Restriction of Hazardous Substances) and Amendment 2015/863
- REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substance safety
- EU Directive 2011/65/EU & Amendment 2015/863: Meets restricted substance requirements for electrical and electronic equipment
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
Selection Notes
- Rated current is 800 A; check it against the continuous load current of the circuit being protected.
- Icu is 36 kA at 400 V AC; confirm it is equal to or higher than the prospective fault current at the installation point.
- This is a 4-pole version with the neutral pole rated InN = 100% In; use it where the neutral conductor must be switched, and confirm the pole count matches the system. Mounting is fixed (not plug-in or withdrawable).
- The TMA trip unit has an adjustable thermal threshold, which allows the setting to be matched to the load within the range listed in the table.
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 280 mm |
|---|---|
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 12 kg |
Additional Information 6
| Product Main Type | SACE Tmax T |
|---|---|
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
Show all 55 specifications ↓ Show less ↑44 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SDA060222R1 |
|---|---|
| Type designation | T6N |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644626822 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Technical 19
| Electrical Durability | 5000 cycle, 60 cycles per hour |
|---|---|
| Mechanical Durability | 20000 cycle, 120 cycles per hour |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 31 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC, 750 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 15 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA, (250 V DC) 2 Poles in Series 36 kA, (500 V DC) 2 Poles in Series 25 kA, (750 V DC) 3 Poles in Series 16 kA |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers, Front |
| Test Voltage Max (Utest) | 3500 V |
External Classifications and Standards 4
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Logistics 10
| Package Level 1 Units | 1 piece |
|---|---|
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644626822 |
| Shipping weight | 12.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SDA060222R1
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 2 ratings in Tmax T6
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 630 A | 1SDA060210R1 | T6N | On request | — | $1,776.45 | Quote | |
| 800 A | 1SDA060222R1 This part | T6N | On request | — | $2,810.12 | Quote |
Certifications
Certifications and standards
- CE
- RoHS
- IEC
Quick answers
Questions about the T6N
What is the rated current of T6N?
The rated current of T6N is 800 A.
What is the HS code of T6N for customs?
The tariff (HS) code on file for T6N is 85362090.
What is the EAN of T6N?
The EAN (GTIN) of T6N is 8015644626822.
Where does T6N ship from, and how fast?
T6N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
