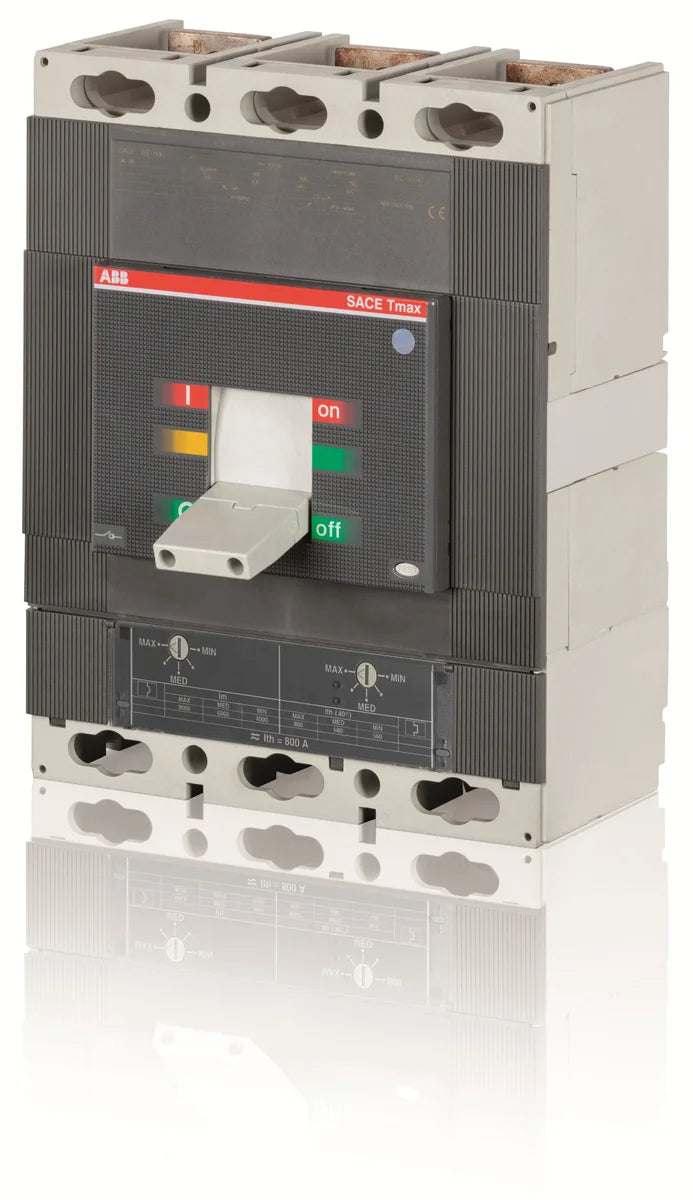

ABB 1SDA060216R1 T6S 800 TMA 800-8000 3p F F 800A 3-Pole Fixed Air Circuit Breaker

The ABB 1SDA060216R1, catalog number T6S 800 TMA 800-8000 3p F F, is a 800 A 3-pole fixed-mounted moulded case / air circuit breaker from the ABB Tmax T6 series, engineered for reliable overcurrent and short-circuit protection in low-voltage power distribution systems. Built on the industry-proven Tmax platform, the T6S 800 TMA 800-8000 3p F F features a TMA thermomagnetic trip unit with an adjustable current range of 800–8000 A, providing precise protection coordination for demanding industrial and commercial installations.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne mark — meets EU safety, health, and environmental requirements
• IEC: Designed and tested in accordance with IEC standards for low-voltage switchgear
• RoHS: Compliant with EU Directive 2011/65/EU (Restriction of Hazardous Substances)
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU & Amendment 2015/863: Fully compliant with the RoHS recast directive including latest amendments
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

• Main and sub-main distribution boards in industrial plants and commercial facilities
• Protection of busbars, cables, and transformer feeders in low-voltage switchgear panels
• Motor feeder protection in manufacturing, process, and utilities environments
• Data centres, infrastructure projects, and heavy commercial building services
• Coordination with downstream MCBs and MCCBs for selective protection schemes
