ABB 1SCA158447R1001 OTDC400FV11P 2P 1500V DC Pistol Handle Switch Disconnector

% $-361.62
ABB 1SCA158447R1001 OTDC400FV11P Switch Disconnector - 2P 400A 1500V DC Pistol Handle
ABB 1SCA158447R1001 OTDC400FV11P Switch Disconnector - 2P 400A 1500V DC Pistol Handle

ABB 1SCA158447R1001 OTDC400FV11P 2P 1500V DC Pistol Handle Switch Disconnector

Brand: ABB
Reference No: 1SCA158447R1001
Catalog No: OTDC400FV11P
Series: DC Switch-Disconnectors
Tariff Code (HS): 853650
Rated Current: 400
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$361.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

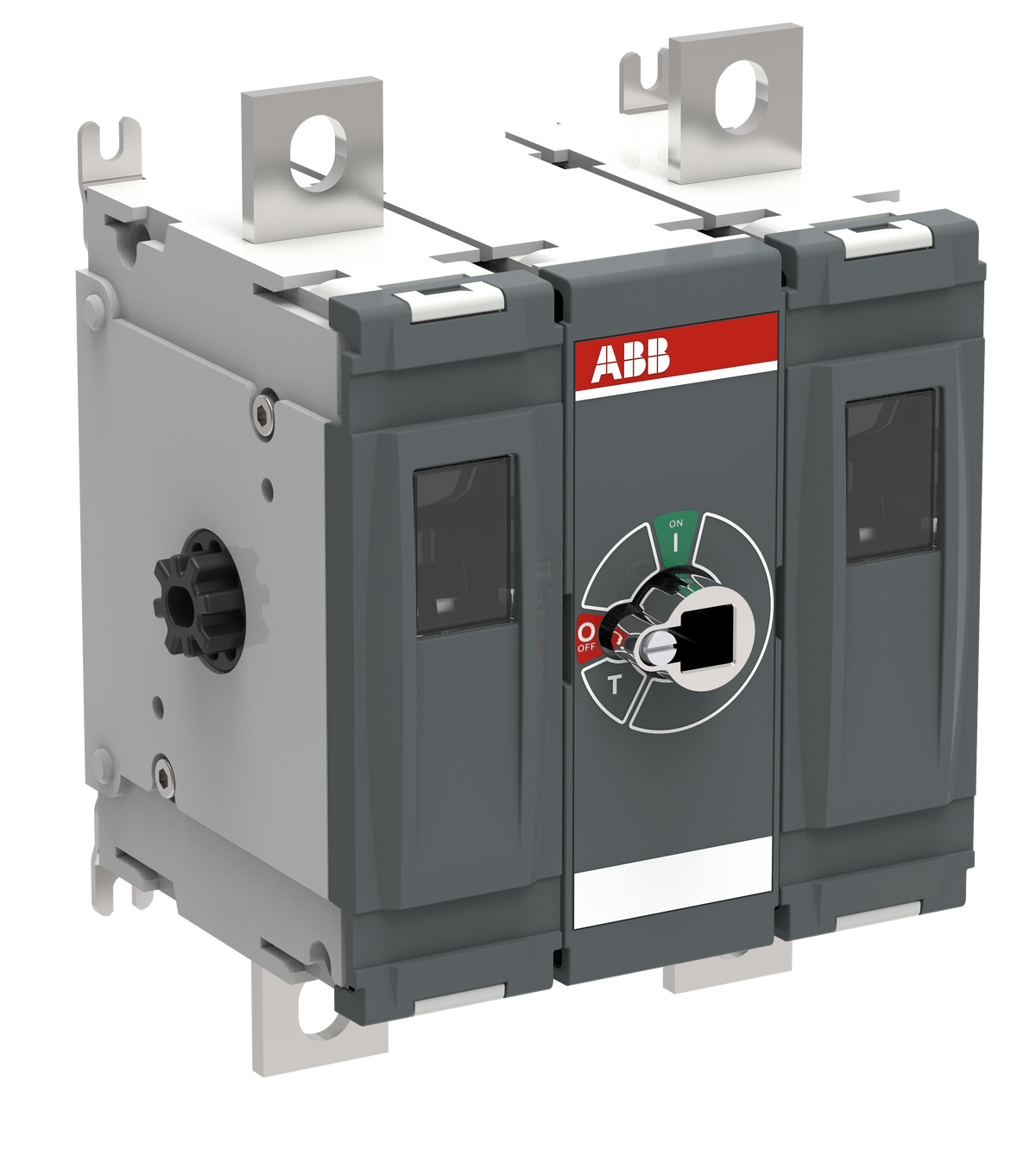

Rated 400 A at 1500 V DC, the ABB 1SCA158447R1001 OTDC400FV11P is a two-pole DC switch-disconnector on the M frame with a factory-fitted black pistol-grip handle, built for 1500 V utility-scale photovoltaic combiner boxes. It carries a 10 kA short-circuit making capacity (Icm) and a 1500 V rated insulation voltage.

Technical Specifications

SKU 1SCA158447R1001
Brand ABB
Series DC Switch-Disconnectors
Catalog Designation OTDC400FV11P
Number of Poles 2P
Rated Operational Voltage 1500 V DC
Rated Operational Current (DC-21B/DC-22B/DC-PV1/DC-PV2) 400 A
Rated Insulation Voltage (Ui) 1500 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-Circuit Making Capacity (Icm) 10 kA
Rated Short-time Withstand Current (Icw) 10 kA for 1 s
Conventional Free-air Thermal Current (Ith) 400 A at 40 degC
Conventional Thermal Current, Fully Enclosed (Ithe) 400 A
Handle Type Pistol
Handle Color Black
Handle Length 95 mm
Degree of Protection IP20 (front)
Pollution Degree 3
Mounting Type Base mounting
Terminal Type Lug terminals
Net Dimensions (W x H x D) 157.5 x 211 x 135 mm
Net Weight 3.9 kg

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-3

Selection Notes

The pistol-grip handle on this FV11P variant projects further from the enclosure than the direct-mount FV11K handle, which suits panels where the operator needs more leverage or stands off at an angle from the door. Electrically the two 1500 V, 400 A variants are identical, so the choice between them comes down to door geometry and ergonomics rather than rating. Net weight is marginally higher at 3.9 kg versus the direct-mount version's 3.8 kg because of the longer handle linkage.

Technical Details

Short Description
2-pole DC switch-disconnector, 400 A at 1500 V DC, M frame, pistol handle, 10 kA Icm.
Rated Current (Ampere)
400
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OTDC400FV11P
Number of Poles
2P
Standards
IEC 60947-1, -3
Delivery Date (Days)
30 days
Model Number
OTDC400FV11P
Tariff Code
853650
