ABB 1SCA158276R1001 OTDC500FV11K 2P 1500V DC Direct Mount Switch Disconnector

% $-412.62

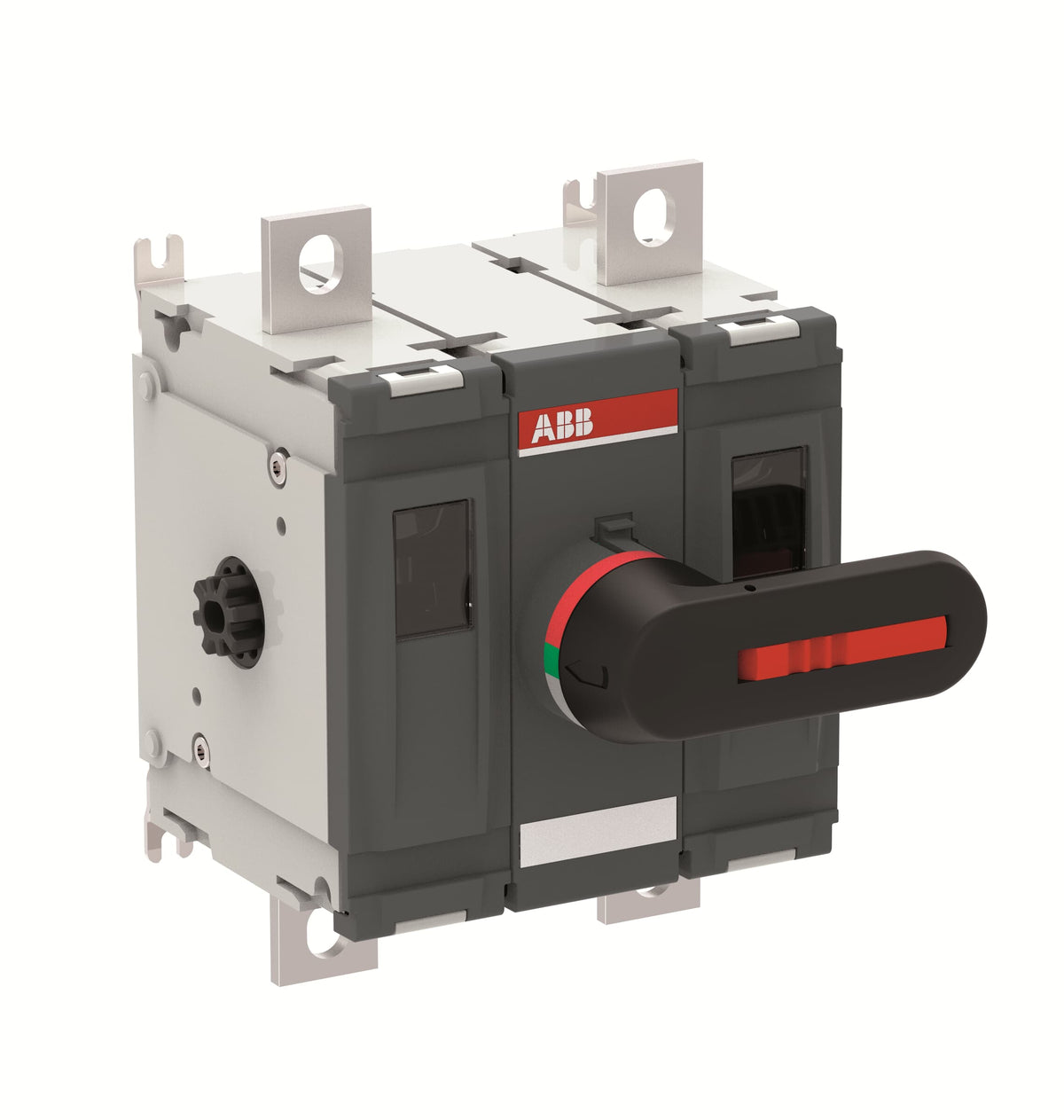

ABB 1SCA158276R1001 OTDC500FV11K Switch Disconnector - 2P 500A 1500V DC Direct Mount
ABB 1SCA158276R1001 OTDC500FV11K Switch Disconnector - 2P 500A 1500V DC Direct Mount

ABB 1SCA158276R1001 OTDC500FV11K 2P 1500V DC Direct Mount Switch Disconnector

Brand: ABB
Reference No: 1SCA158276R1001
Catalog No: OTDC500FV11K
Series: DC Switch-Disconnectors
Tariff Code (HS): 853650
Rated Current: 500
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$412.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA158276R1001 OTDC500FV11K is a two-pole DC switch-disconnector rated 500 A at 1500 V DC on the M frame, built for utility-scale photovoltaic combiner boxes on the 1500 V DC bus. It ships with a factory-fitted black direct-mount handle and a 10 kA short-circuit making capacity (Icm).

Technical Specifications

SKU 1SCA158276R1001
Brand ABB
Series DC Switch-Disconnectors
Catalog Designation OTDC500FV11K
Number of Poles 2P
Rated Operational Voltage 1500 V DC
Rated Operational Current (DC-21B/DC-PV1/DC-PV2) 500 A
Rated Operational Current DC-22B 400 A
Rated Insulation Voltage (Ui) 1500 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-Circuit Making Capacity (Icm) 10 kA
Rated Short-time Withstand Current (Icw) 10 kA for 1 s
Conventional Free-air Thermal Current (Ith) 500 A at 40 degC
Conventional Thermal Current, Fully Enclosed (Ithe) 500 A
Handle Type Direct Mount
Handle Color Black
Handle Length 95 mm
Degree of Protection IP20 (front)
Mounting Type Base mounting
Terminal Type Lug terminals
Net Dimensions (W x H x D) 177.5 x 211 x 169.5 mm
Net Weight 3.8 kg

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-3

Selection Notes

As with its 400 A sibling, the DC-22B mixed-load rating caps at 400 A here even though the 500 A headline figure applies to DC-21B and the DC-PV1/PV2 string ratings, so inductive duty sizing should use the lower number. A direct-mount handle is already fitted, so this unit needs no separate operator kit, unlike the base 1000 V F11 switches in the family. Choose this direct-mount version over the FV11P pistol-grip when the enclosure door allows a straight front-facing operator.

Technical Details

Short Description
2-pole DC switch-disconnector, 500 A at 1500 V DC, M frame, direct-mount handle, 10 kA Icm.
Rated Current (Ampere)
500
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OTDC500FV11K
Number of Poles
2P
Standards
IEC 60947-1, -3
Delivery Date (Days)
30 days
Model Number
OTDC500FV11K
Tariff Code
853650
