ABB 1SCA158244R1001 OTDC630F11 2P 1000V DC 10kA Switch Disconnector

% $-311.42

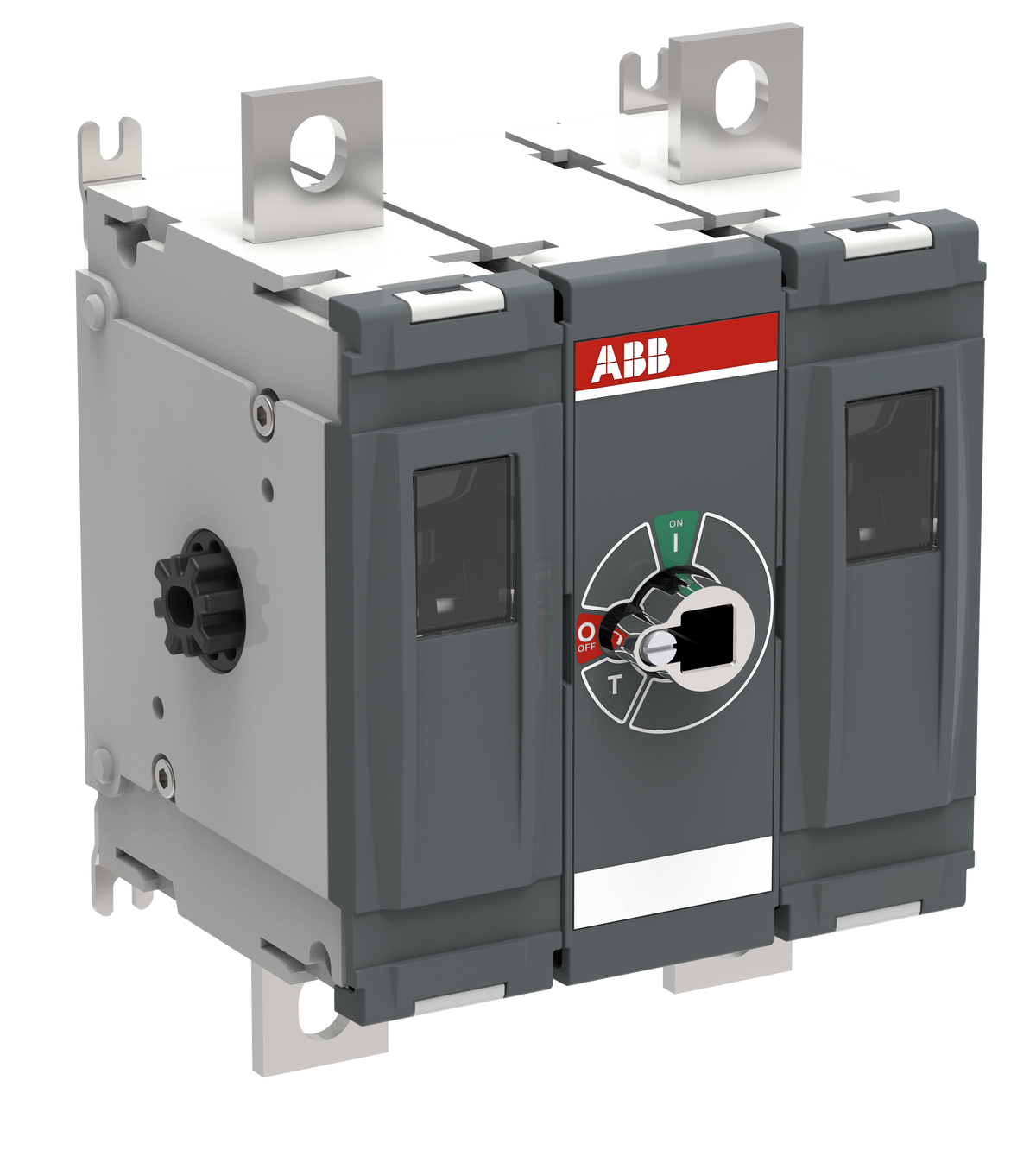

ABB 1SCA158244R1001 OTDC630F11 Switch Disconnector - 2P 630A 1000V DC
ABB 1SCA158244R1001 OTDC630F11 Switch Disconnector - 2P 630A 1000V DC

ABB 1SCA158244R1001 OTDC630F11 2P 1000V DC 10kA Switch Disconnector

Brand: ABB
Reference No: 1SCA158244R1001
Catalog No: OTDC630F11
Series: DC Switch-Disconnectors
Tariff Code (HS): 853650
Rated Current: 630
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$311.42

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA158244R1001 OTDC630F11 is a two-pole DC switch-disconnector rated 630 A at 1000 V DC on the M frame, the top current step in this base-mounted family for utility-scale photovoltaic combiner boxes. It carries a 10 kA short-circuit making capacity (Icm) and a 1500 V rated insulation voltage.

Technical Specifications

SKU 1SCA158244R1001
Brand ABB
Series DC Switch-Disconnectors
Catalog Designation OTDC630F11
EAN 6417019873497
Number of Poles 2P
Rated Operational Voltage 1000 V DC
Rated Operational Current DC-21B 630 A
Rated Operational Current DC-22B 400 A
Rated Operational Current (DC-PV1/DC-PV2) 500 A
Rated Insulation Voltage (Ui) 1500 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-Circuit Making Capacity (Icm) 10 kA
Rated Short-time Withstand Current (Icw) 10 kA for 1 s
Conventional Free-air Thermal Current (Ith) 630 A at 40 degC
Conventional Thermal Current, Fully Enclosed (Ithe) 630 A
Degree of Protection IP20 (front)
Mounting Type Base mounting
Terminal Type Lug terminals
Net Dimensions (W x H x D) 157.5 x 211 x 135 mm
Net Weight 3.5 kg

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-3

Selection Notes

The 630 A headline figure is a DC-21B resistive rating only -- DC-22B mixed-load duty caps at 400 A and the DC-PV1/PV2 string ratings sit at 500 A, so a reverse-current PV string application should be sized against 500 A rather than 630 A. This is the largest current step in the M-frame OTDC family while keeping the same enclosure as the 400 and 500 A units, which simplifies combiner box layout. At 1000 V DC it suits installations capped at that bus voltage; a 1500 V string needs the equivalent higher-voltage variant.

Technical Details

Short Description
2-pole DC switch-disconnector, 630 A at 1000 V DC, M frame, base mounting, 10 kA Icm.
Rated Current (Ampere)
630
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OTDC630F11
Number of Poles
2P
Standards
IEC 60947-1, -3
Delivery Date (Days)
30 days
Model Number
OTDC630F11
Tariff Code
853650
