ABB 1SCA153630R1001 OXB1600E3X4QT 3P 1600A 65kA Automatic Transfer Switch

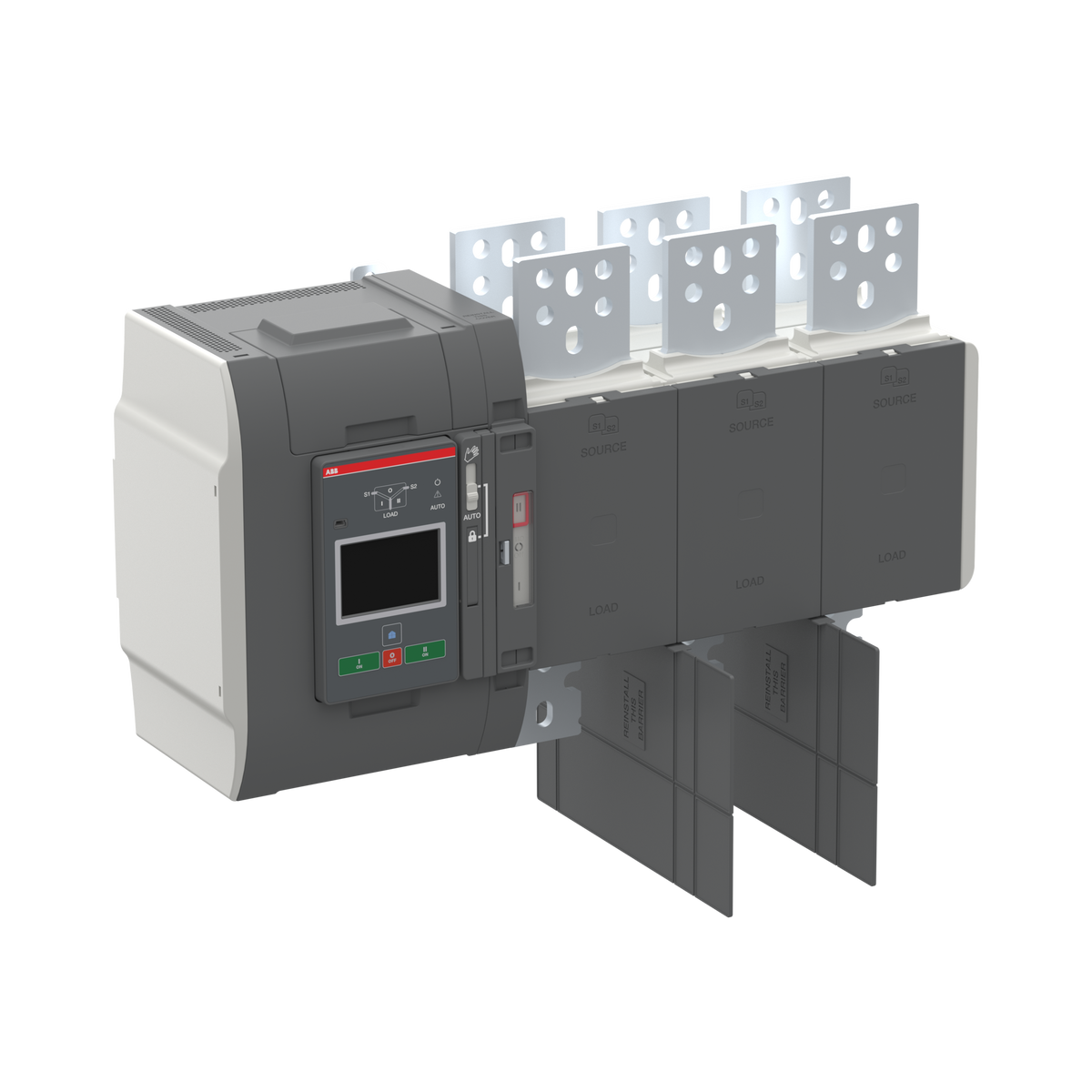

ABB's OXB1600E3X4QT, order code 1SCA153630R1001, is a 1600 A, 3-pole TruONE automatic transfer switch with a 65 kA short-time withstand rating over 0.1 s. A Level 4 touchscreen controller handles full parameter configuration and event logging, while the QT layout routes supply cabling in at the top and load conductors out at the bottom.

Technical Specifications

Certifications & Standards

• IEC 60947-6-1

Selection Notes

The OXB1600E3X4QT carries the same 1600 A, 65 kA rating as the rest of this frame, positioning it for main-incomer duty. Keeping the neutral unswitched (the X build) suits installations with a single bonded neutral; the S (4-pole) variant switches the neutral as well where that's required. A Level 4 touchscreen controller gives full access to transfer settings and logged events, the most capable interface in this range - the Level 2 and Level 3 variants trade that down for a simpler DIP or LCD interface. The QT termination routes supply cabling in at the top, the opposite of the QB version.
