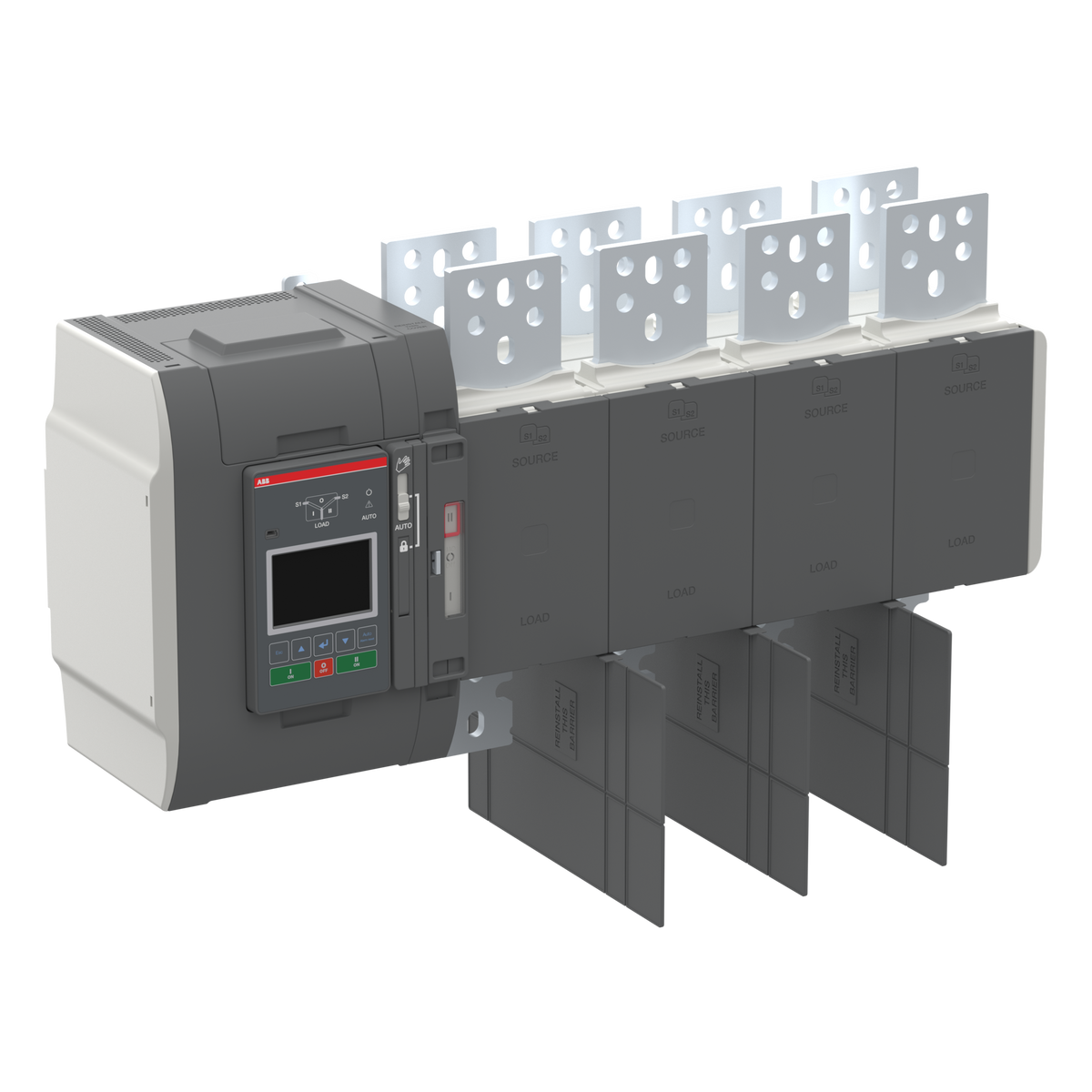

ABB 1SCA153624R1001 OXB1600E3S3QT 1600A 4P LCD Controller Top Feed Automatic Transfer Switch

% $-8,990.13
ABB 1SCA153624R1001 OXB1600E3S3QT Automatic Transfer Switch - 1600A 4P
ABB 1SCA153624R1001 OXB1600E3S3QT Automatic Transfer Switch - 1600A 4P

ABB 1SCA153624R1001 OXB1600E3S3QT 1600A 4P LCD Controller Top Feed Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA153624R1001
Catalog No: OXB1600E3S3QT
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 1600
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8,990.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At 1600 A and 4 poles, the ABB 1SCA153624R1001 (OXB1600E3S3QT) is among the larger TruONE automatic transfer switches, fitted with a Level 3 LCD controller. Supply terminals are on top, load terminals on the bottom, and the 200-480 V AC rated switch carries a 65 kA / 0.1 s short-time withstand current with delayed transition between sources.

Technical Specifications

SKU 1SCA153624R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB1600E3S3QT
EAN 6417019846507
Number of Poles 4P
Fourth Pole Configuration Switched, simultaneous function, left and right side mounting
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (AC-31B) 1600 A (200-415 V AC)
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-time Withstand Current (Icw) 65 kA for 0.1 s
Conventional Free-air Thermal Current (Ith) 1600 A at 40 degC
Rated Frequency 50-60 Hz
Controller Type Level 3 (LCD display)
Transition Type Delayed (I-O-II)
Terminal Position Supply on top, load on bottom
Terminal Type Bolt
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 49 W per pole / 147 W total
Dimensions (W x H x D) 712 x 359 x 212 mm
Net Weight 37.11 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

Rated AC-31B only at 1600 A, this 4-pole, top-fed (QT) switch is the distribution-duty option in the largest TruONE frame in this batch; the QB sibling adds AC-32B/AC-33B ratings for motor-load switching. The Level 3 LCD controller gives local status readout without touchscreen cost. Supply-on-top, load-on-bottom terminals suit boards fed from an overhead busway rather than from below.

Technical Details

Short Description
ABB 1SCA153624R1001 OXB1600E3S3QT - 1600A 4P TruONE automatic transfer switch, Level 3 LCD controller, 200-480V AC.
Rated Current (Ampere)
1600
Rated Voltage (VAC)
200/480 V AC
Mounting Type
Direct Mount
Protection Type
IP20
Catalog No
OXB1600E3S3QT
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB1600E3S3QT
Tariff Code
853650
