ABB 1SCA153622R1001 OXB1600E3S2QB 1600A 4P DIP Controller Bottom Feed Automatic Transfer Switch

% $-7,282.95
ABB 1SCA153622R1001 OXB1600E3S2QB Automatic Transfer Switch - 1600A 4P
ABB 1SCA153622R1001 OXB1600E3S2QB Automatic Transfer Switch - 1600A 4P

ABB 1SCA153622R1001 OXB1600E3S2QB 1600A 4P DIP Controller Bottom Feed Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA153622R1001
Catalog No: OXB1600E3S2QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 1600
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$7,282.95

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

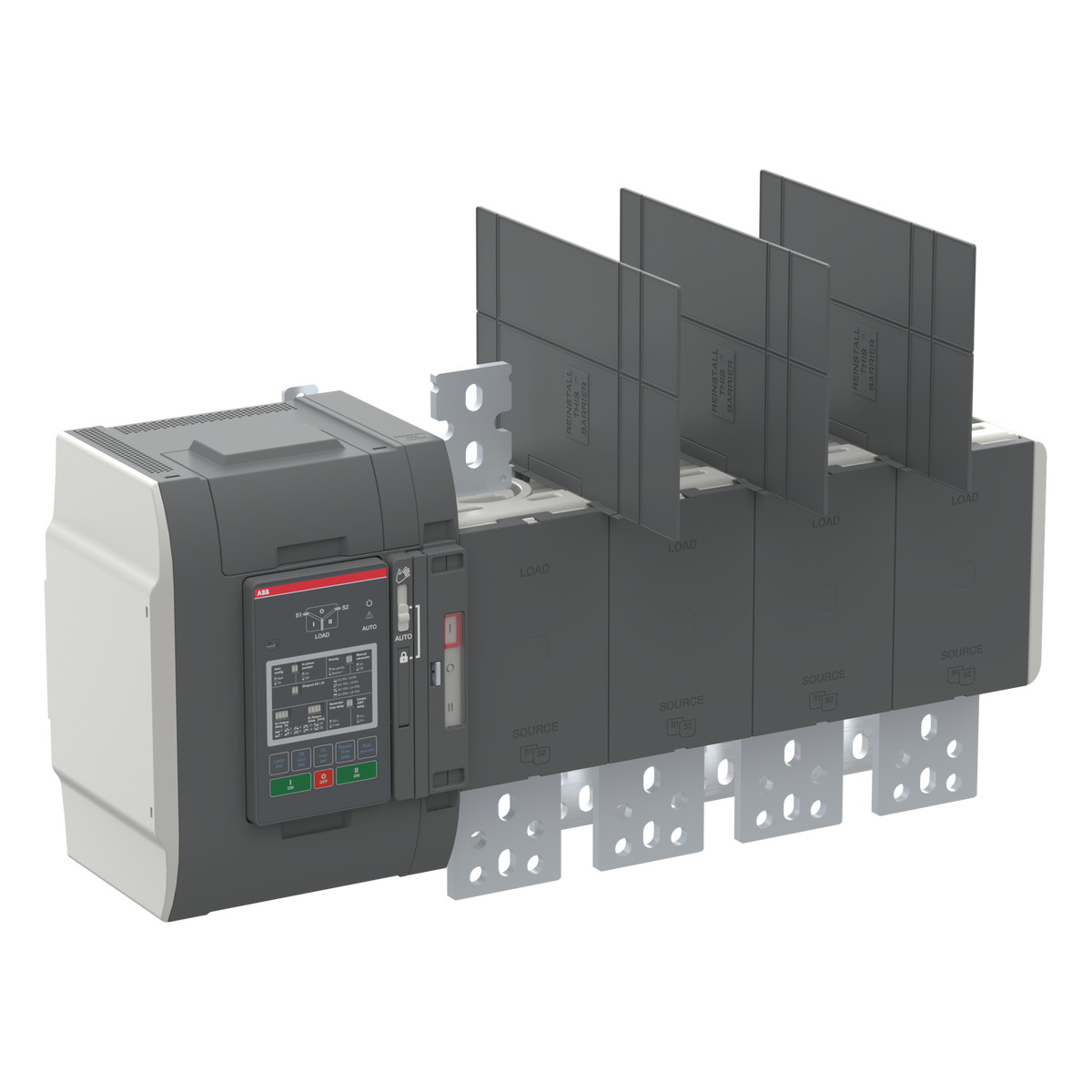

The ABB 1SCA153622R1001 (OXB1600E3S2QB) is a 4-pole TruONE transfer switch rated 1600 A at AC-31B, stepping down to 1500 A at AC-32B and 1250 A at AC-33B for mixed and motor-starting duty. Its Level 2 DIP-switch controller keeps setup simple, supply feeds in from the bottom, and the 200-480 V AC switch carries a 65 kA / 0.1 s short-time withstand current.

Technical Specifications

SKU 1SCA153622R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB1600E3S2QB
EAN 6417019846484
Number of Poles 4P
Fourth Pole Configuration Switched, simultaneous function, left and right side mounting
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (AC-31B) 1600 A (200-415 V AC)
Rated Operational Current (AC-32B) 1500 A (200-415 V AC)
Rated Operational Current (AC-33B) 1250 A (200-415 V AC)
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-time Withstand Current (Icw) 65 kA for 0.1 s
Conventional Free-air Thermal Current (Ith) 1600 A at 40 degC
Rated Frequency 50-60 Hz
Controller Type Level 2 (DIP switch)
Transition Type Delayed (I-O-II)
Terminal Position Supply on bottom, load on top
Terminal Type Bolt
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 49 W per pole / 147 W total
Dimensions (W x H x D) 712 x 359 x 212 mm
Net Weight 37.08 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

At 1600 A (AC-31B), stepping down to 1500 A (AC-32B) and 1250 A (AC-33B), this 4-pole, bottom-fed (QB) switch is rated for both distribution and motor-starting duty at the top of the TruONE current range. The Level 2 DIP-switch controller is the simplest control tier available at this frame size - choose the Level 3 or Level 4 siblings for on-panel display or touchscreen access. Four-pole switching is the right choice when the two sources have independently earthed neutrals.

Technical Details

Short Description
ABB 1SCA153622R1001 OXB1600E3S2QB - 1600A 4P TruONE automatic transfer switch, Level 2 DIP controller, 200-480V AC.
Rated Current (Ampere)
1600
Rated Voltage (VAC)
200/480 V AC
Mounting Type
Direct Mount
Protection Type
IP20
Catalog No
OXB1600E3S2QB
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB1600E3S2QB
Tariff Code
853650
