ABB 1SCA153581R1001 OXB1000E3S4QT 4P Level 4 (Touch) Controller Automatic Transfer Switch

% $-9,345.48

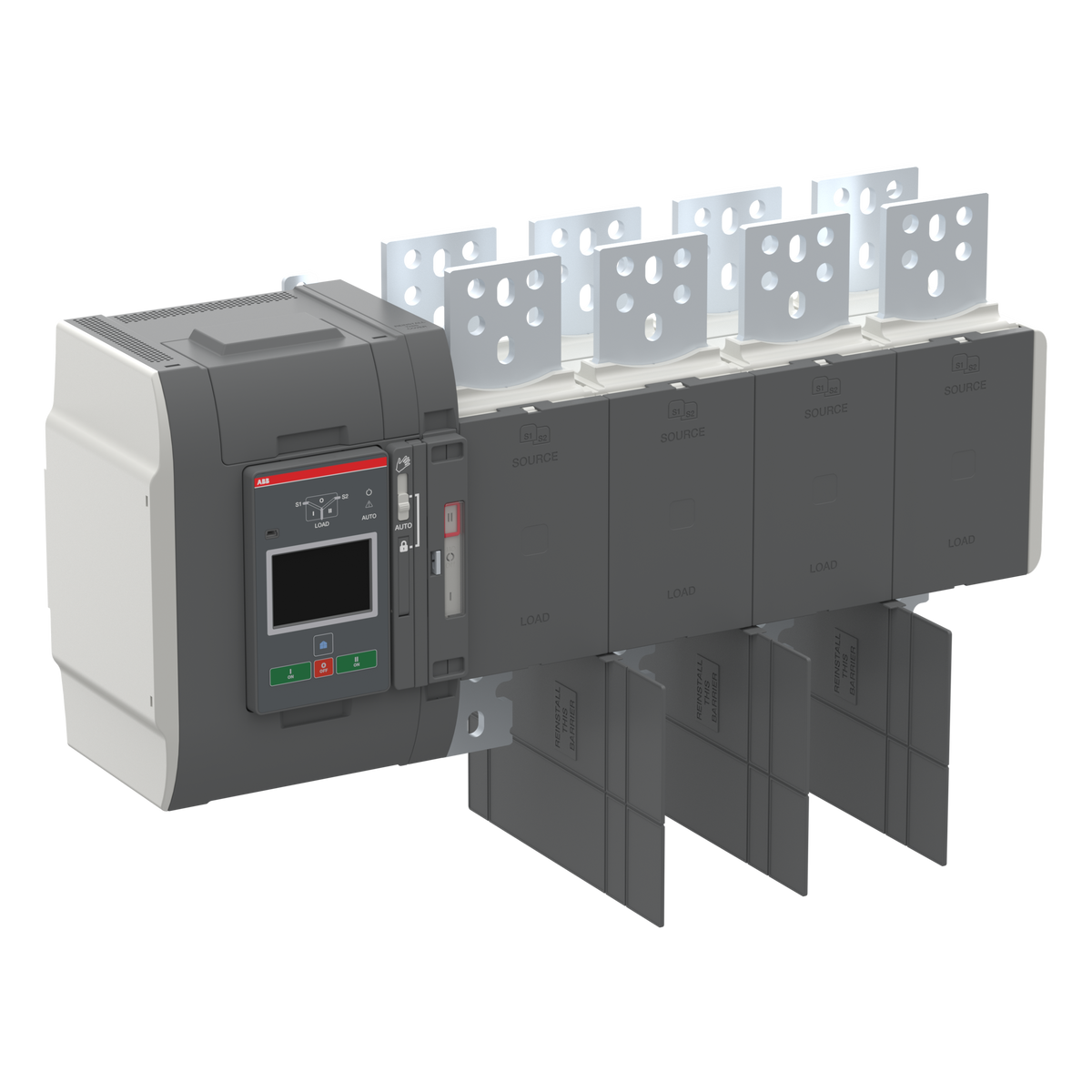

ABB OXB1000E3S4QT TruONE automatic transfer switch - 1000A 4P
ABB OXB1000E3S4QT TruONE automatic transfer switch - 1000A 4P

ABB 1SCA153581R1001 OXB1000E3S4QT 4P Level 4 (Touch) Controller Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA153581R1001
Catalog No: OXB1000E3S4QT
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 1000
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$9,345.48

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 1SCA153581R1001 (OXB1000E3S4QT) mirrors the Level 4 touchscreen-controlled, 1000 A, 4-pole TruONE switch with top-in, bottom-out line terminals instead of bottom-in, top-out. It is rated 200-480 V AC with +/-20% tolerance, withstands 65 kA for 0.1 s, and uses the same open-style, delayed I-O-II transfer logic found across the TruONE range.

Technical Specifications

Catalog No OXB1000E3S4QT
SKU 1SCA153581R1001
Brand ABB
Series Automatic Transfer Switches TruONE
EAN 6417019846071
Degree of Protection Front IP20
Pollution Degree 3
Net Width 712 mm
Net Height 359 mm
Net Depth 212 mm
Net Weight 37.58 kg
Controller Type Level 4 (Touch)
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Fourth Pole Position Left and Right Side
Conventional Free-air Thermal Current (Ith) 1000 A at 40 degrees C
Position of Line Terminals Supplies on Top - Load on Bottom
Rated Operational Voltage (Main Circuit) 200...480 V AC
Rated Frequency 50-60 Hz
Rated Operational Current AC-31B (Ie) 1000 A (200-415 V AC)
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-time Withstand Current (Icw) 65 kA for 0.1 s
Power Loss 14 W per pole, 42 W total
Terminal Type Bolt
Transition Type Delayed (open style, I-O-II)
Handle Type Direct Mount

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

With line power entering from the top and load leaving from the bottom, this QT unit suits switchgear with overhead cable routing, the reverse of its QB sibling. It carries the same Level 4 touchscreen controller as the rest of the top-tier TruONE line, giving full graphical setup and status over the DIP-switch or LCD alternatives. Use it only where that configuration depth is actually needed, since the Level 2 and 3 controllers cost less for basic transfer duty.

Technical Details

Short Description
ABB OXB1000E3S4QT TruONE ATS, 4P, 1000 A, 200-480 V AC, Icw 65 kA/0.1s, Level 4 touchscreen controller.
Rated Current (Ampere)
1000
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB1000E3S4QT
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB1000E3S4QT
Tariff Code
853650
