ABB 1SCA153579R1001 OXB1000E3S3QB 4P Level 3 (LCD) Controller Automatic Transfer Switch

% $-7,787.23

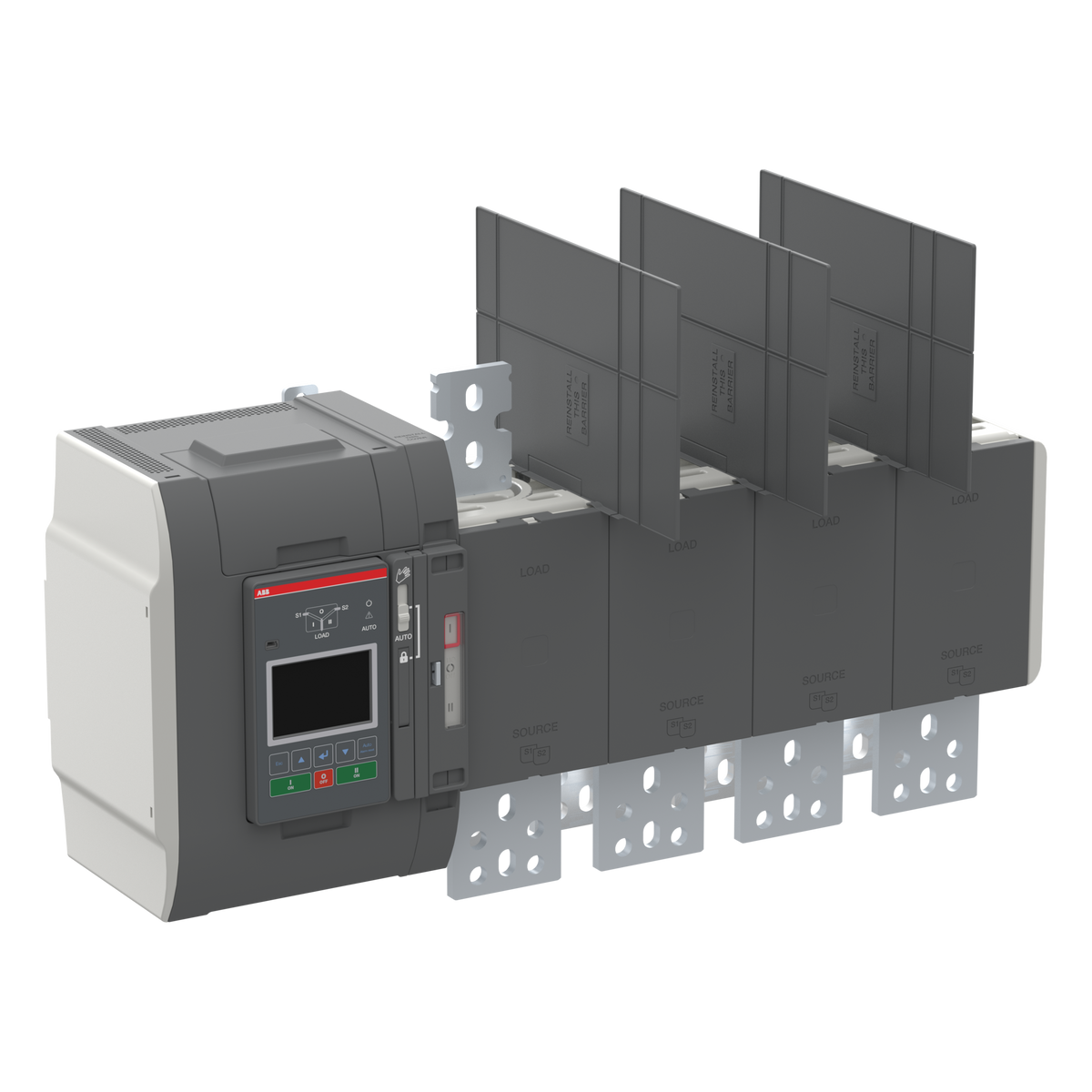

ABB OXB1000E3S3QB TruONE automatic transfer switch - 1000A 4P
ABB OXB1000E3S3QB TruONE automatic transfer switch - 1000A 4P

ABB 1SCA153579R1001 OXB1000E3S3QB 4P Level 3 (LCD) Controller Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA153579R1001
Catalog No: OXB1000E3S3QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 1000
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$7,787.23

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA153579R1001 (OXB1000E3S3QB) is a 1000 A, 4-pole TruONE automatic transfer switch fitted with a Level 3 LCD controller for on-screen transfer status and settings, in the bottom-supply, top-load terminal layout. It is rated 200-480 V AC (+/-20%), withstands 65 kA for 0.1 s, and switches with a delayed open-style I-O-II transition.

Technical Specifications

Catalog No OXB1000E3S3QB
SKU 1SCA153579R1001
Brand ABB
Series Automatic Transfer Switches TruONE
EAN 6417019846057
Degree of Protection Front IP20
Pollution Degree 3
Net Width 712 mm
Net Height 359 mm
Net Depth 212 mm
Net Weight 37.08 kg
Controller Type Level 3 (LCD)
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Fourth Pole Position Left and Right Side
Conventional Free-air Thermal Current (Ith) 1000 A at 40 degrees C
Position of Line Terminals Supplies on Bottom - Load on Top
Rated Operational Voltage (Main Circuit) 200...480 V AC
Rated Frequency 50-60 Hz
Rated Operational Current AC-31B/32B/33B (Ie) 1000 A (200-415 V AC)
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-time Withstand Current (Icw) 65 kA for 0.1 s
Power Loss 14 W per pole, 42 W total
Terminal Type Bolt
Transition Type Delayed (open style, I-O-II)
Handle Type Direct Mount

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

The Level 3 LCD controller adds an on-screen display for transfer status and parameter settings that the Level 2 DIP-switch version lacks, useful where panel technicians need to read switch state without a meter or laptop. QB routes supply in from the bottom and load out the top; pick the QT sibling where the opposite cable routing is already built into the switchgear. Step up to the Level 4 touchscreen controller only if full graphical navigation or data logging is required.

Technical Details

Short Description
ABB OXB1000E3S3QB TruONE ATS, 4P, 1000 A, 200-480 V AC, Icw 65 kA/0.1s, Level 3 LCD controller.
Rated Current (Ampere)
1000
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB1000E3S3QB
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB1000E3S3QB
Tariff Code
853650
