ABB 1SCA153577R1001 OXB1000E3S2QB 4P Level 2 (DIP) Controller Automatic Transfer Switch

% $-6,254.85

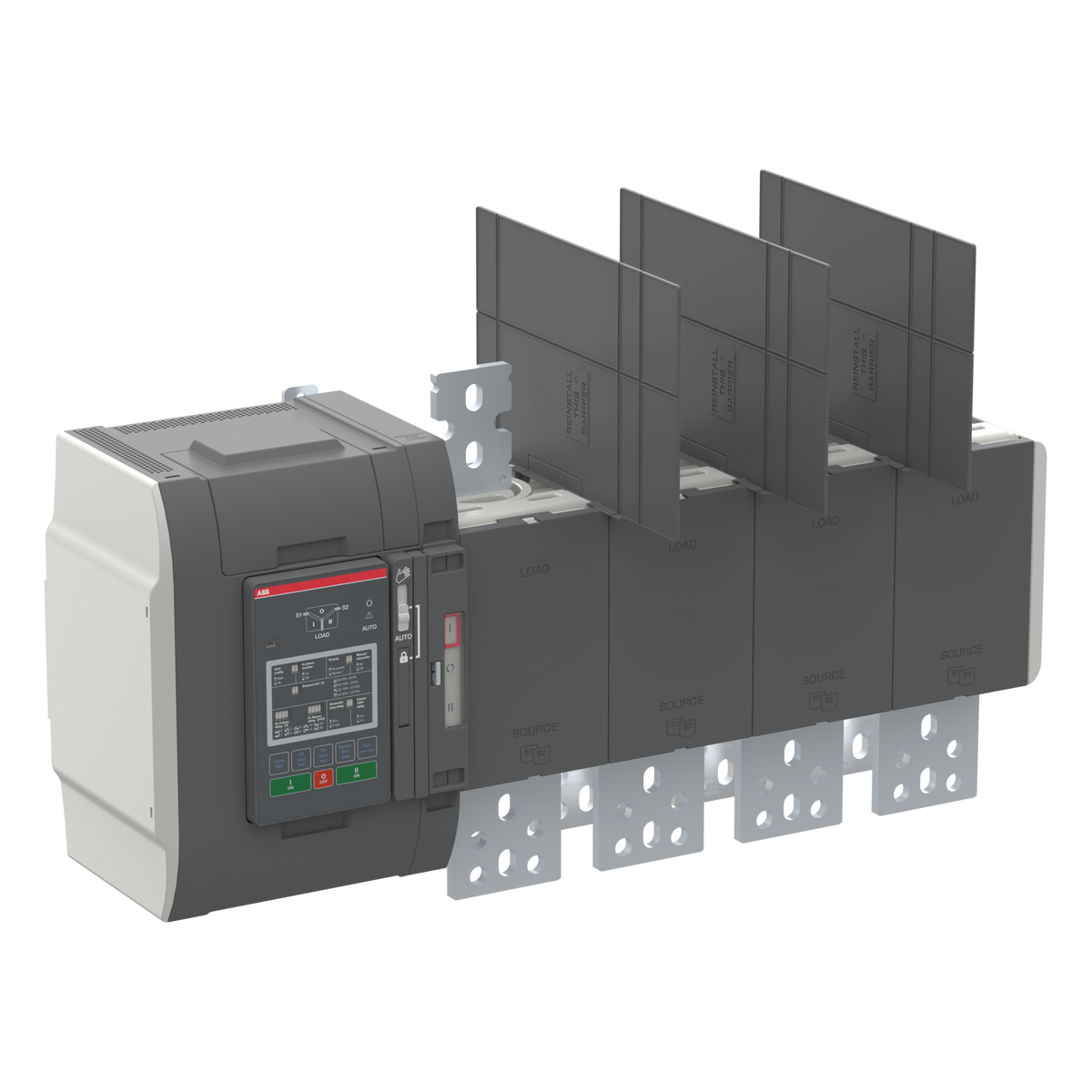

ABB OXB1000E3S2QB TruONE automatic transfer switch - 1000A 4P
ABB OXB1000E3S2QB TruONE automatic transfer switch - 1000A 4P

ABB 1SCA153577R1001 OXB1000E3S2QB 4P Level 2 (DIP) Controller Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA153577R1001
Catalog No: OXB1000E3S2QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 1000
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6,254.85

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA153577R1001 (OXB1000E3S2QB) is a 1000 A, 4-pole TruONE automatic transfer switch with an open-style, delayed I-O-II transition and a Level 2 DIP-switch controller built into the switch body. Rated 200-480 V AC with +/-20% tolerance and Icw 65 kA for 0.1 s, it feeds line power in on the bottom and sends load out on top.

Technical Specifications

Catalog No OXB1000E3S2QB
SKU 1SCA153577R1001
Brand ABB
Series Automatic Transfer Switches TruONE
EAN 6417019846033
Degree of Protection Front IP20
Pollution Degree 3
Net Width 712 mm
Net Height 359 mm
Net Depth 212 mm
Net Weight 37.08 kg
Controller Type Level 2 (DIP)
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Fourth Pole Position Left and Right Side
Conventional Free-air Thermal Current (Ith) 1000 A at 40 degrees C
Position of Line Terminals Supplies on Bottom - Load on Top
Rated Operational Voltage (Main Circuit) 200...480 V AC
Rated Frequency 50-60 Hz
Rated Operational Current AC-31B/32B/33B (Ie) 1000 A (200-415 V AC)
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-time Withstand Current (Icw) 65 kA for 0.1 s
Power Loss 14 W per pole, 42 W total
Terminal Type Bolt
Transition Type Delayed (open style, I-O-II)
Handle Type Direct Mount

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

DIP-switch setup on the Level 2 controller is enough when the transfer parameters rarely change and no event log or remote monitoring is needed. Choose the bottom-supply, top-load (QB) terminal layout when upstream cabling runs below the switch; its QT sibling reverses that for top-fed installations. Move up to the Level 3 LCD or Level 4 touchscreen controller when the application needs on-screen status or more detailed transfer-timing adjustment.

Technical Details

Short Description
ABB OXB1000E3S2QB TruONE ATS, 4P, 1000 A, 200-480 V AC, Icw 65 kA/0.1s, Level 2 DIP controller.
Rated Current (Ampere)
1000
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB1000E3S2QB
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB1000E3S2QB
Tariff Code
853650
