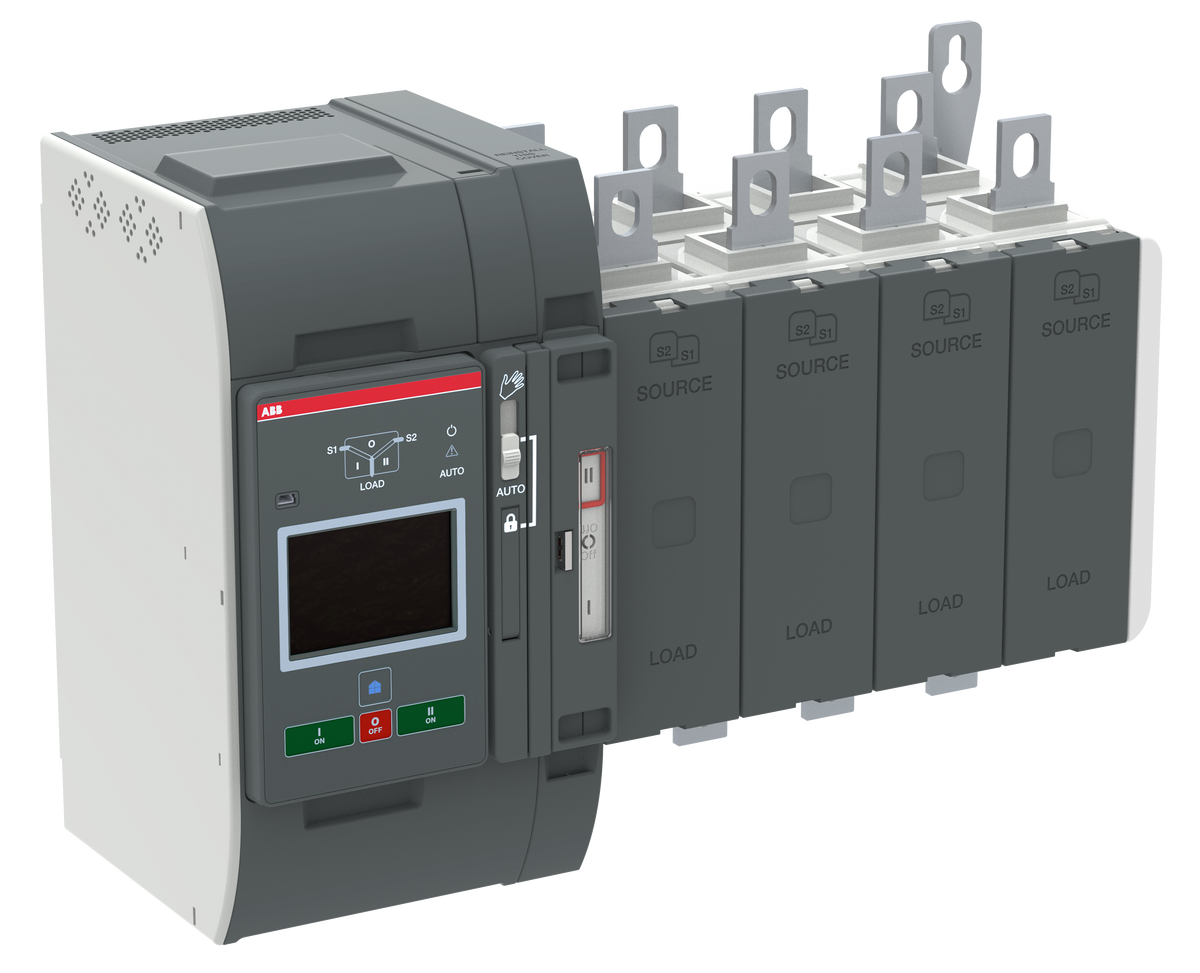

Switching two independent AC sources at 400 A, the ABB 1SCA153519R1001 (OXB400E3S4QT) is a four-pole TruONE automatic transfer switch rated 200 to 480 V AC with a Level 4 touchscreen controller for the delayed I-O-II sequence. The top-supply / bottom-load terminal arrangement fits switchboards fed from an overhead riser.
This 400 A frame carries Icw of 25 kA for 0.3 s and Uimp of 12 kV, above the 250 A chassis, worth weighing against upstream fault levels before specifying the lighter frame. The 4P configuration switches the neutral with the phases, needed where the two sources must not share a bonded neutral during transfer. As the Level 4 touch unit, it offers the fullest local HMI of the three controller tiers on this 400 A S-series frame, ahead of the DIP-switch and LCD-display options. QT terminals bring supply in from the top and send load out the bottom, the reverse of the QB layout, for cabling that drops from above.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
| Product Net Width | 455 mm, 17.91 in |
|---|---|
| Product Net Height | 305 mm, 12.01 in |
| Product Net Depth / Length | 183 mm, 7.2 in |
| Product Net Weight | 17.78 kg, 39.2 lb |
| Part number | 1SCA153519R1001 |
|---|---|
| Type designation | OXB400E3S4QT |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019845456 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Controller Type | Level 4 (Touch) |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Fourth Pole Position | Left and Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Number of Poles | 4P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 20.3 W, Total 60.9 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 415 V AC) 400 A |
| Rated Operational Current AC-32B (Ie) | (200 … 415 V AC) 400 A |
| Rated Operational Current AC-33B (Ie) | (200 … 415 V AC) 400 A |
| Rated Operational Voltage | Main Circuit 200...480 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 25 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 345 mm, 13.58 in |
| Package Level 1 Depth / Length | 565 mm, 22.24 in |
| Package Level 1 Height | 240 mm, 9.45 in |
| Package Level 1 Gross Weight | 18.58 kg, 40.96 lb |
| Package Level 1 EAN | 6417019845456 |
| Shipping weight | 17.78 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
