ABB 1SCA153515R1001 OXB400E3S2QB 400A 4P Level 2 DIP Automatic Transfer Switch

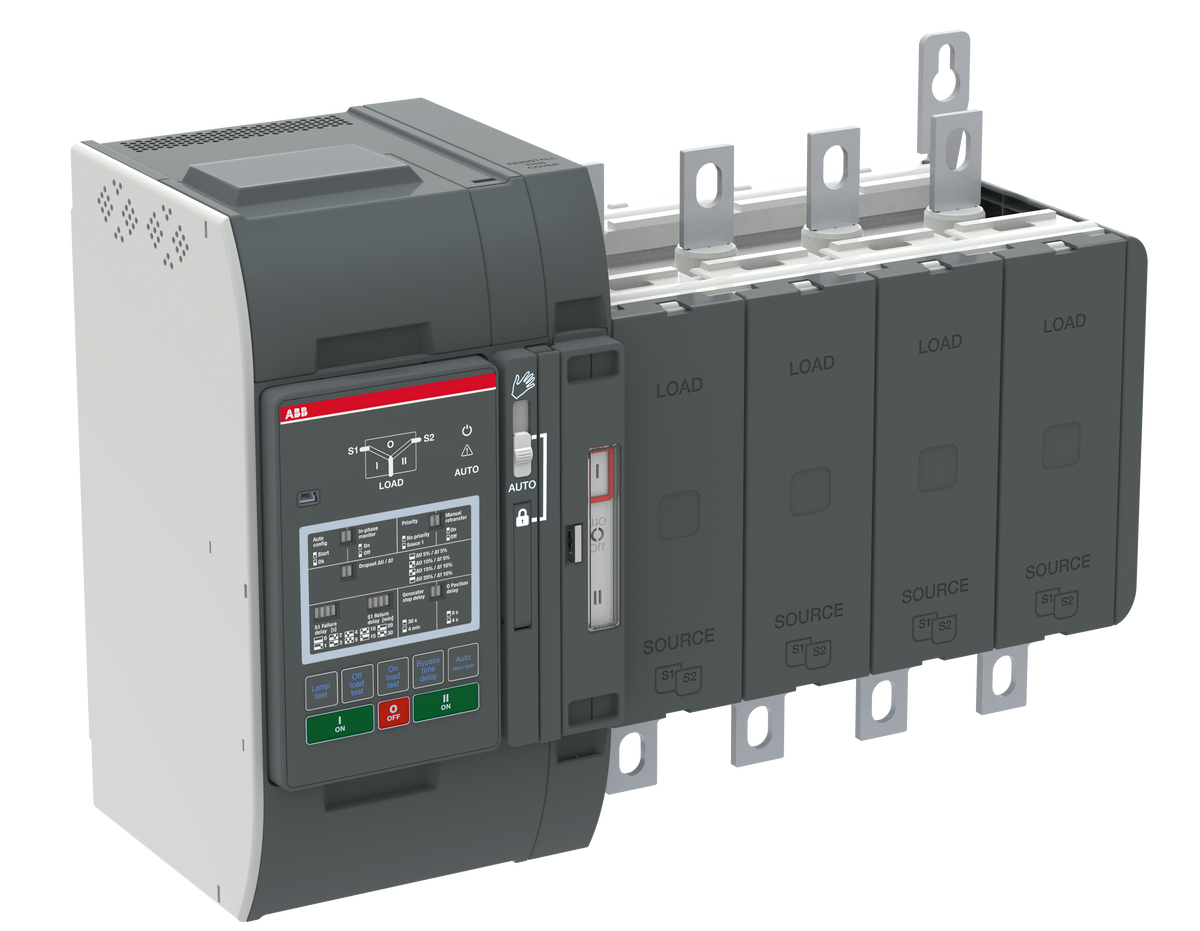

The ABB 1SCA153515R1001 (OXB400E3S2QB) is a TruONE open-style automatic transfer switch rated 400 A across four poles, switching between two AC sources from 200 to 480 V. A Level 2 DIP-switch controller sets the delayed I-O-II transfer sequence, and the bottom-supply / top-load terminal layout suits switchboards fed from below.

Technical Specifications

Certifications & Standards

• IEC 60947-6-1

Selection Notes
